Hybrid Actuators for Testing Applications

Kyntronics Hybrid Servo Electro-Hydraulic Actuators for Testing Applications

Redefining Motion Control in Test Labs

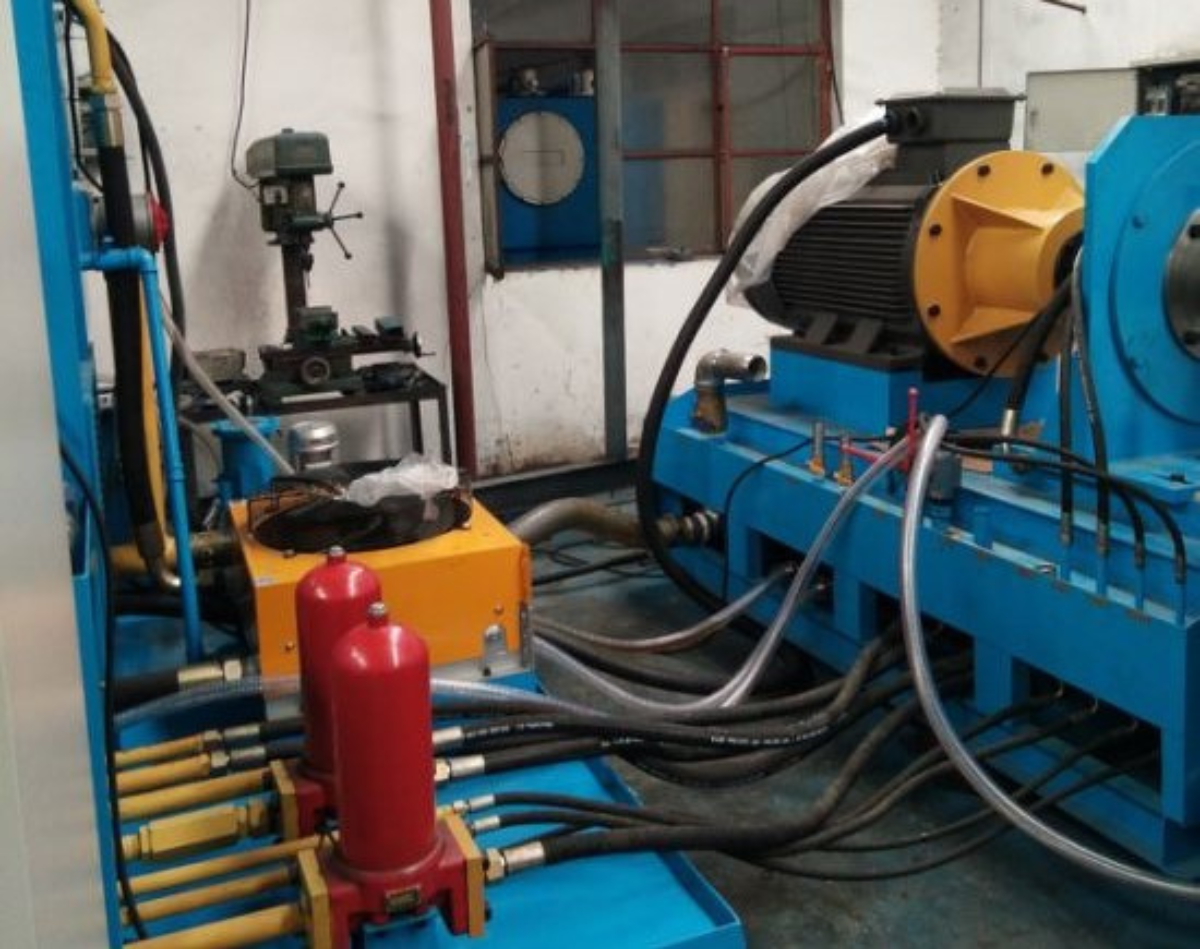

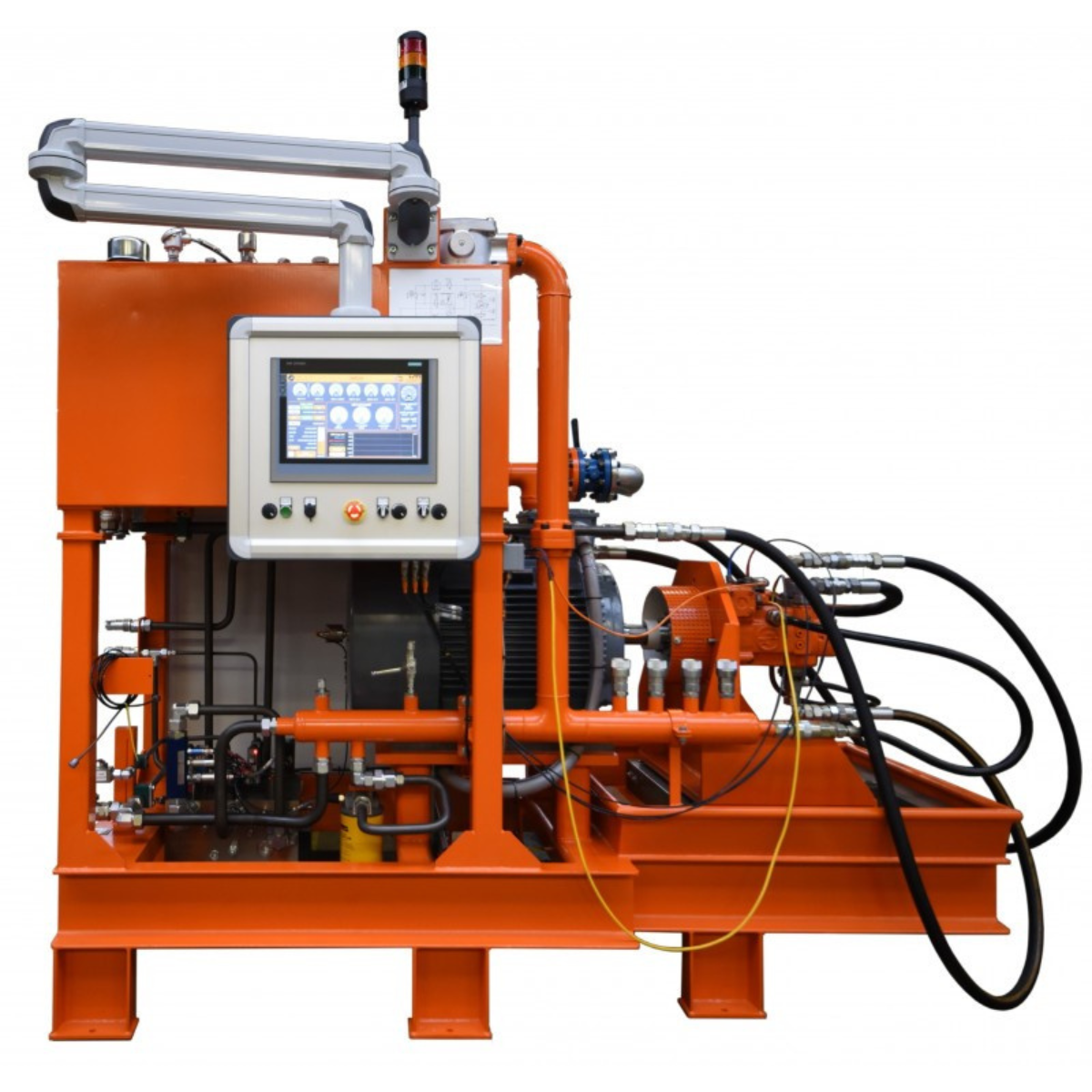

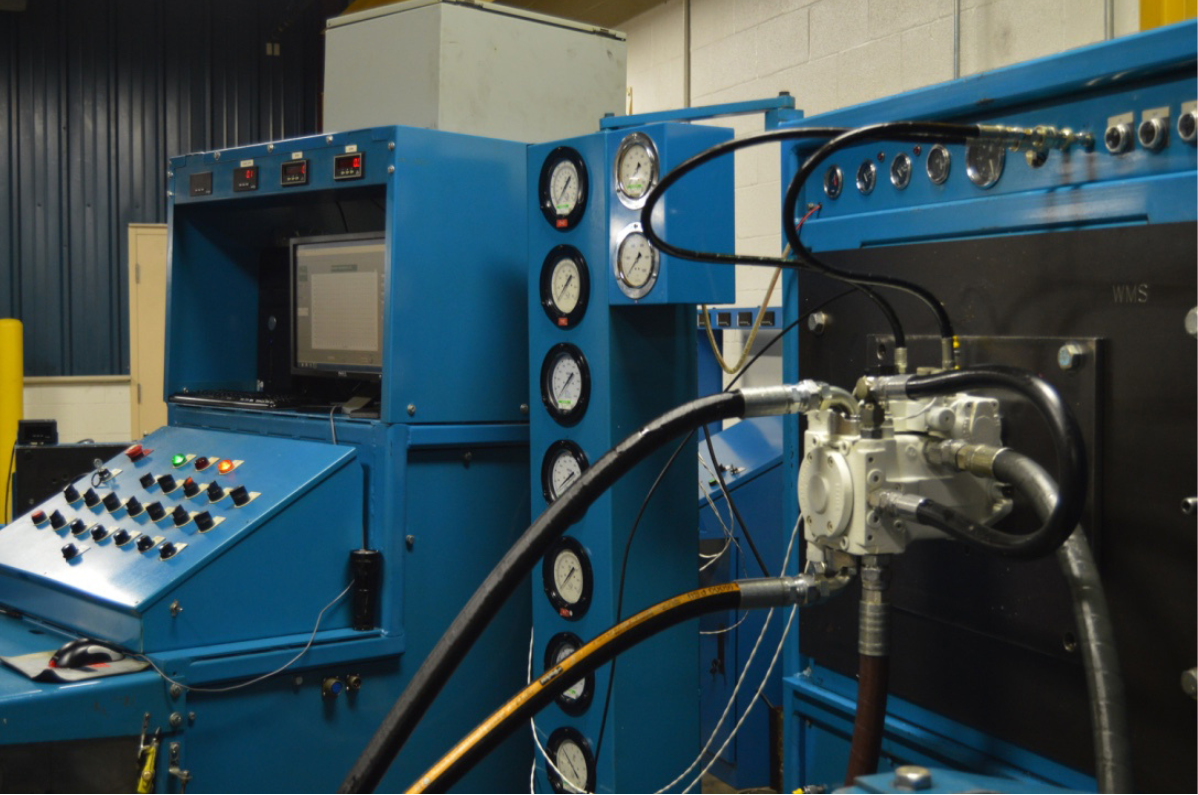

Replace Large, Noisy, Leaky and Inefficient Hydraulic Systems with… the Hybrid Servo Electro-Hydraulic Actuator (SHA) from Kyntronics. Test labs require precise, reliable, and efficient systems to maintain accuracy and repeatability. However, traditional hydraulics often struggle to meet these demands—causing maintenance issues, downtime, and long changeover periods.



Kyntronics’ Hybrid Electro-Hydraulic Actuator (SHA) technology addresses these challenges by combining the power and force of hydraulics with the precision and efficiency of electric control—without the drawbacks of conventional systems.

Read Kyntronics’ Insights 5 WAYS TO IMPROVE YOUR TEST LAB WITH HYBRID ACTUATION TECHNOLOGY and learn what makes Kyntronics different than traditional hydraulics

Advantages of Kyntronics SHA vs. Traditional Hydraulics

  • Total Solution: Actuator, Motor, Control, Software… Small Footprint
  • Replaces expensive, Complex Servo Hydraulics with an ‘All-Electric’ Solution
  • No hoses, No leaks, Environmentally Friendly
  • Power on Demand Reduces Energy Usage and Cost
  • Precise Control of Position, Force and Speed
  • Quiet Operation, eliminates the need for a separate HPU room
  • Interfaces with Popular Data Acquisition Software

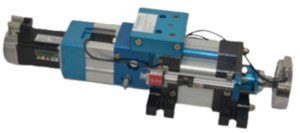

Hybrid Servo Electro-Hydraulic Actuator

Kyntronics – Hybrid Servo Electro-Hydraulic Actuator Application Examples

Power Generation – Bearing Load Testing

  • Eliminated hydraulics
  • Up to 150,000 lbf
  • 4” stroke
  • Fully programmable position and force

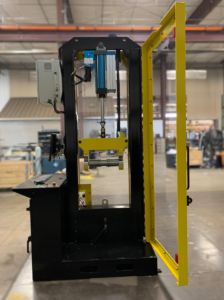

Military / Aerospace – Load Test

  • Eliminated hydraulics
  • Up to 20,000 lbf
  • 12” stroke
  • Fully programmable position and force

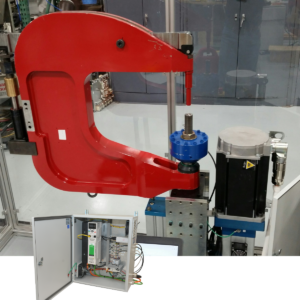

Industrial – C-Frame Fatigue Test

  • Frequency Testing (3-5 Hz)
  • Closed Loop Force with Load Cell
  • Amplitude Adjustment
  • Ethernet IP




EV – Battery Frame Crush Test

  • Customer-supplied load cell
  • 6” stroke
  • Up to 12,000 lbf

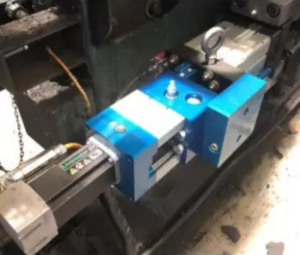

Automotive Tire – Camber Test

  • Eliminated hydraulics
  • Up to 10,000 lbf
  • 4” stroke
  • Fully programmable position and force

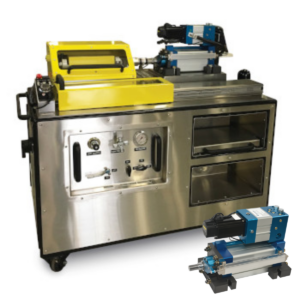

Military / Aerospace – Performance Test Stand

  • Test range from 50 lbf to 14,000 lbf
  • Eliminated HPU
  • 6” stroke
