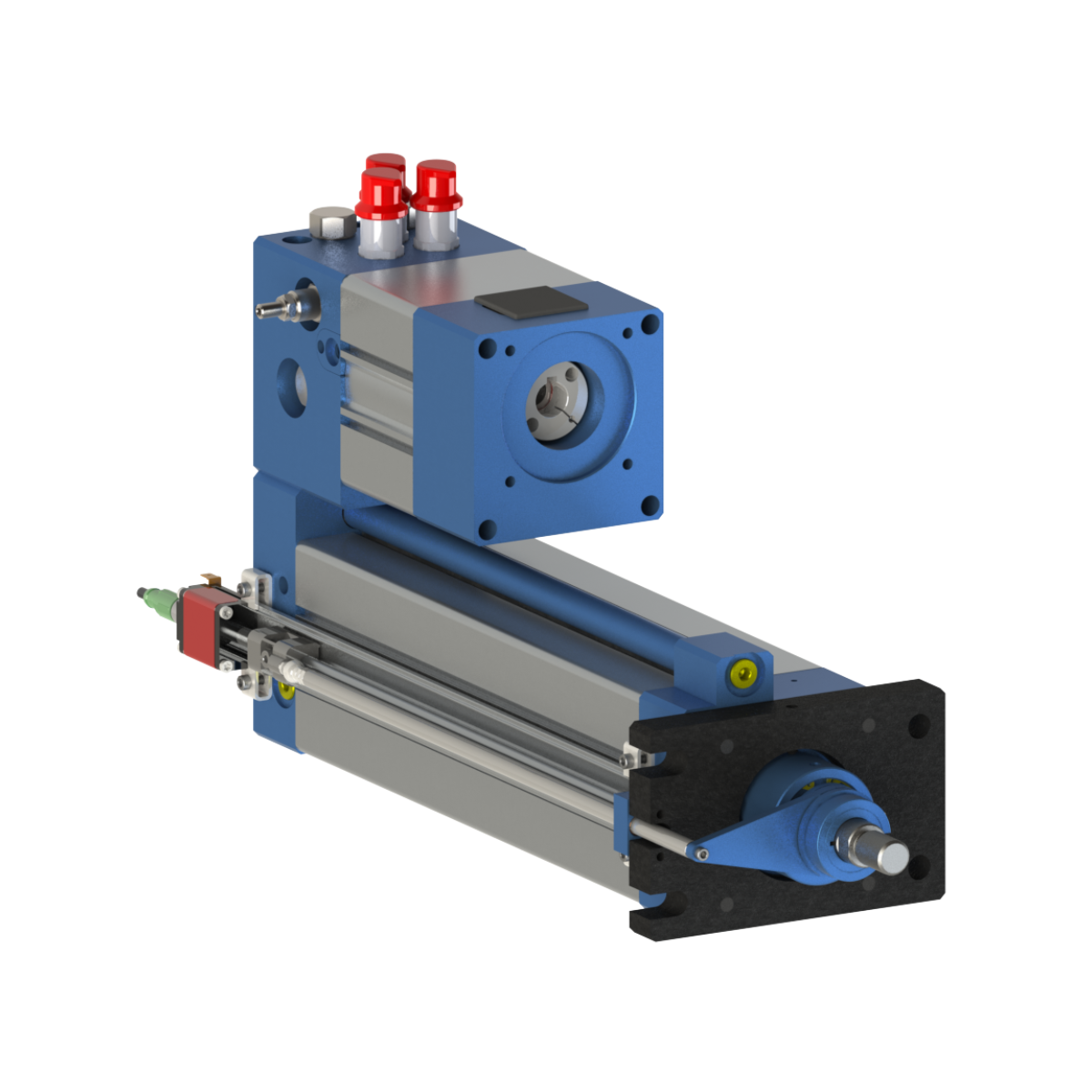

SHA Actuator Only

Hybrid Linear Actuators

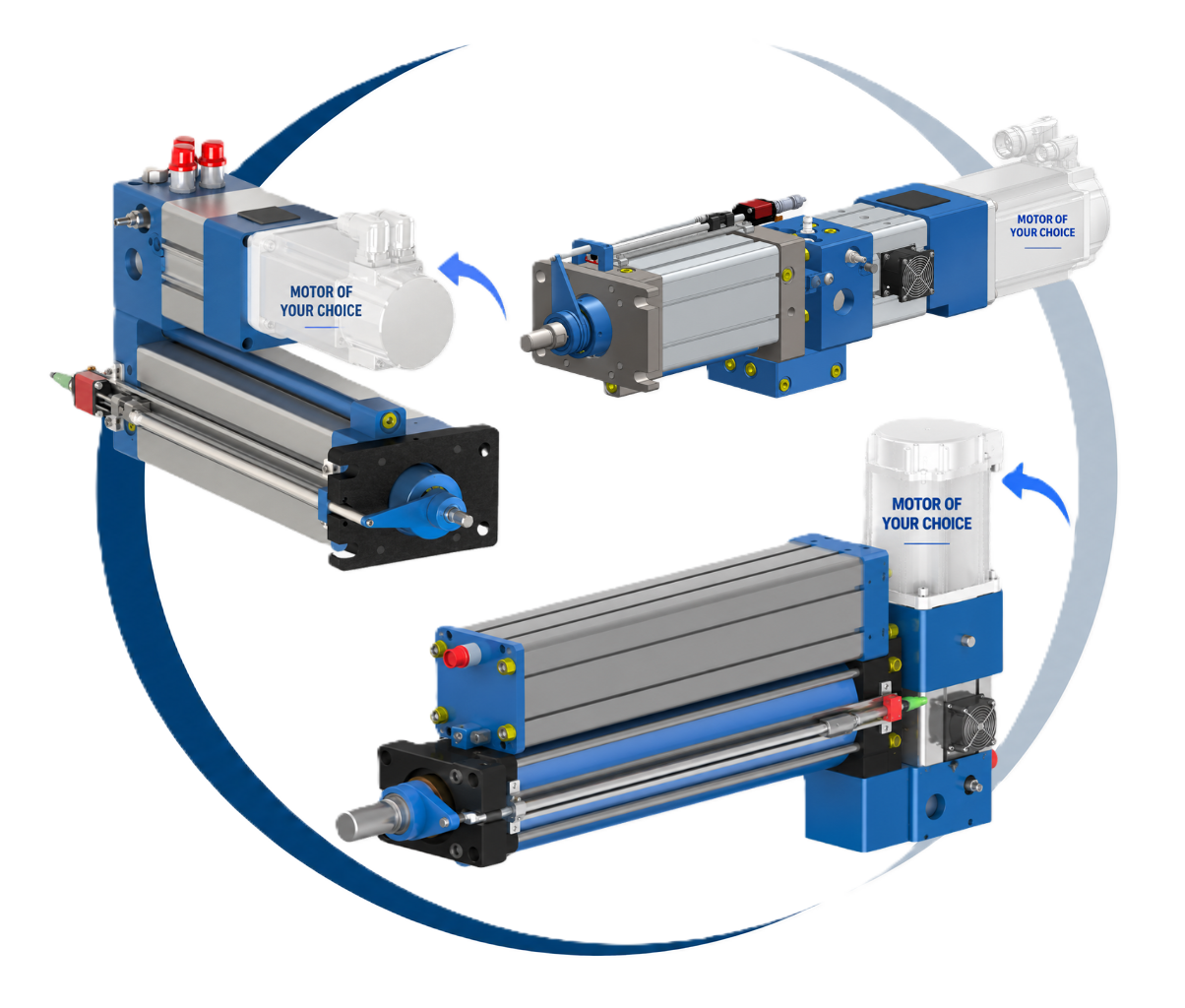

Connects to the Motor and Drive of Your Choice

Benefits

Totally Sealed Design
Shock Load Tolerant
Energy Efficient
Precise Servo Control
Environmentally Friendly
Minimal Maintenance
No Metal-to-Metal Wear

Key Features

Up to 150,000 Lbs (667 kN) of force
Up to 34.5 IN/S (877 mm/S) cycle speed
Up to 120 IN (3,048 mm) stroke length

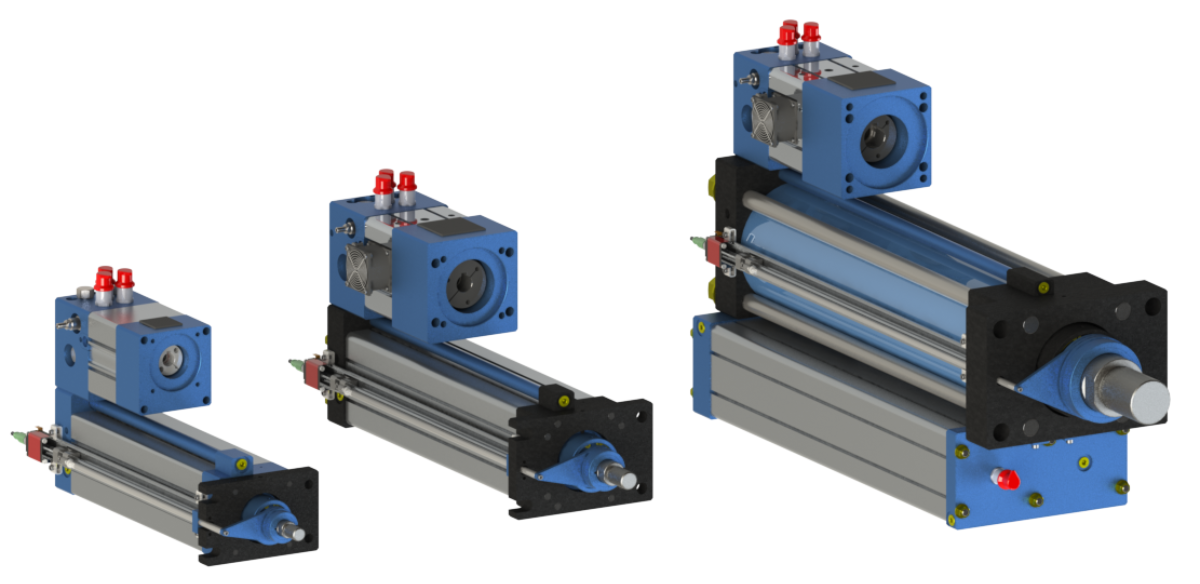

The SHA Series Actuator Only is an electric linear actuator that incorporates proven technologies and uses the motor and drive of your choice.

Overview
Actuator Specifications and CAD Models
Design Features and Options
Mounting & Configuration Options
Motor Mounting Information

Overview of SHA Series Actuator Only Performance Ratings

Specifications based on the cylinder and the largest pump size

ModelBore Size in (mm)Rod Size in (mm)Frame Size in (mm)Maximum Force* lbf (kN)Maximum Speed in/s (mm/s)Maximum Stroke** in (mm)
SHA101 (25.4)0.63 (15.88)4.5 x 4.5 (114 x 114)2,356 (10.4)56.69 (1439.9)60.0 (1524)
SHA151.5 (38.1)1 (25.4)4.5 x 4.5 (114 x 114)5,301 (23.5)27.64 (702.1)60.0 (1524)
SHA202 (50.80)1 (25.4)4.5 x 4.5 (114 x 114)9,425 (41.9)11.51 (292.4)60.0 (1524)
SHA252.5 (63.5)1.38 (34.93)5.5 x 5.5 (140 x 140)14,726 (65.5)7.92 (201.2)60.0 (1524)
SHA323.25 (82.55)1.38 (34.93)5.5 x 5.5 (140 x 140)24,887 (110.7)3.98 (101.1)60.0 (1524)
SHA404 (101.6)2 (50.8)11.5 x 5.5 (292 x 140)37,699 (167.6)2.88 (73.2)60.0 (1524)
SHA505 (127.0)3 (76.2)12.9 x 10.7 (328 x 272)58,905 (262)2.16 (54.9)60.0 (1524)
SHA606 (152.4)3.5 (88.9)13.9 x 10.7 (353 x 272)84,823 (377.3)1.45 (36.8)60.0 (1524)
SHA808 (203.2)4 (101.6)21.3 x 10.7 (541 x 272)150,796 (670.7)0.72 (18.3)60.0 (1524)

* Maximum force only in extend

** Longer strokes up to 120in (3048mm available). Contact Kyntronics.

Specifications and CAD Models for the SHA Series Actuator Only

To choose a CAD model, you must first identify the force and speed closest to your application requirements.
SHA Series Actuator Only Specifications and CAD Models:

Series / Model Number Alpha-Numeric Designation: SHAxxPyyM0Z

First Three Letters: designates the product series

SHA-Series

SPU-Series

SHAxx: designates the cylinder size – for example

SHA10 is a 1in cylinder

SHA32 is a 3.25in cylinder

SHA60 is a 6in cylinder



yy: designates the pump size, which correlates to flow/speed



Series No./CADModelPumpMotorExtend Force
(lbf)		Retract Force
(lbf)		Extend Speed
(in/s)		Retract Speed
(in/s)		Max Cylinder Capacity
Extend (lbf)		Max Cylinder Capacity
Retract (lbf)		Input Torque @ Rated Forces (in-lbf)Input RPM @ Rated Linear Speeds (rpm)
SHA10P02M0ZSHA10P02M0Z235614350.841.38235614369.6815550003000
SHA10P05M0ZSHA10P05M0Z235614351.963.212356143622.590294003000
SHA10P07M0ZSHA10P07M0Z235614353.225.282356143637.112626003000
SHA10P11M0ZSHA10P11M0Z235614355.178.492356143659.702920003000
SHA10P13M0ZSHA10P13M0Z204012437.9713.082356143679.638595003000
SHA10P21M0ZSHA10P21M0Z235614359.0914.9223561436104.88350903000
SHA10P23M0ZSHA10P23M0Z2356143510.9117.923561436125.86021003000
SHA10P27M0ZSHA10P27M0Z2356143514.5523.8723561436167.81361403000
SHA10P31M0ZSHA10P31M0Z2356143520.4533.5723561436235.98789403000
SHA10P34M0ZSHA10P34M0Z2356143526.3643.2623561436304.16217503000
SHA10P36M0ZSHA10P36M0Z1988121134.5456.6923561436336.30389503000
SHA15P02M0ZSHA15P02M0Z530129450.370.67530129459.6815550003000
SHA15P05M0ZSHA15P05M0Z530129450.871.575301294522.590294003000
SHA15P07M0ZSHA15P07M0Z530129451.432.575301294537.112626003000
SHA15P11M0ZSHA15P11M0Z530129452.34.145301294559.702920003000
SHA15P13M0ZSHA15P13M0Z459125503.546.385301294579.655945003000
SHA15P21M0ZSHA15P21M0Z530129454.047.2753012945104.88350903000
SHA15P23M0ZSHA15P23M0Z530129454.858.7353012945125.86021003000
SHA15P27M0ZSHA15P27M0Z530129456.4611.6453012945167.81361403000
SHA15P31M0ZSHA15P31M0Z530129459.0916.3653012945235.98789403000
SHA15P34M0ZSHA15P34M0Z5301294511.7221.0953012945304.16217503000
SHA15P36M0ZSHA15P36M0Z4473248515.3527.6453012945336.30389503000
SHA20P02M0ZSHA20P02M0Z942470680.210.28942570699.6815550003000
SHA20P05M0ZSHA20P05M0Z942470680.490.659425706922.590294003000
SHA20P07M0ZSHA20P07M0Z942470680.81.079425706937.112626003000
SHA20P11M0ZSHA20P11M0Z942470681.291.729425706959.702920003000
SHA20P13M0ZSHA20P13M0Z816161211.992.669425706979.648354003000
SHA20P21M0ZSHA20P21M0Z942470682.273.0394257069104.88350903000
SHA20P23M0ZSHA20P23M0Z942470682.733.6494257069125.86021003000
SHA20P27M0ZSHA20P27M0Z942470683.644.8594257069167.81361403000
SHA20P31M0ZSHA20P31M0Z942470685.116.8294257069235.98789403000
SHA20P34M0ZSHA20P34M0Z942470686.598.7994257069304.16217503000
SHA20P36M0ZSHA20P36M0Z795259648.6411.5194257069336.30389503000
SHA25P02M0ZSHA25P02M0Z14726102710.130.1914726102729.6822120003000
SHA25P05M0ZSHA25P05M0Z14726102710.310.45147261027222.591828003000
SHA25P07M0ZSHA25P07M0Z14726102710.510.74147261027237.115146003000
SHA25P11M0ZSHA25P11M0Z14726102710.831.19147261027259.706975003000
SHA25P13M0ZSHA25P13M0Z1275288951.281.83147261027279.651087003000
SHA25P21M0ZSHA25P21M0Z14726102711.452.091472610272104.89063103000
SHA25P23M0ZSHA25P23M0Z14726102711.752.51472610272125.86875803000
SHA25P27M0ZSHA25P27M0Z14726102712.333.341472610272167.82501003000
SHA25P31M0ZSHA25P31M0Z14726102713.274.691472610272236.00392003000
SHA25P34M0ZSHA25P34M0Z14726102714.226.051472610272304.18283103000
SHA25P36M0ZSHA25P36M0Z1242586675.537.921472610272336.30389503000
SHA32P02M0ZSHA32P02M0Z24887204320.080.124887204339.6822350003000
SHA32P05M0ZSHA32P05M0Z24887204320.190.23248872043322.591883003000
SHA32P07M0ZSHA32P07M0Z24887204320.30.37248872043337.115236003000
SHA32P11M0ZSHA32P11M0Z24887204320.490.6248872043359.707119003000
SHA32P13M0ZSHA32P13M0Z21552176940.750.92248872043379.655226003000
SHA32P21M0ZSHA32P21M0Z24887204320.861.052488720433104.89088403000
SHA32P23M0ZSHA32P23M0Z24887204321.031.262488720433125.86906103000
SHA32P27M0ZSHA32P27M0Z24887204321.381.682488720433167.82541503000
SHA32P31M0ZSHA32P31M0Z24887204321.942.362488720433236.00449003000
SHA32P34M0ZSHA32P34M0Z24887204322.53.042488720433304.18356403000
SHA32P36M0ZSHA32P36M0Z20999172403.273.982488720433336.31590703000
SHA40P02M0ZSHA40P02M0Z37699282740.050.0737699282749.682325003000
SHA40P05M0ZSHA40P05M0Z37699282740.120.16376992827422.592092003000
SHA40P07M0ZSHA40P07M0Z37699282740.20.27376992827437.115580003000
SHA40P11M0ZSHA40P11M0Z37699282740.320.43376992827459.707672003000
SHA40P13M0ZSHA40P13M0Z32647244850.50.66376992827479.655674003000
SHA40P21M0ZSHA40P21M0Z37699282740.570.763769928274104.89185603000
SHA40P23M0ZSHA40P23M0Z37699282740.680.913769928274125.87022703000
SHA40P27M0ZSHA40P27M0Z37699282740.911.213769928274167.82696903000
SHA40P31M0ZSHA40P31M0Z37699282741.281.73769928274236.00667503000
SHA40P34M0ZSHA40P34M0Z37699282741.652.23769928274304.18638103000
SHA40P36M0ZSHA40P36M0Z31810238572.162.883769928274336.32504103000
SHA50P02M0ZSHA50P02M0Z58904376990.030.0558905376999.6822120003000
SHA50P05M0ZSHA50P05M0Z58904376990.080.12589053769922.591828003000
SHA50P07M0ZSHA50P07M0Z58904376990.130.2589053769937.115146003000
SHA50P11M0ZSHA50P11M0Z58904376990.210.32589053769959.706975003000
SHA50P13M0ZSHA50P13M0Z51011326470.320.5589053769979.655772003000
SHA50P21M0ZSHA50P21M0Z58904376990.360.575890537699104.89063103000
SHA50P23M0ZSHA50P23M0Z58904376990.440.685890537699125.86875803000
SHA50P27M0ZSHA50P27M0Z58904376990.580.915890537699167.82501003000
SHA50P31M0ZSHA50P31M0Z58904376990.821.285890537699236.00392003000
SHA50P34M0ZSHA50P34M0Z58904376991.051.655890537699304.18283103000
SHA50P36M0ZSHA50P36M0Z49703318101.382.165890537699336.32419503000
SHA60P02M0ZSHA60P02M0Z84823559590.020.0484823559609.6823540003000
SHA60P05M0ZSHA60P05M0Z84823559590.050.08848235596022.592159003000
SHA60P07M0ZSHA60P07M0Z84823559590.090.14848235596037.115689003000
SHA60P11M0ZSHA60P11M0Z84823559590.140.22848235596059.707848003000
SHA60P13M0ZSHA60P13M0Z73456484610.220.34848235596079.655945003000
SHA60P21M0ZSHA60P21M0Z84823559590.250.388482355960104.89216503000
SHA60P23M0ZSHA60P23M0Z84823559590.30.468482355960125.87059803000
SHA60P27M0ZSHA60P27M0Z84823559590.40.618482355960167.82746403000
SHA60P31M0ZSHA60P31M0Z84823559590.570.868482355960236.00737103000
SHA60P34M0ZSHA60P34M0Z84823559590.731.118482355960304.18727803000
SHA60P36M0ZSHA60P36M0Z71573472180.961.458482355960336.32739003000
SHA80P02M0ZSHA80P02M0Z1507961130970.010.021507961130979.682325003000
SHA80P05M0ZSHA80P05M0Z1507961130970.030.0415079611309722.592092003000
SHA80P07M0ZSHA80P07M0Z1507961130970.050.0715079611309737.115580003000
SHA80P11M0ZSHA80P11M0Z1507961130970.080.1115079611309759.707672003000
SHA80P13M0ZSHA80P13M0Z130589979420.120.1715079611309779.65628403000
SHA80P21M0ZSHA80P21M0Z1507961130970.140.19150796113097104.89185603000
SHA80P23M0ZSHA80P23M0Z1507961130970.170.23150796113097125.87022703000
SHA80P27M0ZSHA80P27M0Z1507961130970.230.3150796113097167.82696903000
SHA80P31M0ZSHA80P31M0Z1507961130970.320.43150796113097236.00667503000
SHA80P34M0ZSHA80P34M0Z1507961130970.410.55150796113097304.18638103000
SHA80P36M0ZSHA80P36M0Z127241954300.540.72150796113097336.32768403000

Design and Optional Features for SHA Series Hybrid Linear Actuators

SHA Series actuators incorporate numerous design features that increase operating performance and reduce maintenance.

SHA Series Actuator Design Features:

  • Wide range of AC and DC motor options
  • Rod seal tested to over 50 million inches of travel without failure (load independent)
  • Closed system eliminates contamination, moisture and air infiltration
  • Minimal fluid



  • Oversized wear rings and bearings provide extra support during rod extension
  • Servo control eliminates pressure spikes
  • Relief valves eliminate overpressure
  • Temperature monitoring eliminates over-temperature conditions

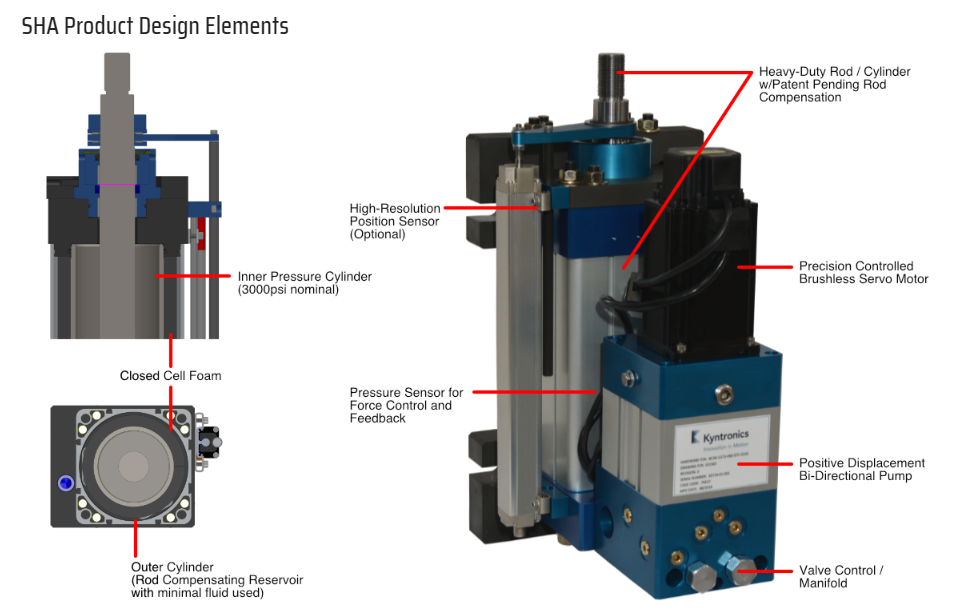

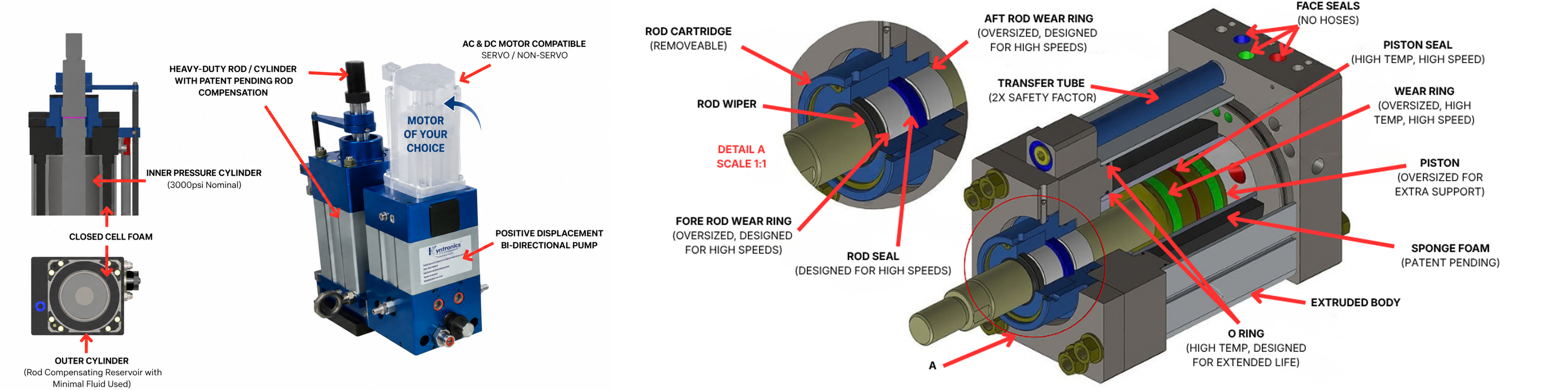

SHA Series - Design Elements

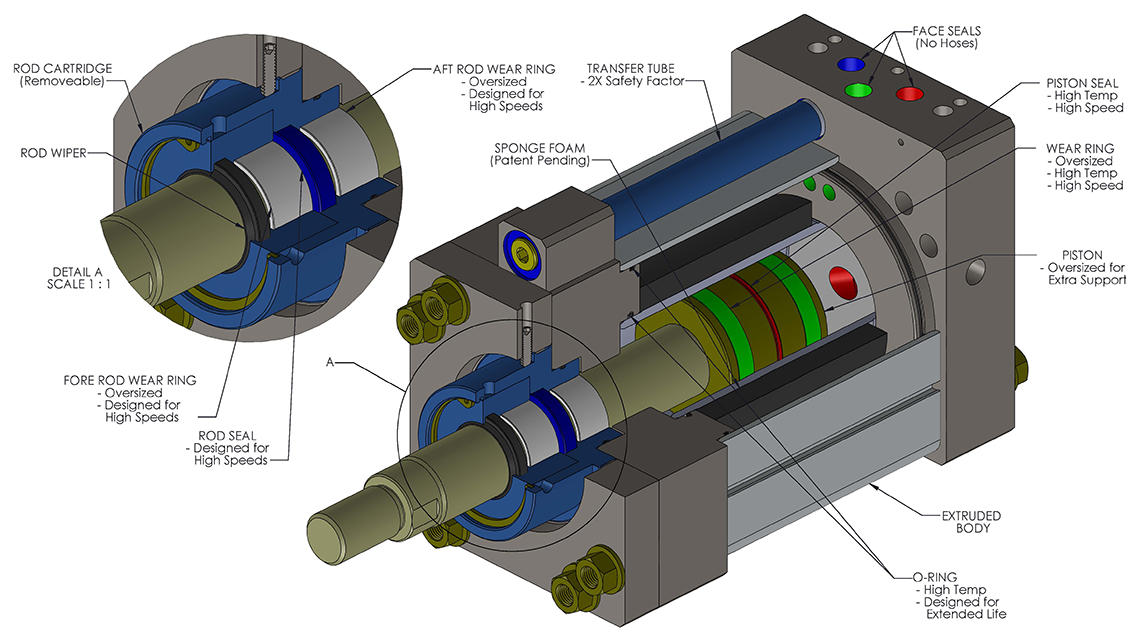

SHA Series - Design Features

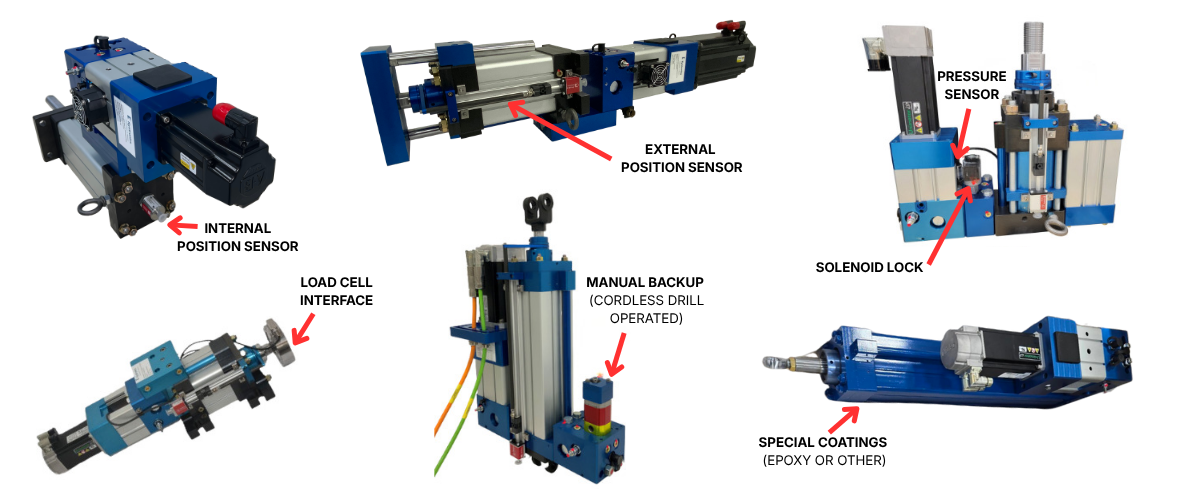

Mounting and Configuration Options for SHA Series Hybrid Linear Actuators

  1. Standard or High-Resolution Position Sensor – External E or Internal I Mounted
  2. Pressure Sensor for Force Measurement and Control
  3. Solenoid Lock
  4. Load Cell Interface
  5. Food Grade Fluid

6. Fire-Resistant Fluid

7. IP67, IP68, IP69k packaging

8. Special Coatings

9. Explosion Proof: Class 1 Div 1 / Div II

10. Supplemental Heating or Cooling

11. Manual Backup Operation

Mounting and Configuration Options for SHA Series Hybrid Linear Actuators

S-Series Mounting Options

Rod End

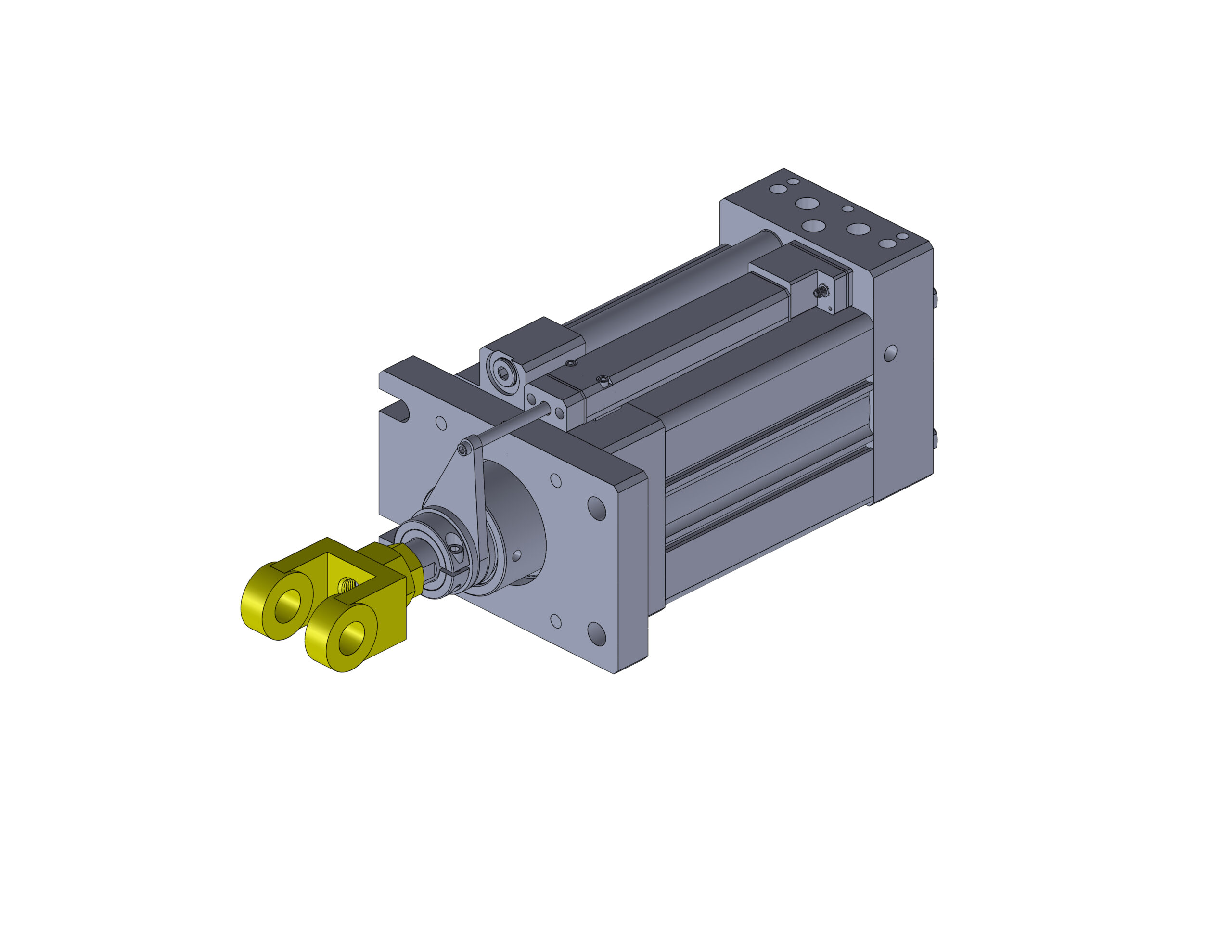

Clevis

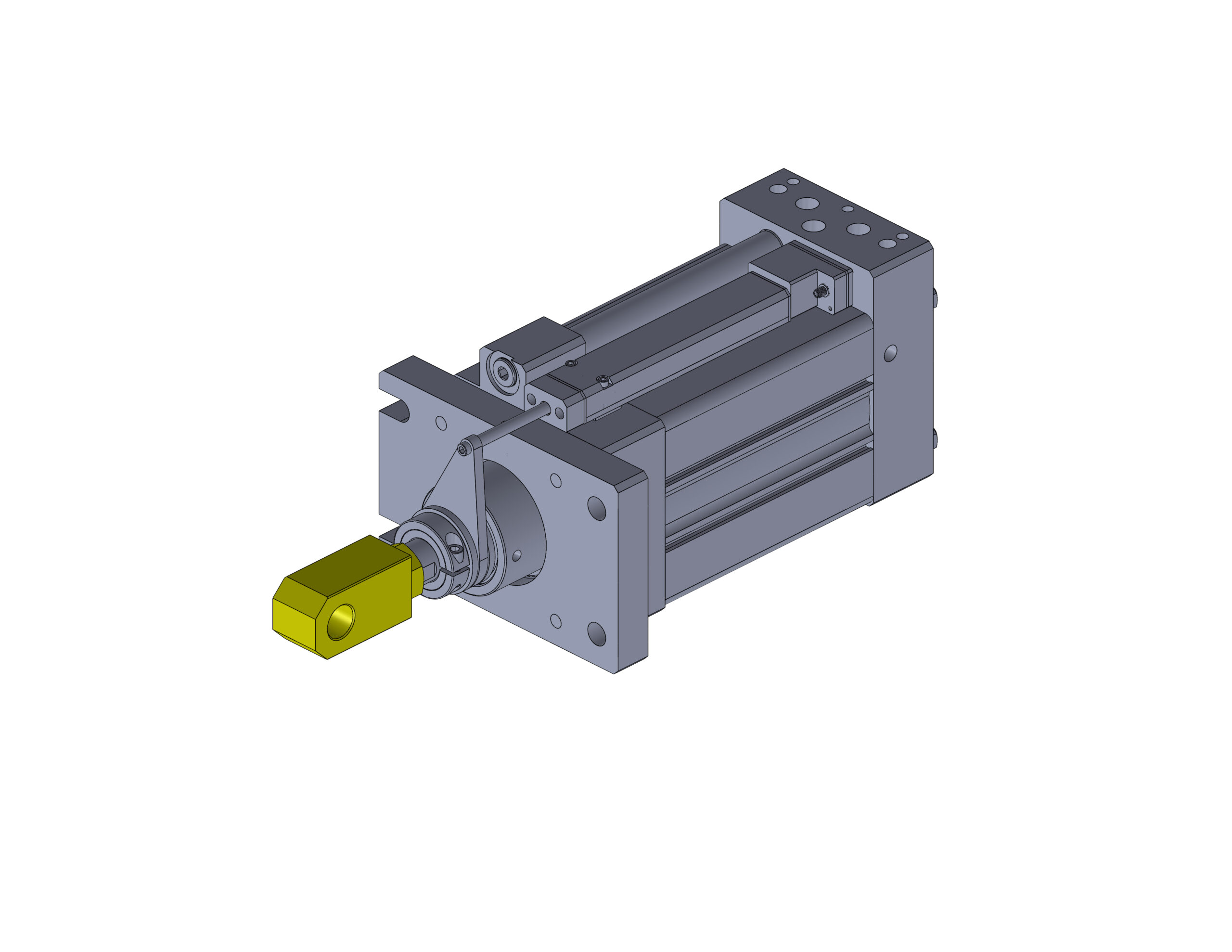

Rod Eye

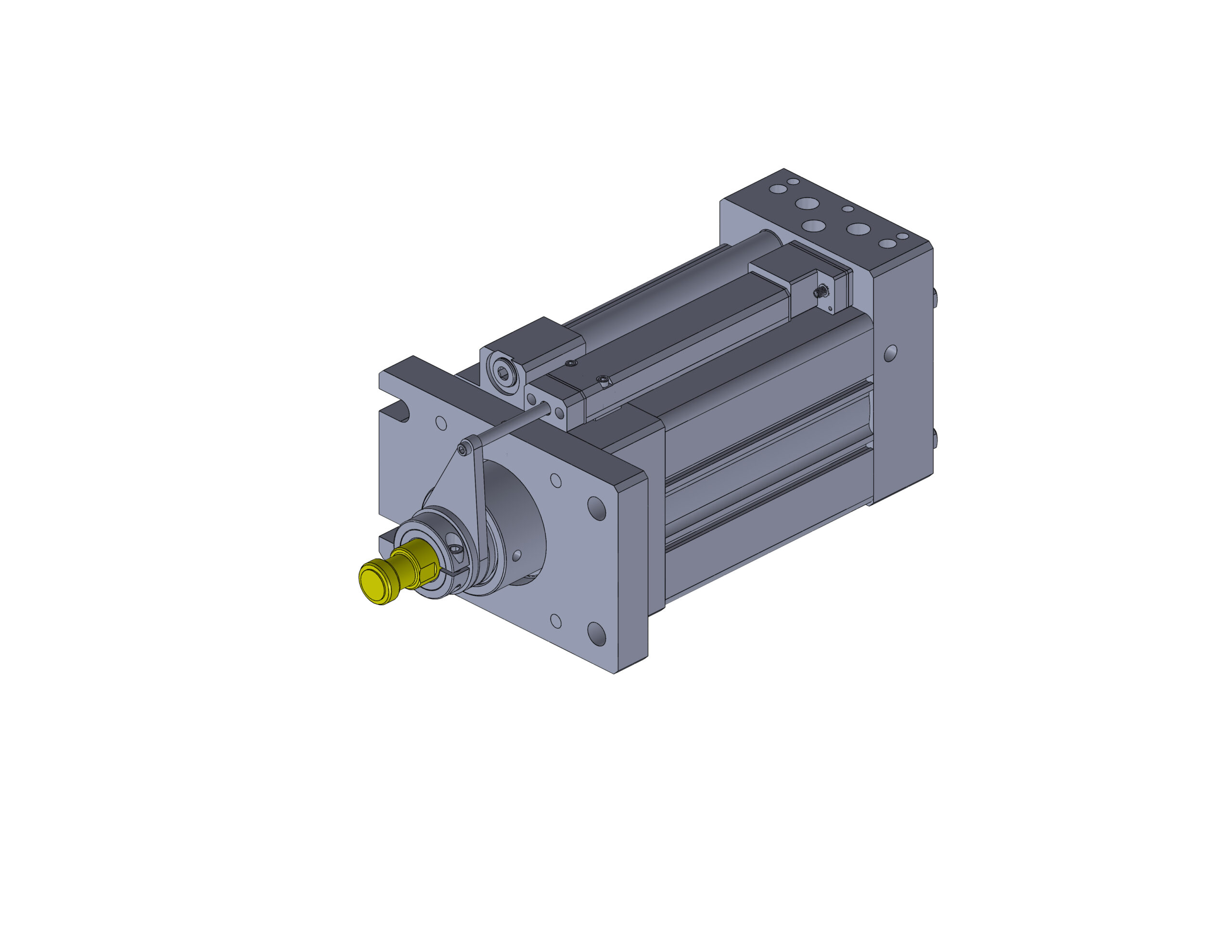

Parker Style 55

Spherical Ball Joint

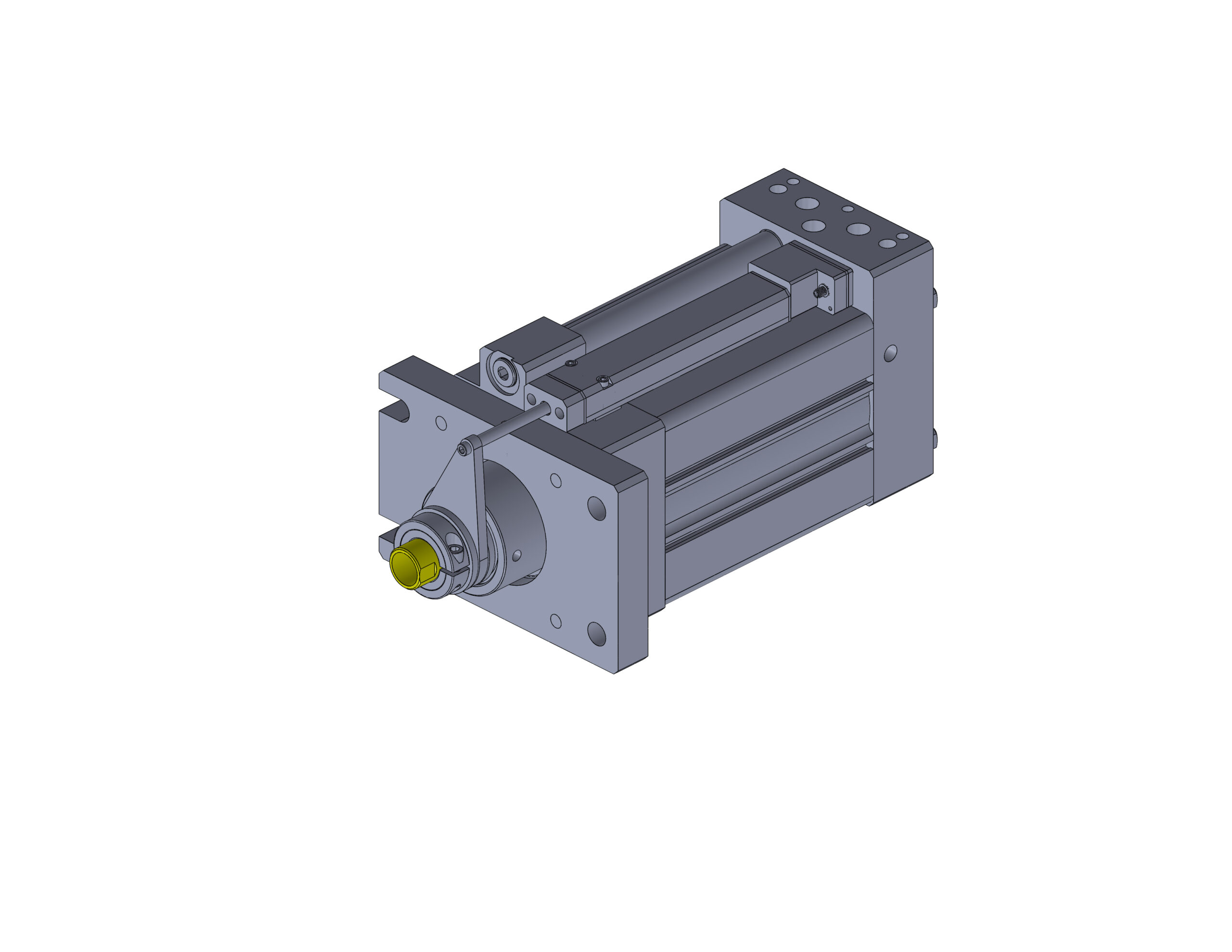

Threaded Female Standard Threaded Female SI

Threaded Male Standard Threaded Male SI

Actuator Mount

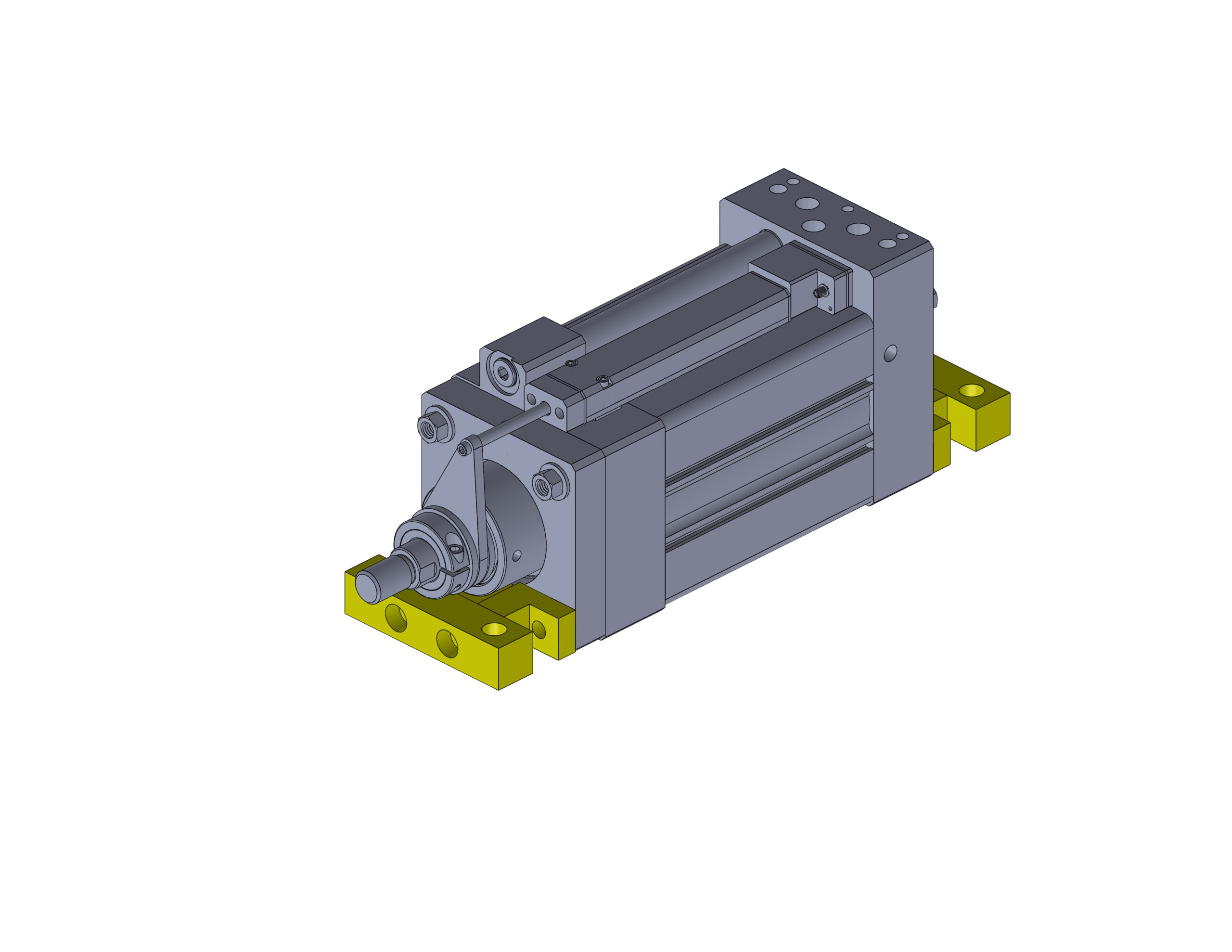

End Feet

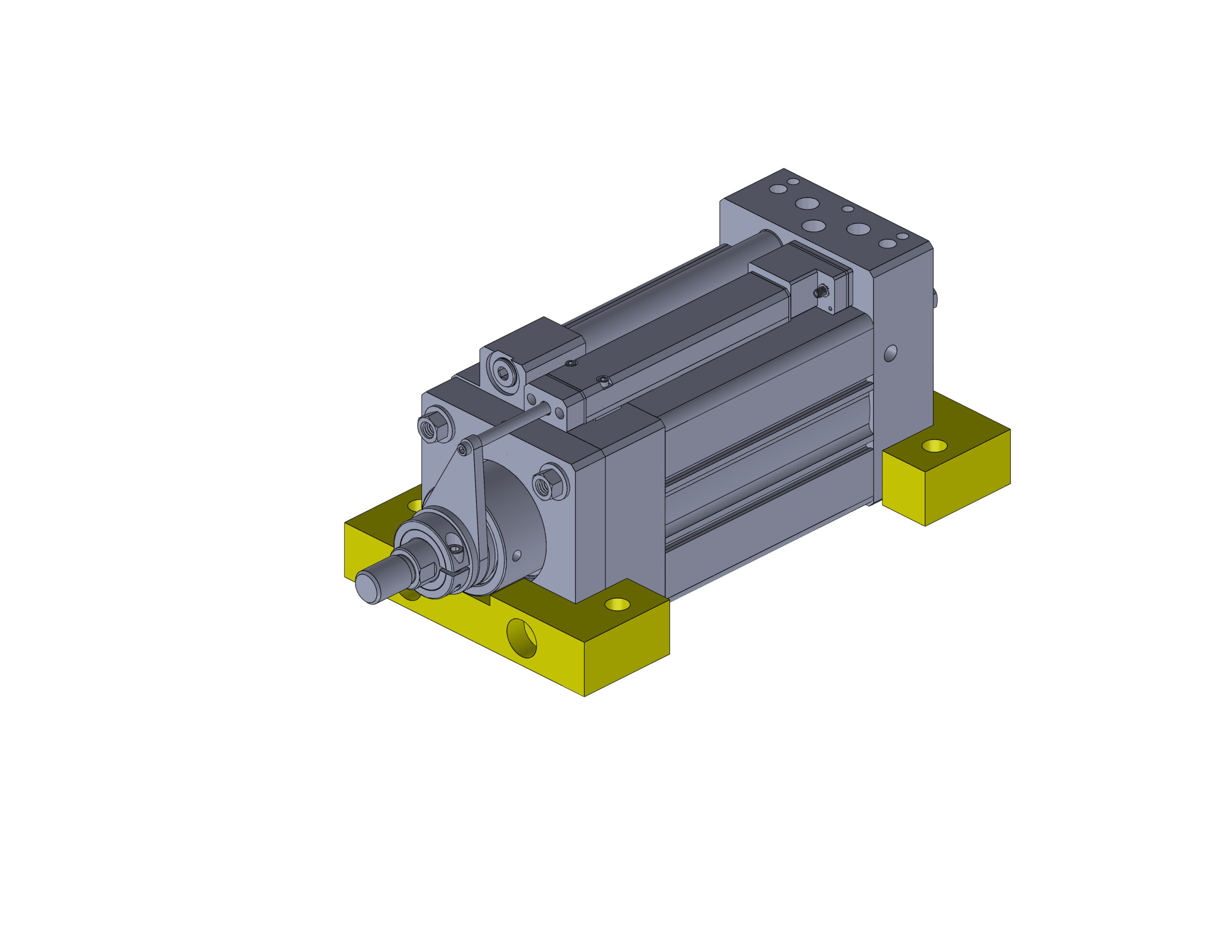

Side Feet

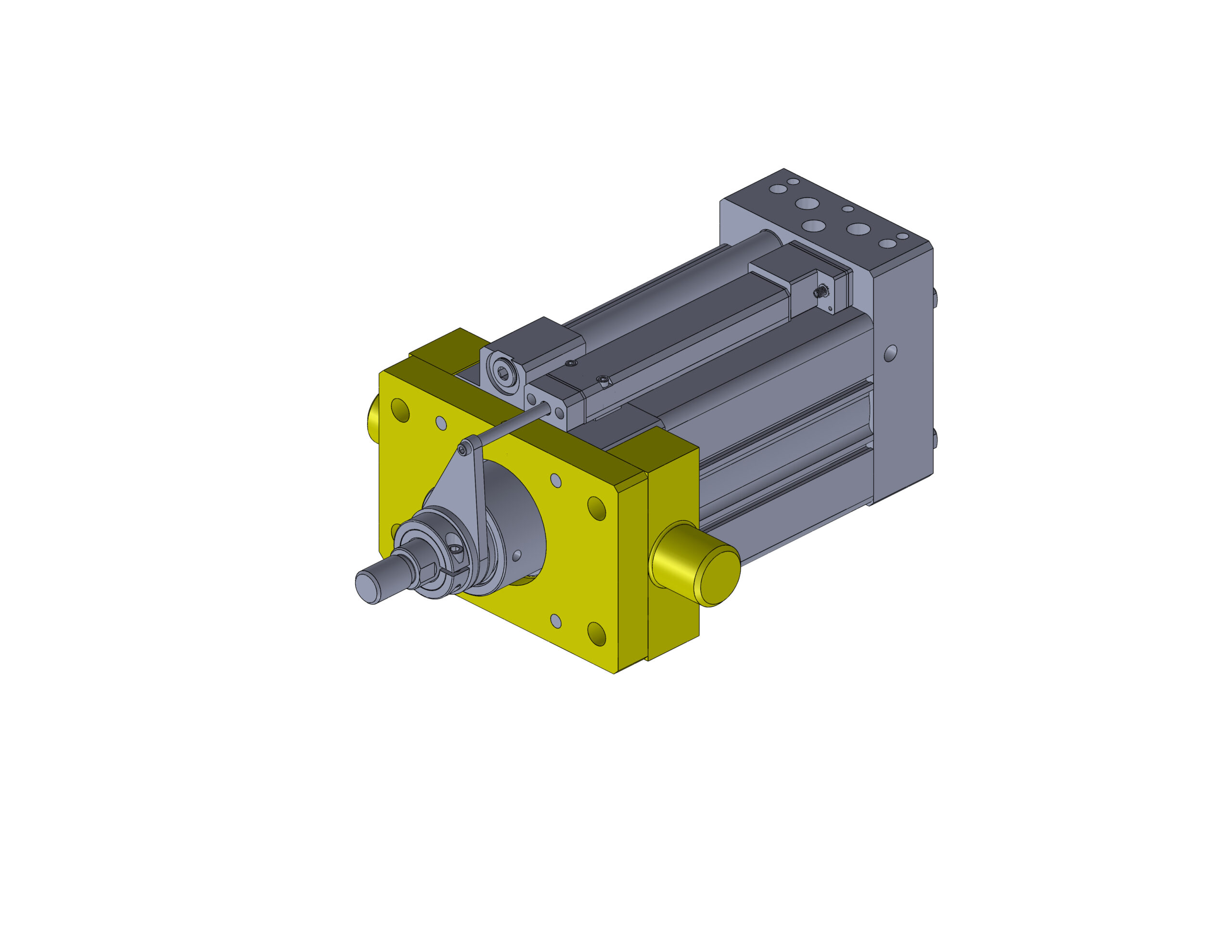

Trunnion

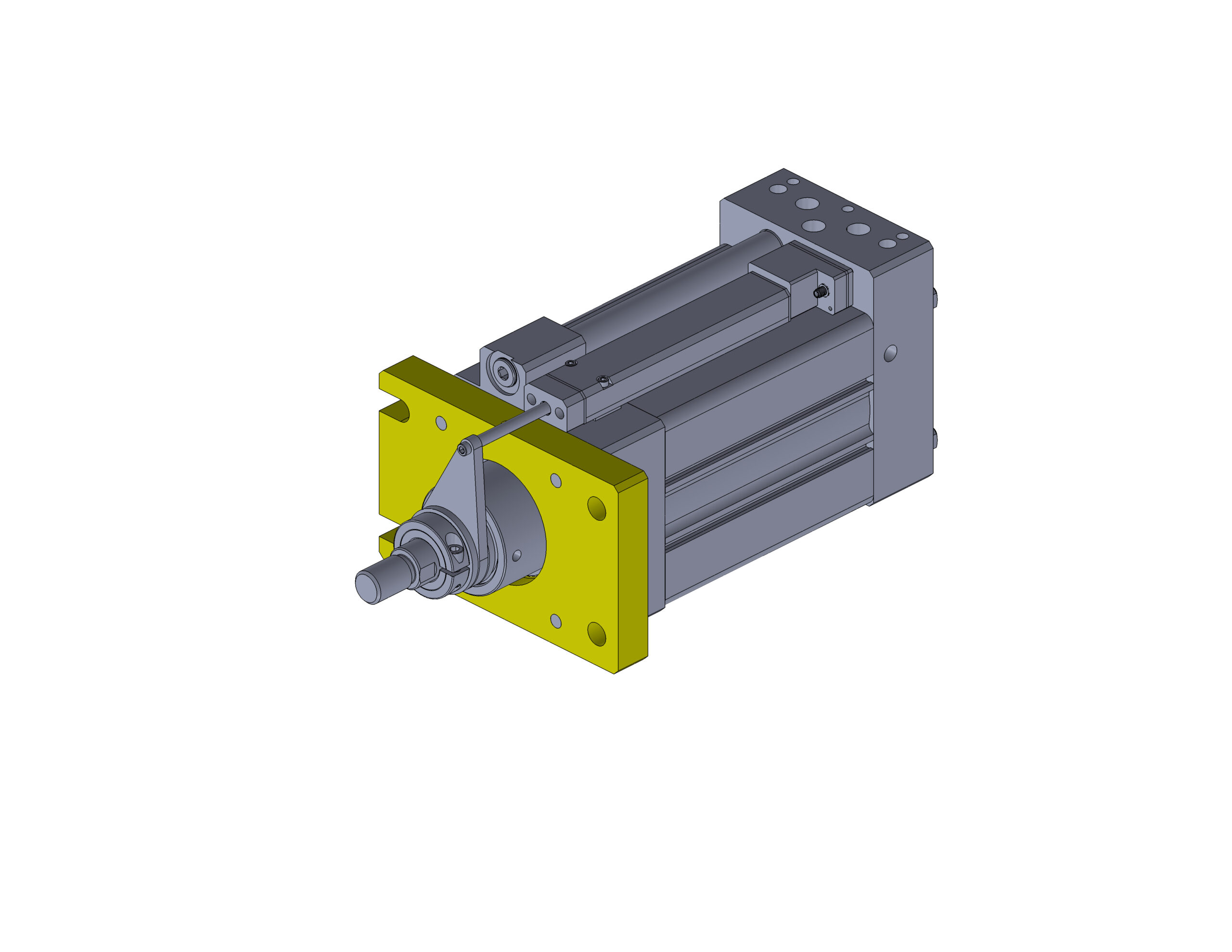

Front Flange Plate

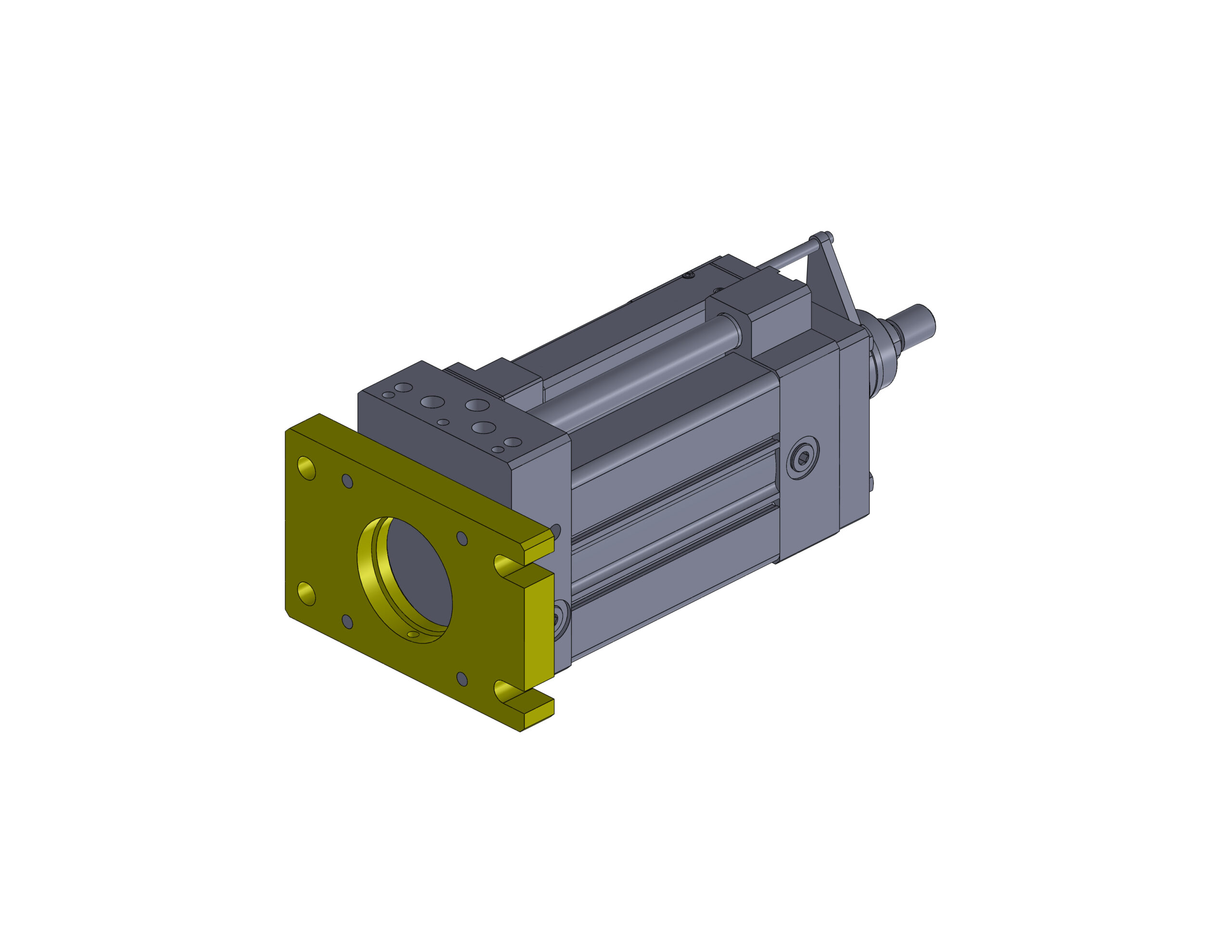

Rear Flange Plate

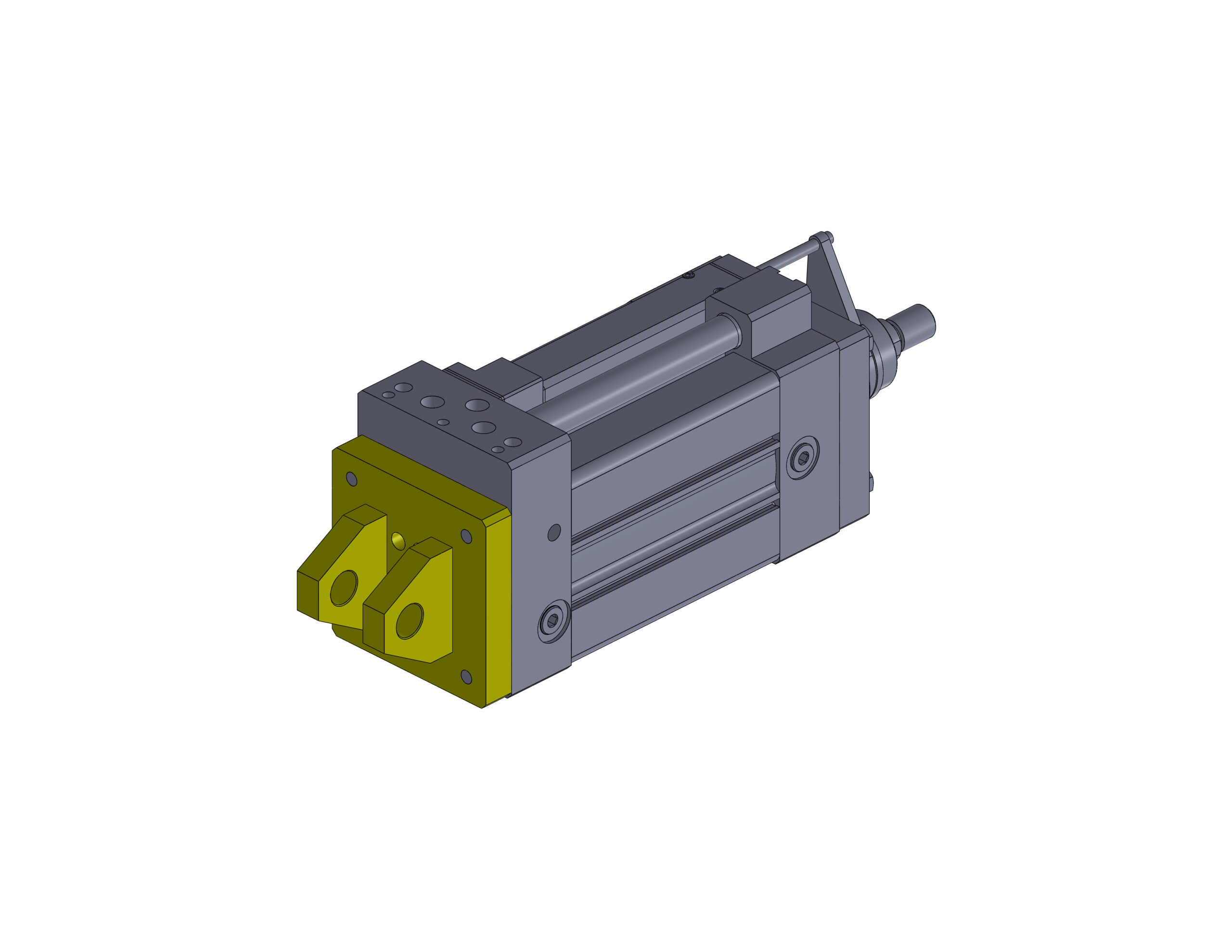

Clevis 0 degrees (shown) Clevis 90 degrees

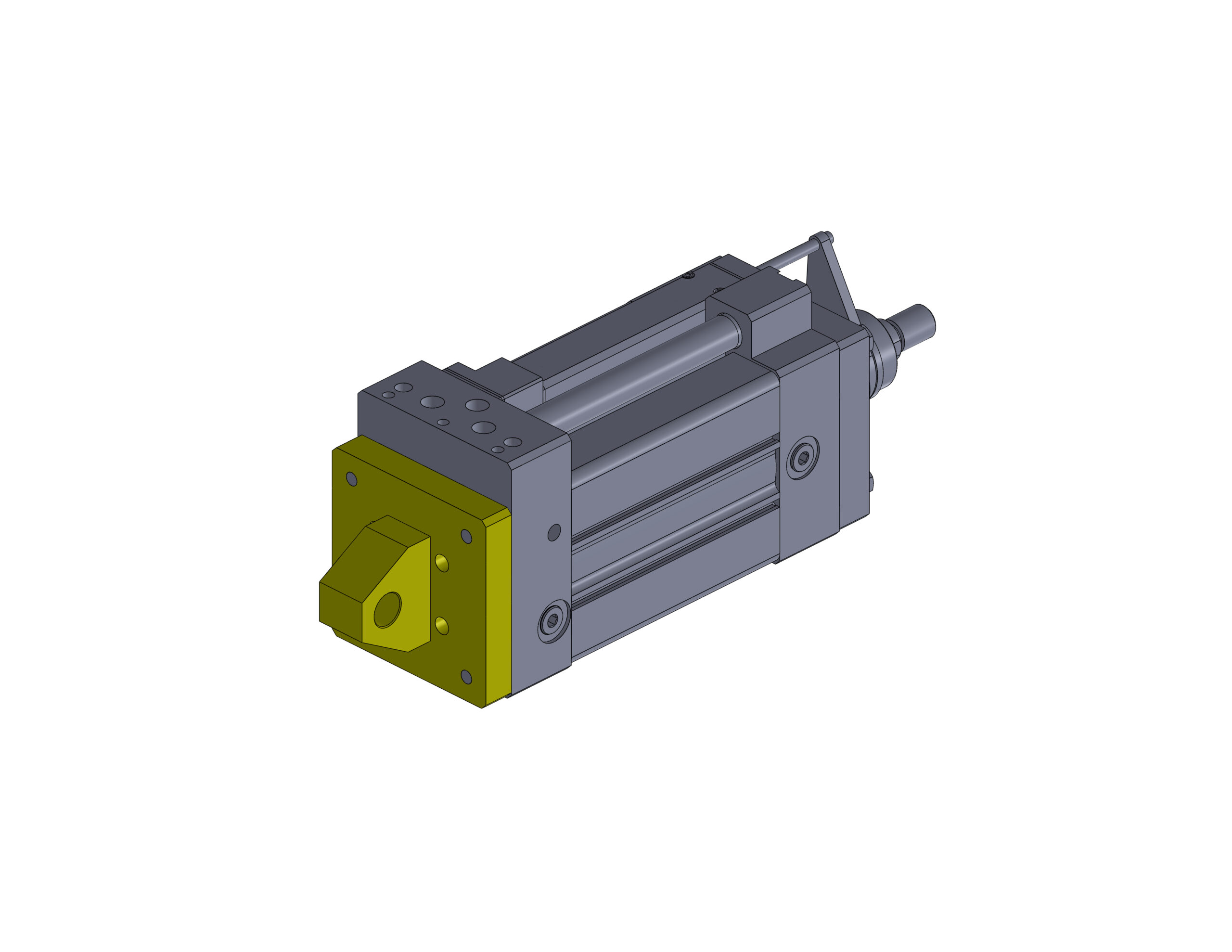

Rod Eye Bracket 0 degree (shown) Rod Eye Bracket 90 degree

Flexible Configurations to Fit Your Machine

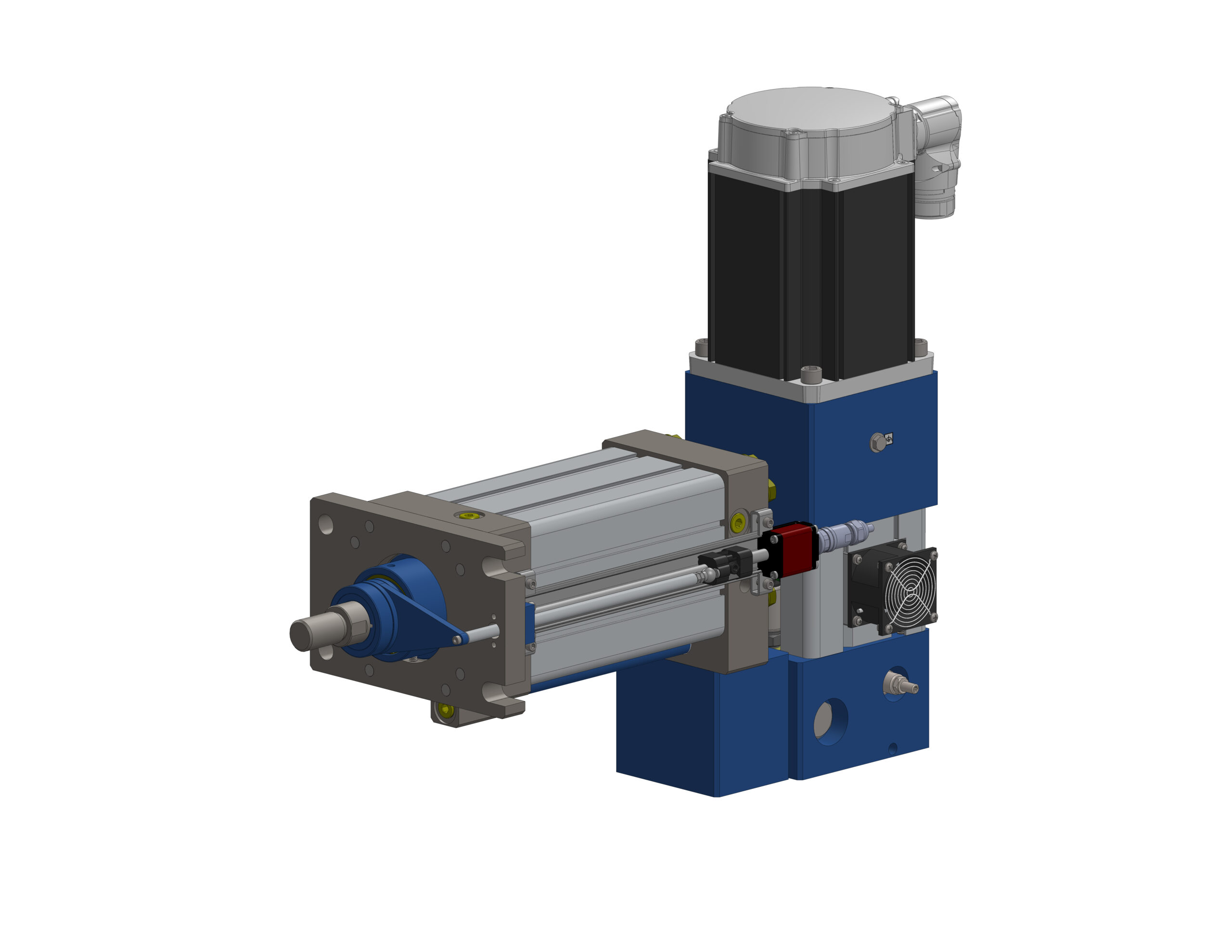

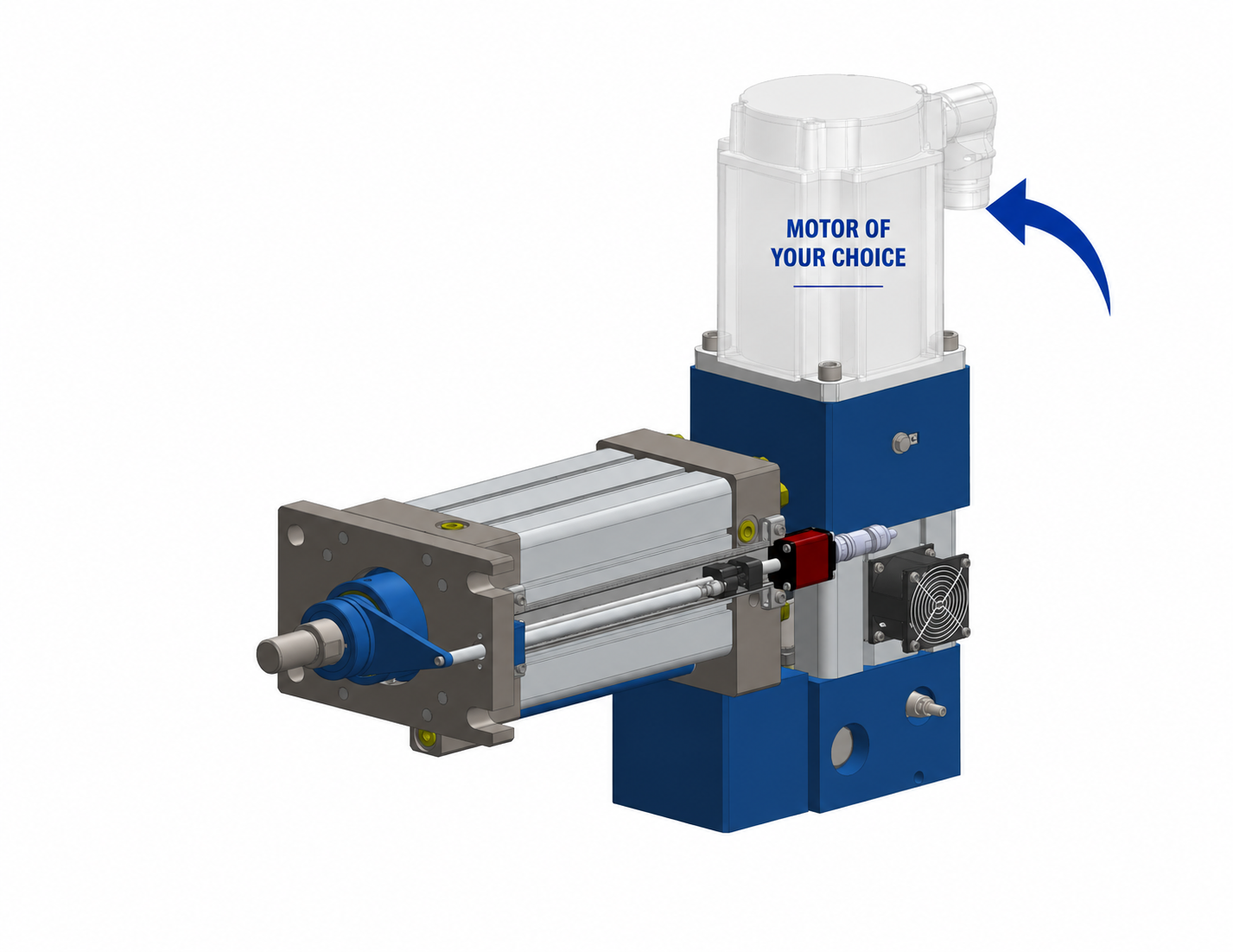

90° Behind Power Unit

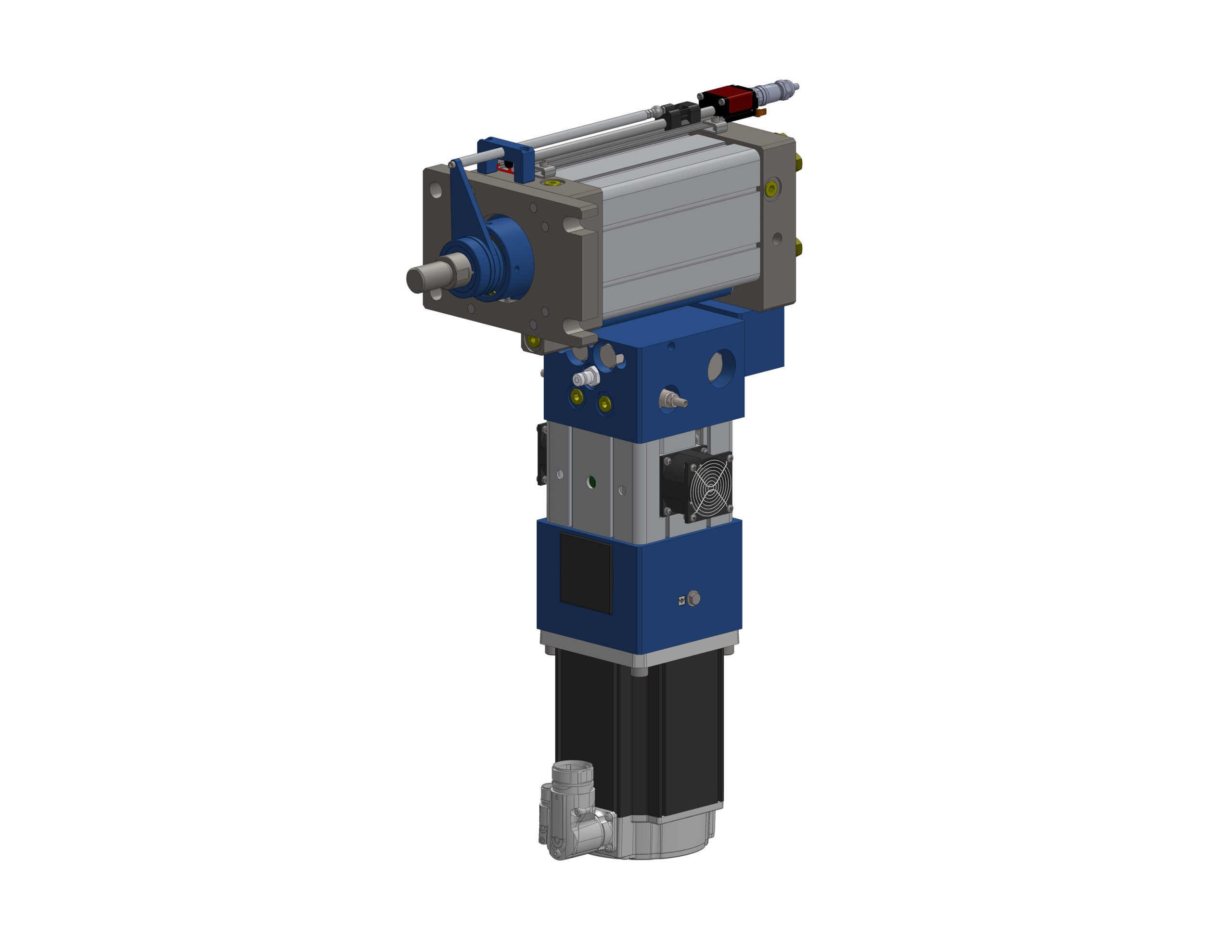

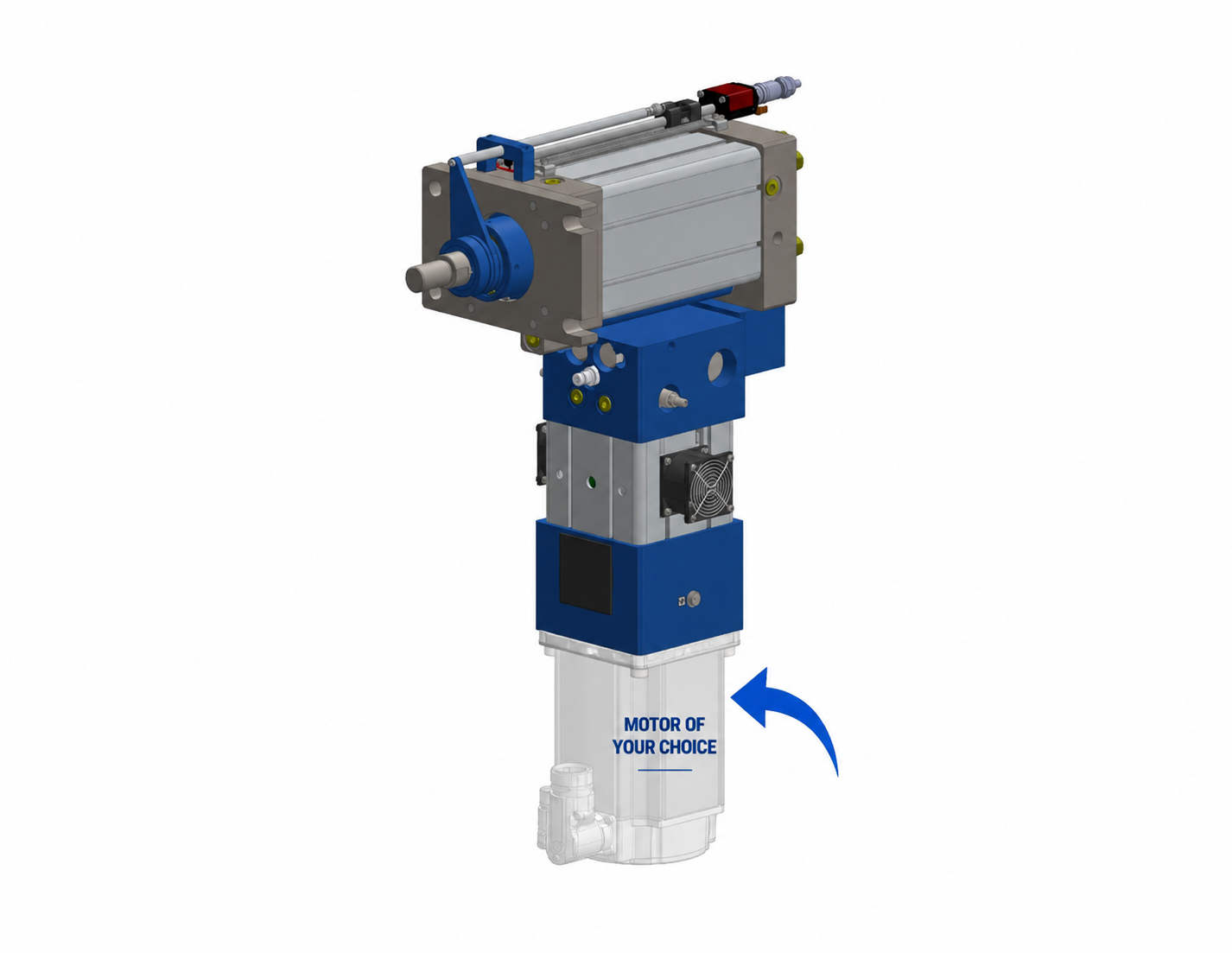

90° Centered

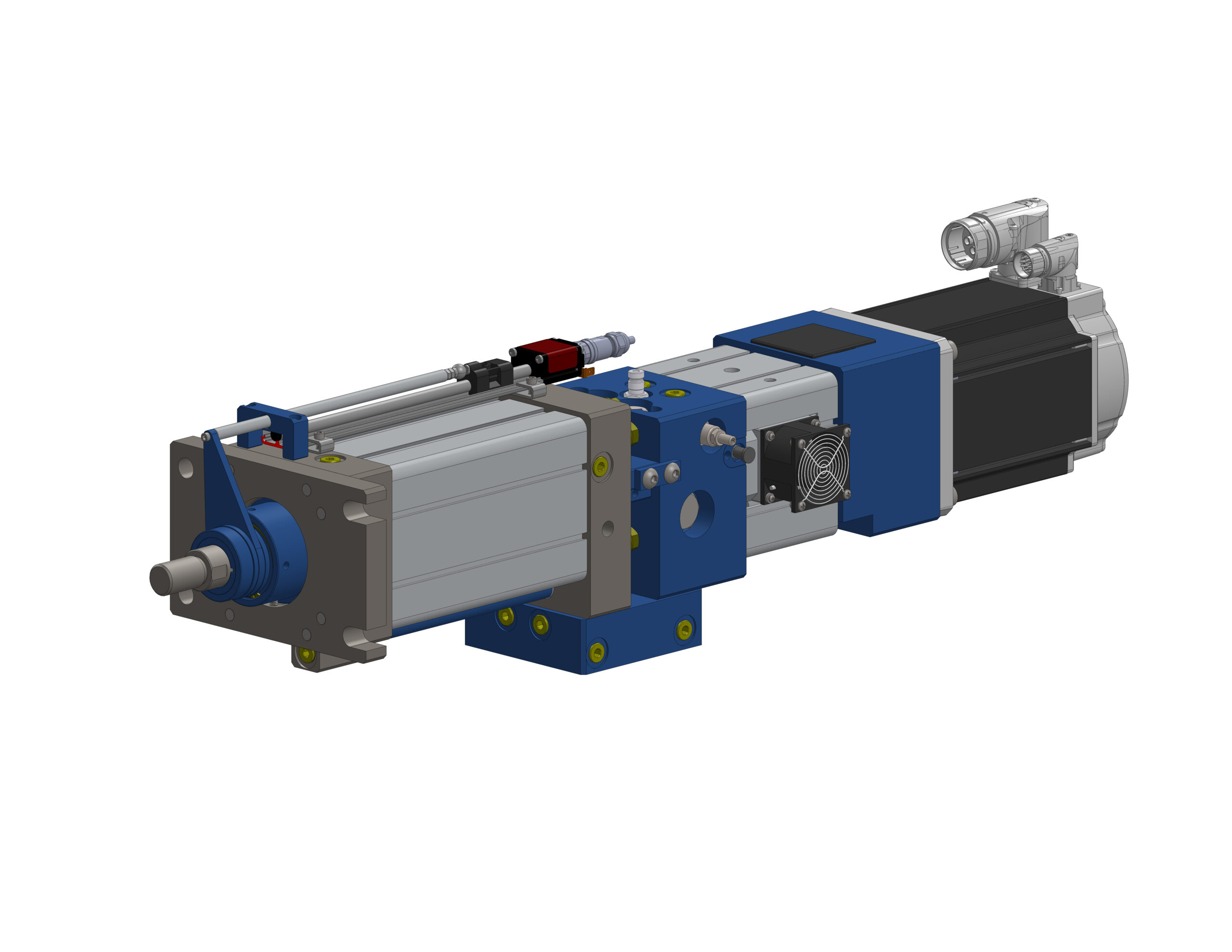

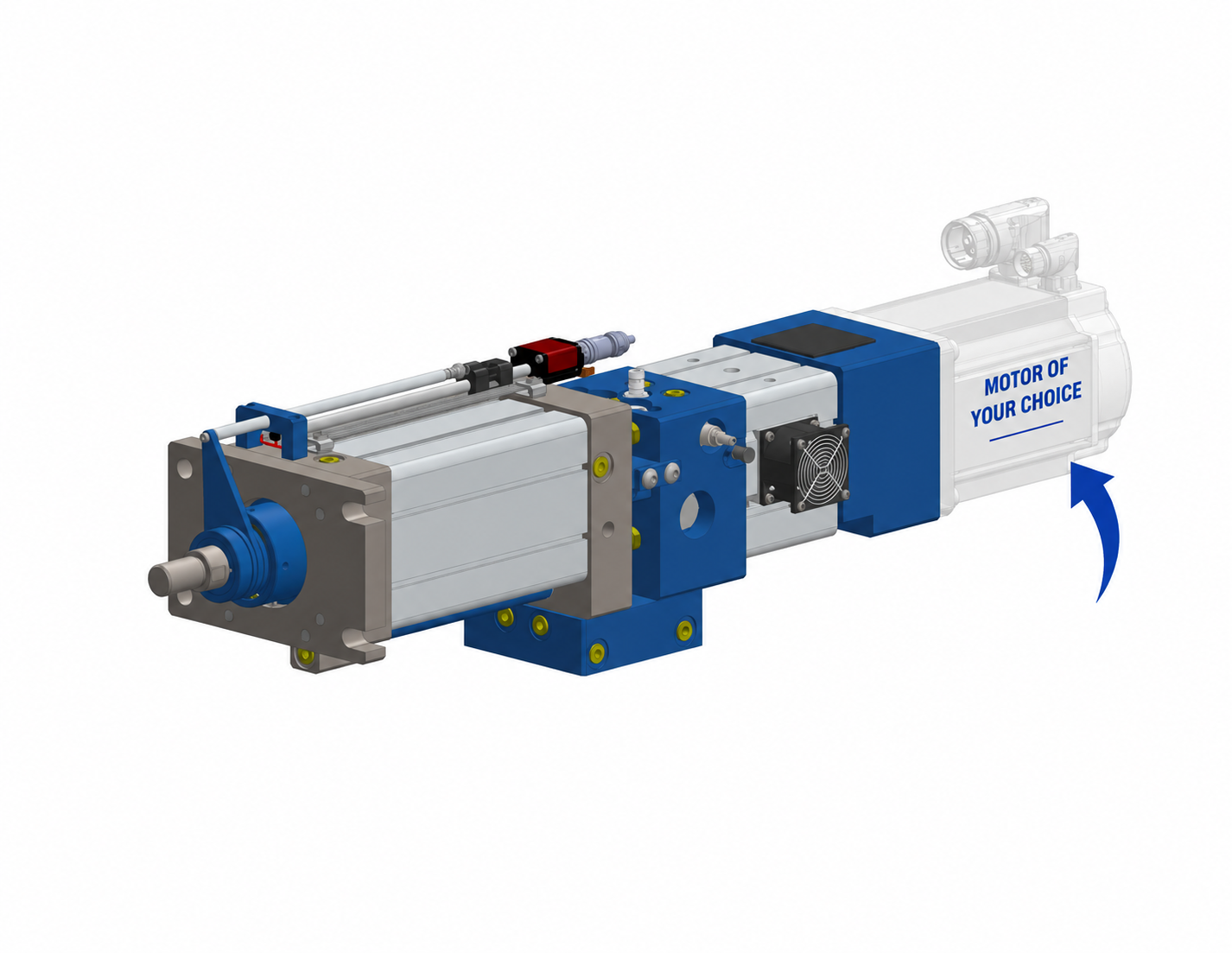

Inline

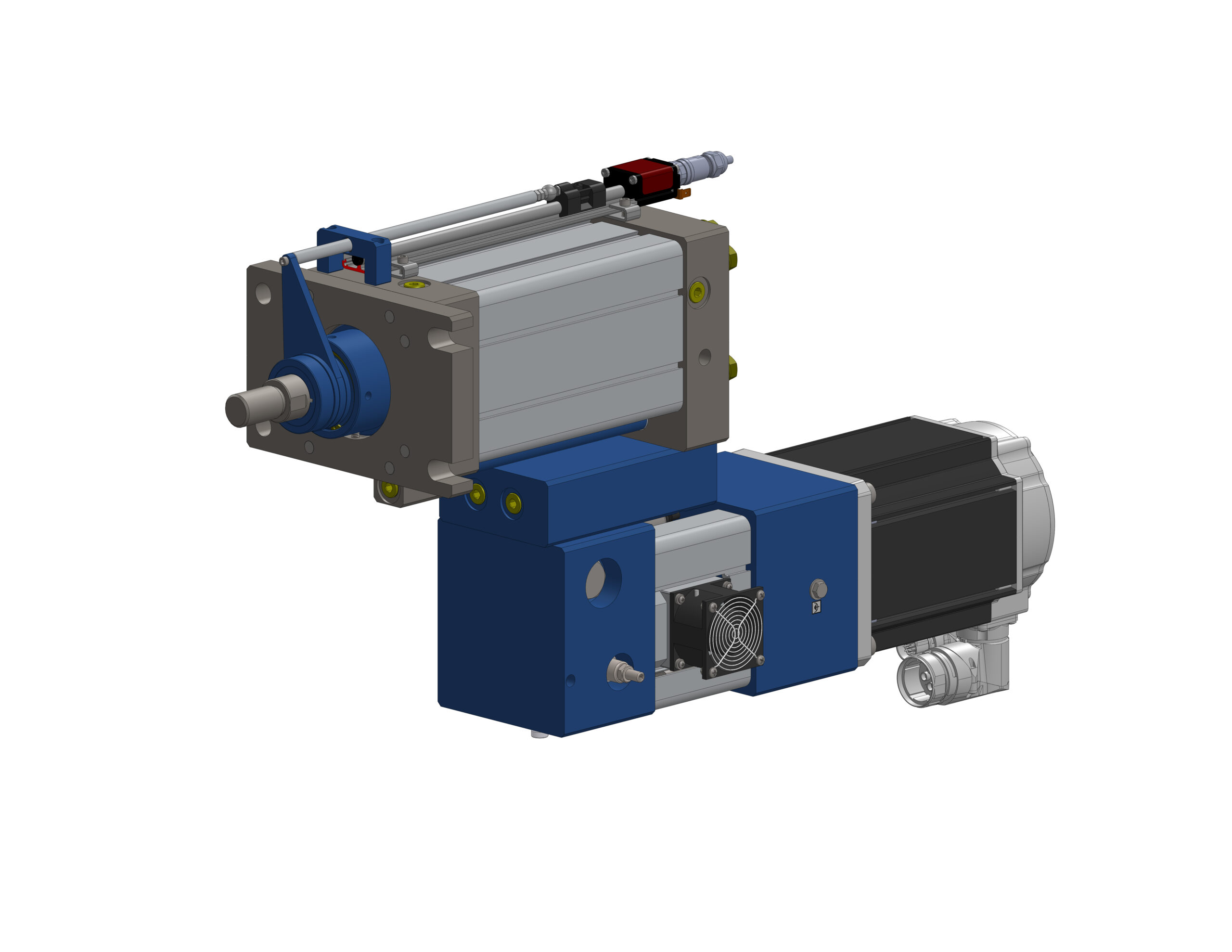

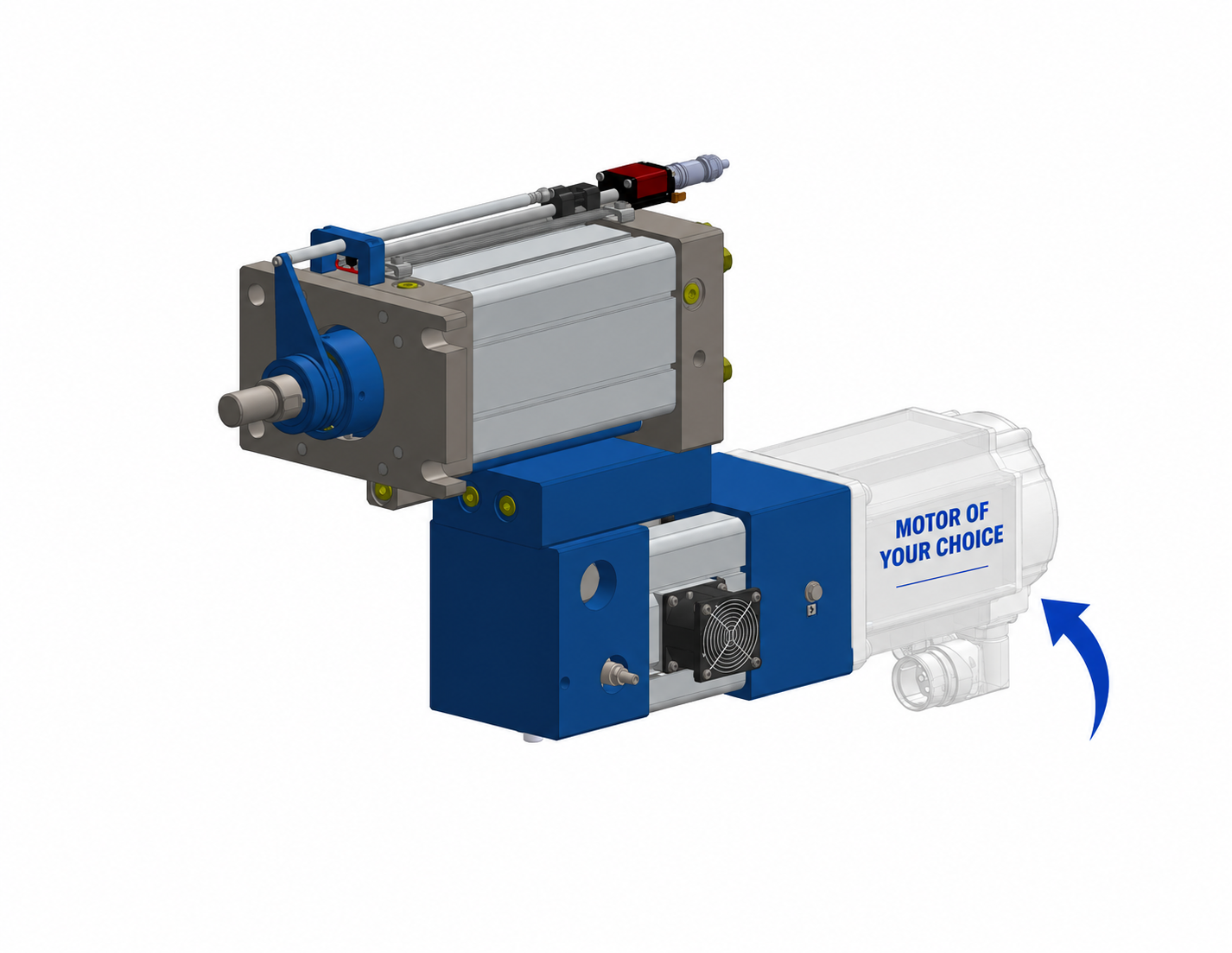

Parallel Inverted

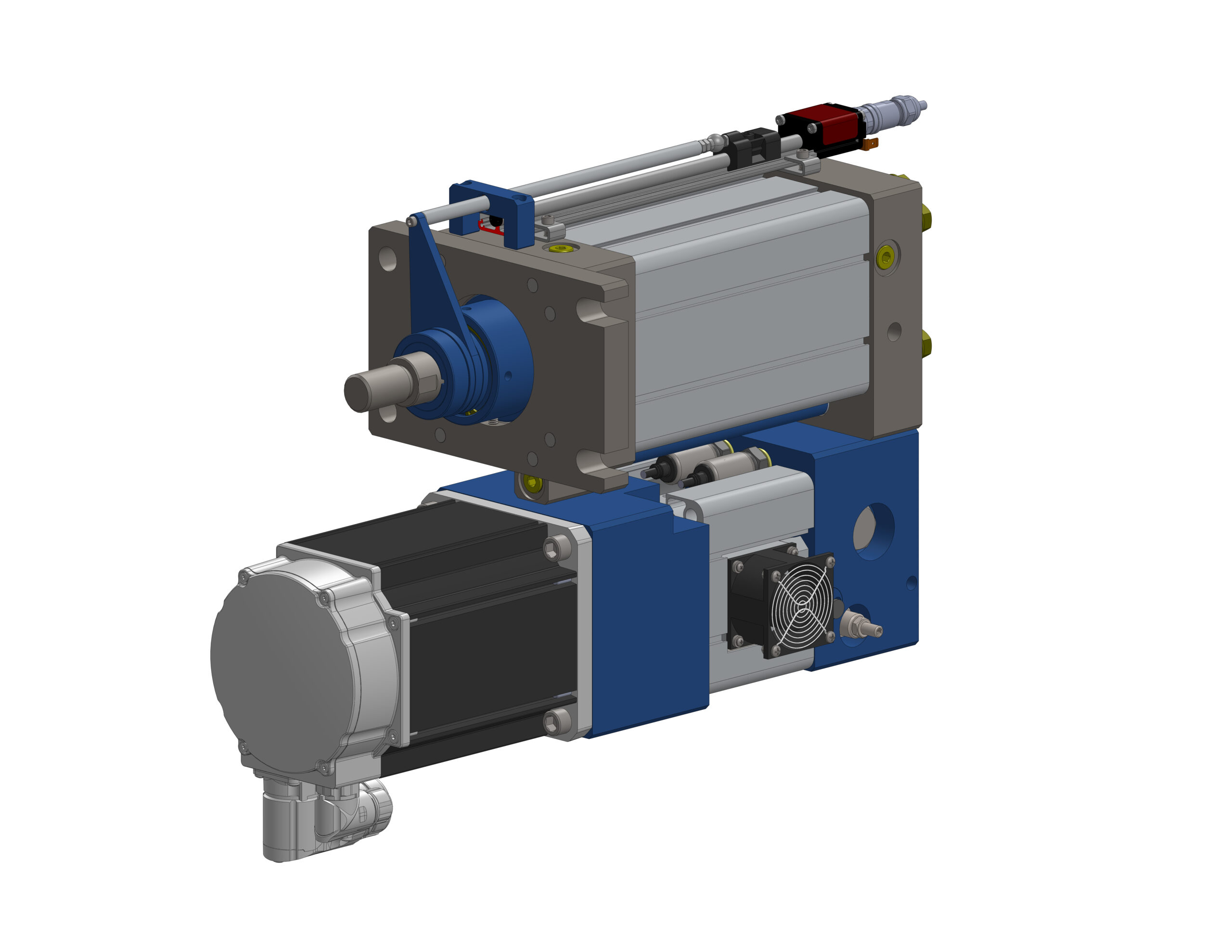

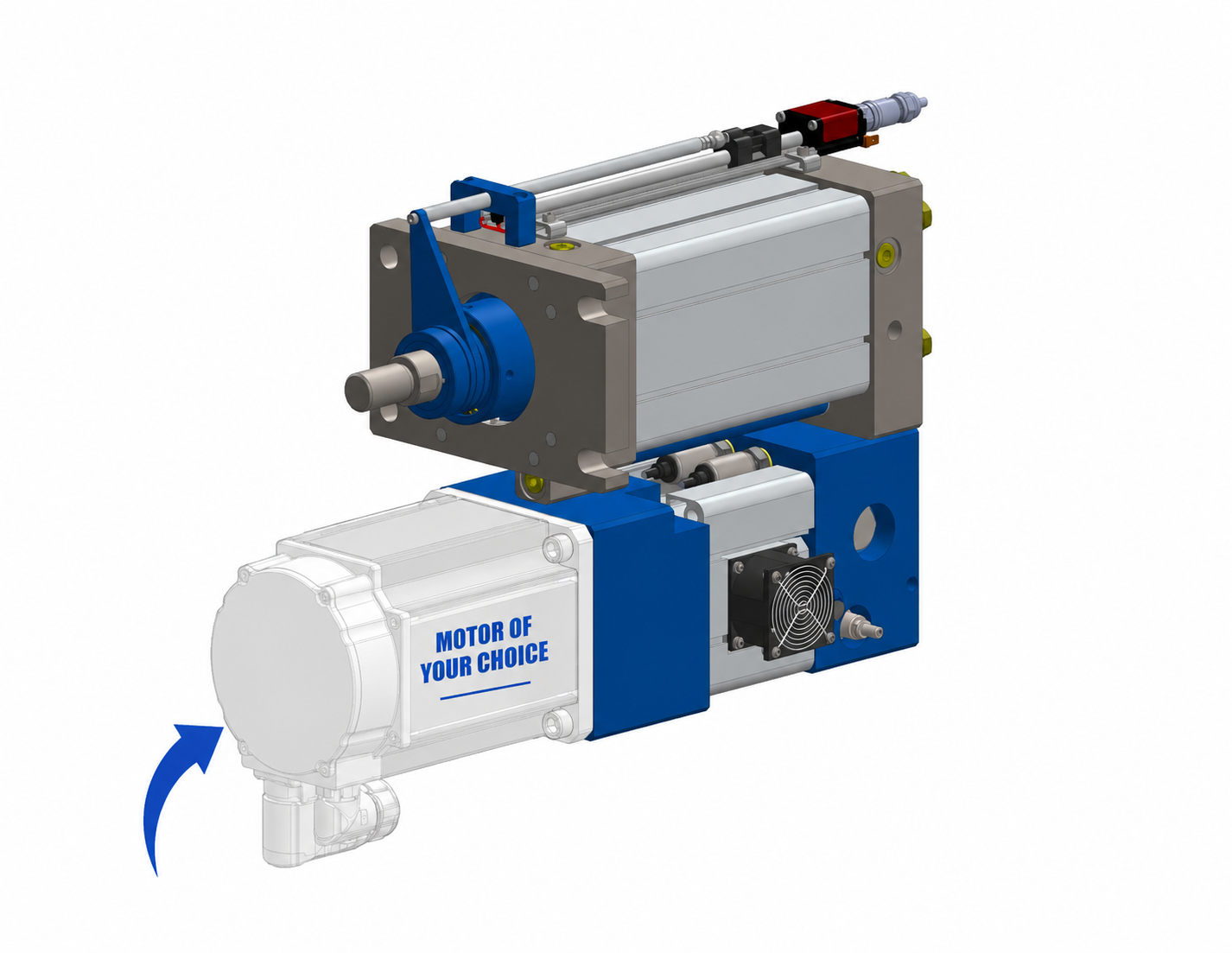

Parallel Standard

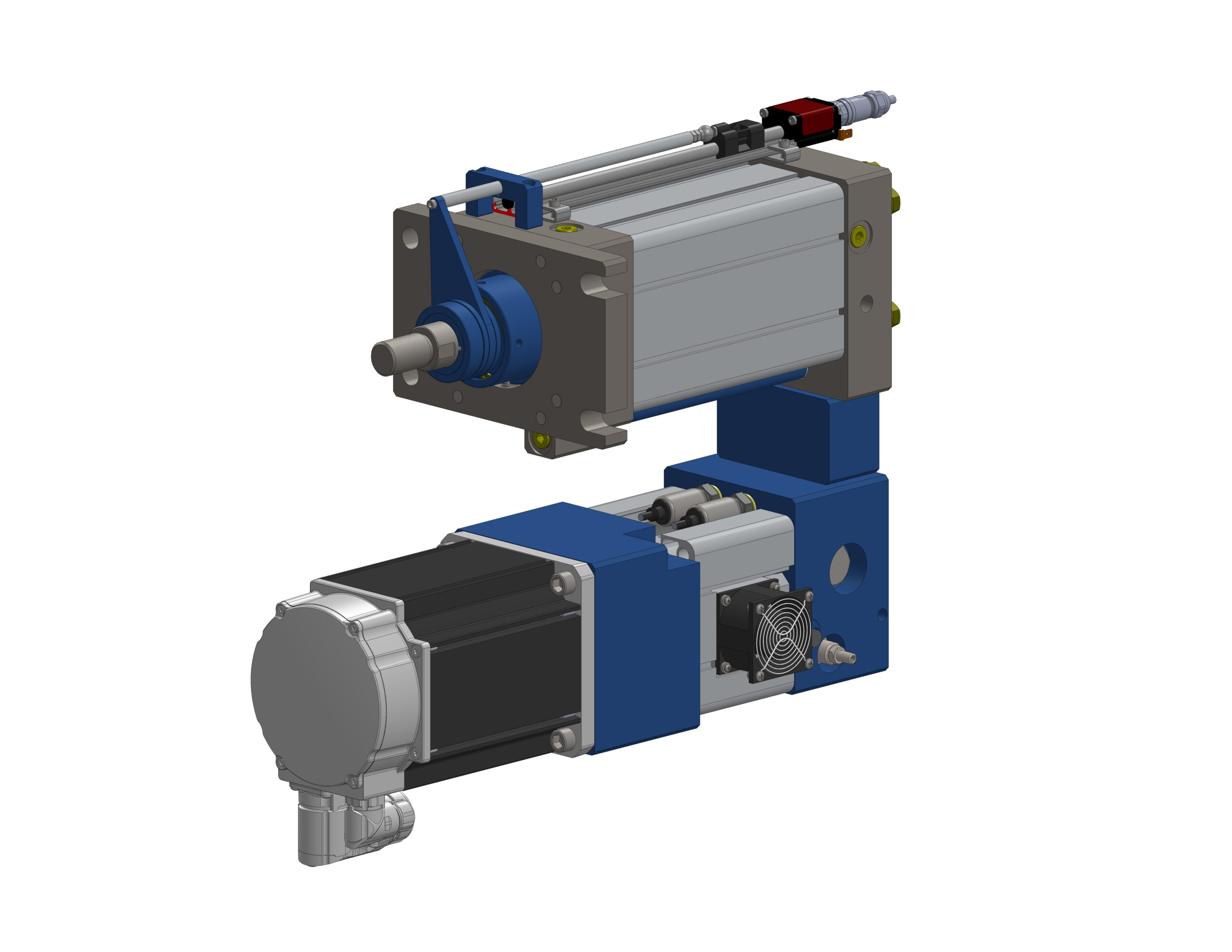

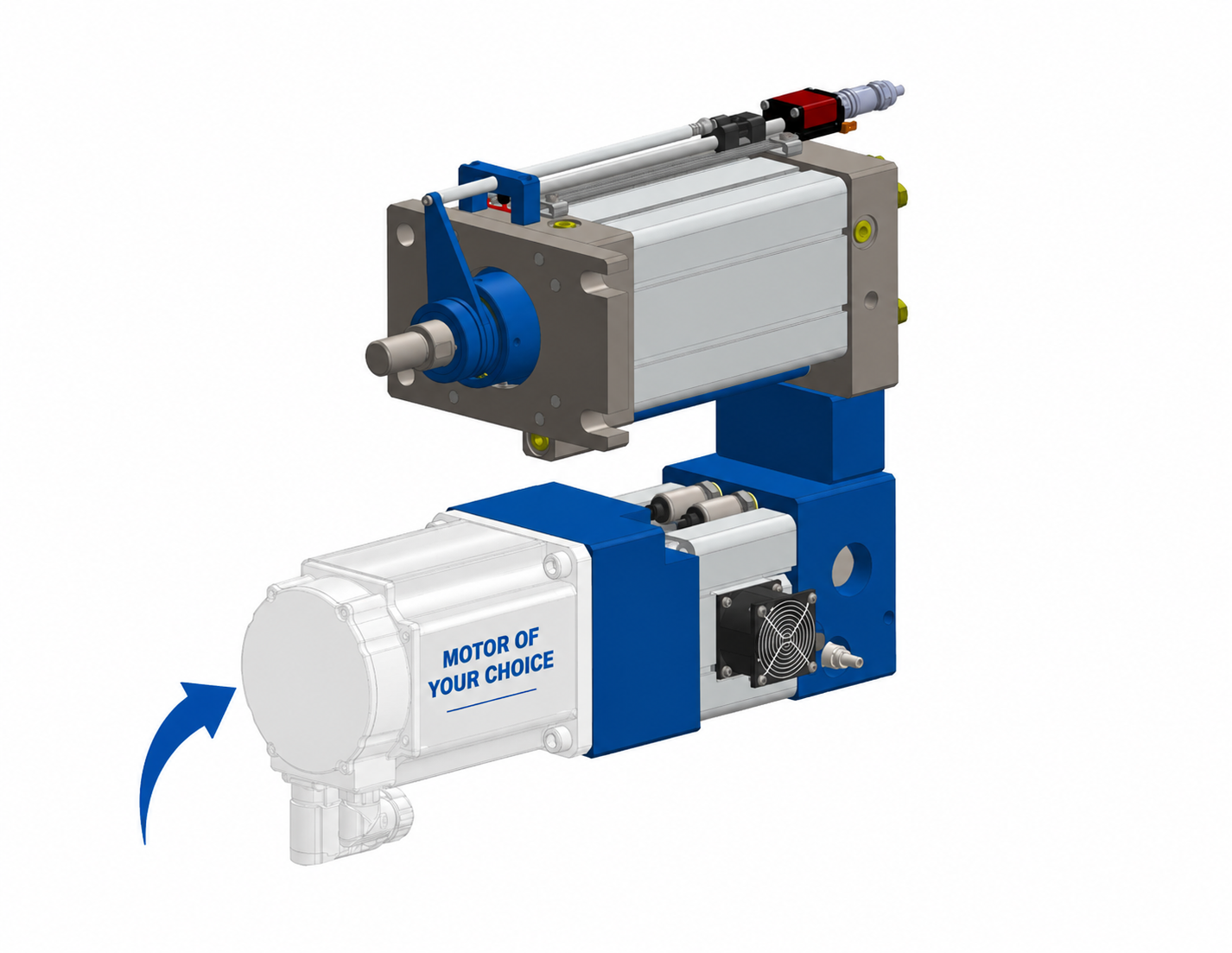

Parallel with Spacer Block

Motor Mounting Information for SHA Actuator Only and SPU Power Unit Only Options

Kyntronics’ “Actuator Only” Option is designed to make the mounting of most standard commercially available motors simple and straightforward.

Motor Mounting Information

Upon determination of the motor frame size and shaft diameter, Kyntronics will determine which of our standard motor mounts and shaft couplings adapt to your choice of motor, and we will include that in the final product configuration.

Kyntronics also offers a service where we will attach customer-supplied motors to the actuator or power unit prior to shipment.

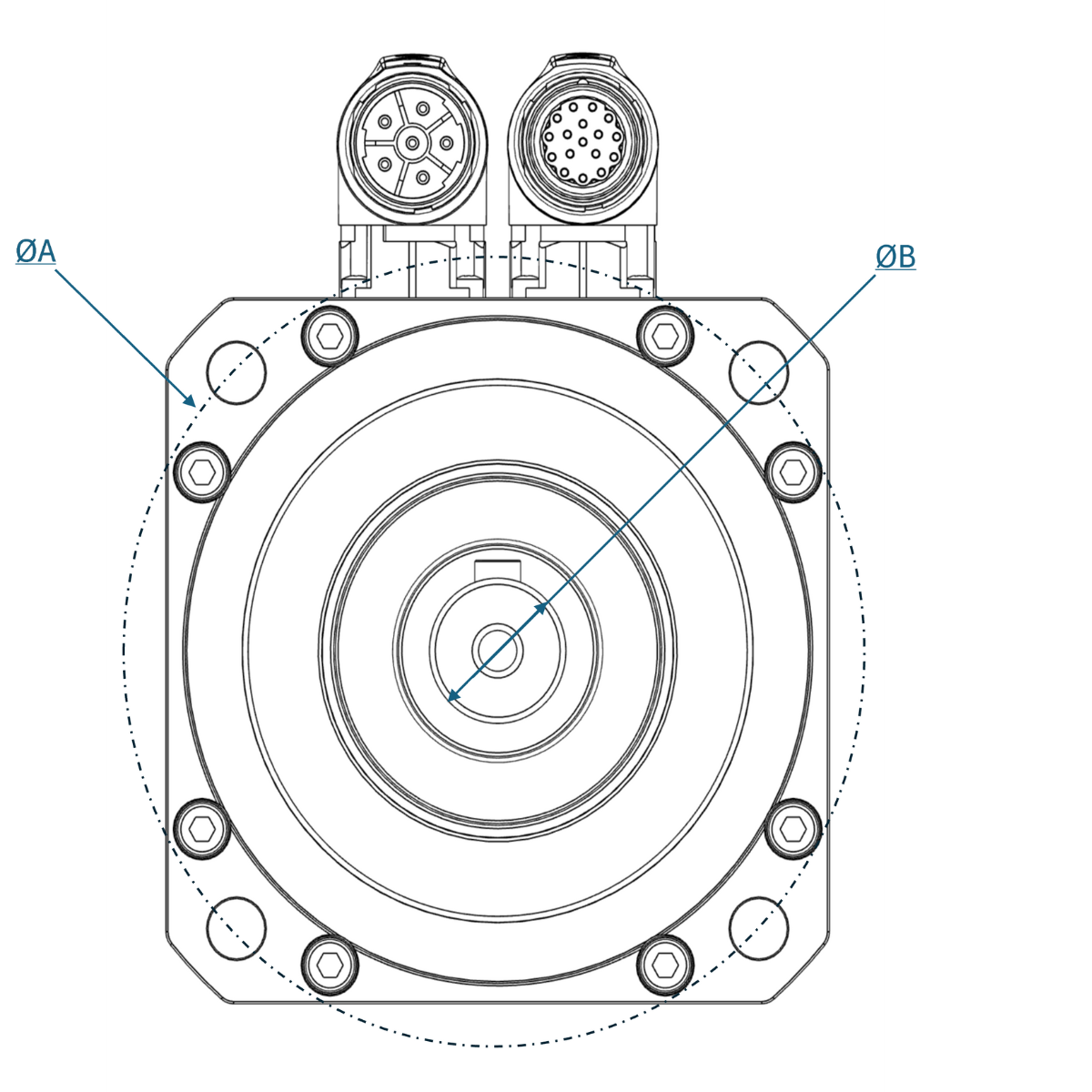

PumpManifold SizeMotor B.C.D. (A)Motor Shaft Dia (B)Keyed ShaftMotor Brake
P02, P05, P07, P11, P13Small70mm - 100mm14mm - 19mmOptionalNo
P21, P23, P27, P31, P34, P36Medium100mm - 165mm19mm - 38mmYesNo
P45, P47, P49, P51Large165mm - 215mm28mm - 42mmYesNo
×
Kyntronics

CAD Model Download

Please complete the following form in order to download the Model file

Please complete this required field.
Please complete this required field.
Please complete this required field.
Please complete this required field.
Please complete this required field.

Kyntronics is committed to protecting and respecting your privacy, and we’ll only use your personal information to administer your account and to provide the products and services you requested from us. From time to time, we would like to contact you about our products and services, as well as other content that may be of interest to you. If you consent to us contacting you for this purpose, please tick below to say how you would like us to contact you:

In order to provide you the content requested, we need to store and process your personal data. If you consent to us storing your personal data for this purpose, please tick the checkbox below.

You can unsubscribe from these communications at any time. For more information on how to unsubscribe, our privacy practices, and how we are committed to protecting and respecting your privacy, please review our Privacy Policy.
