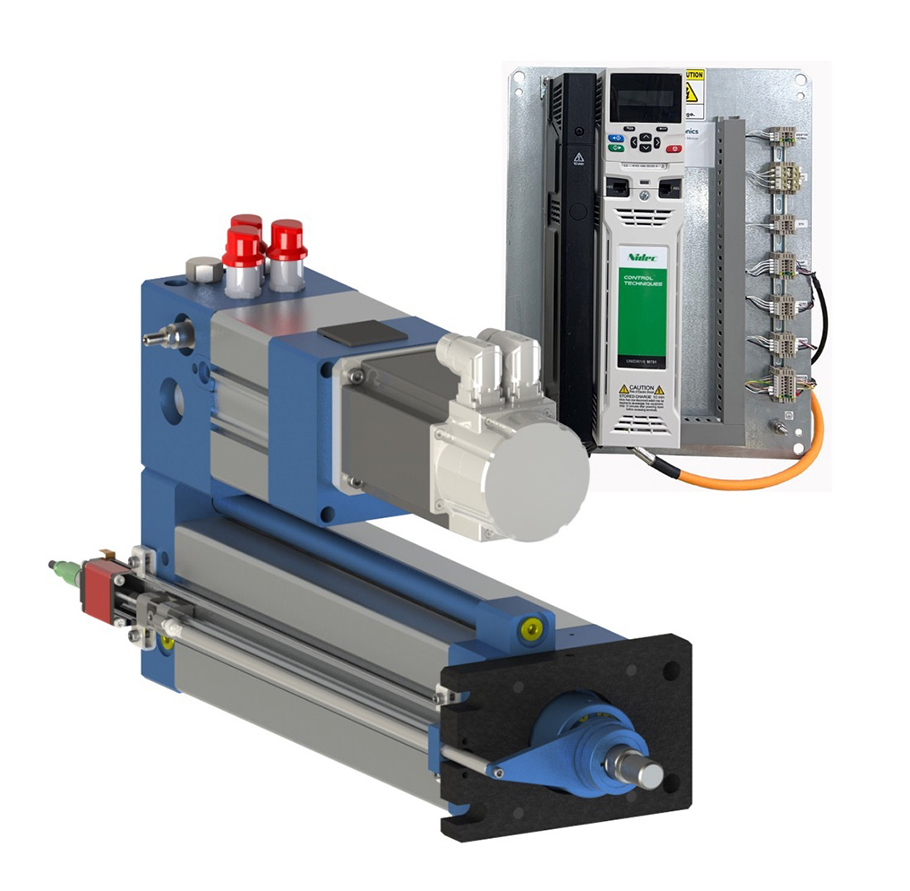

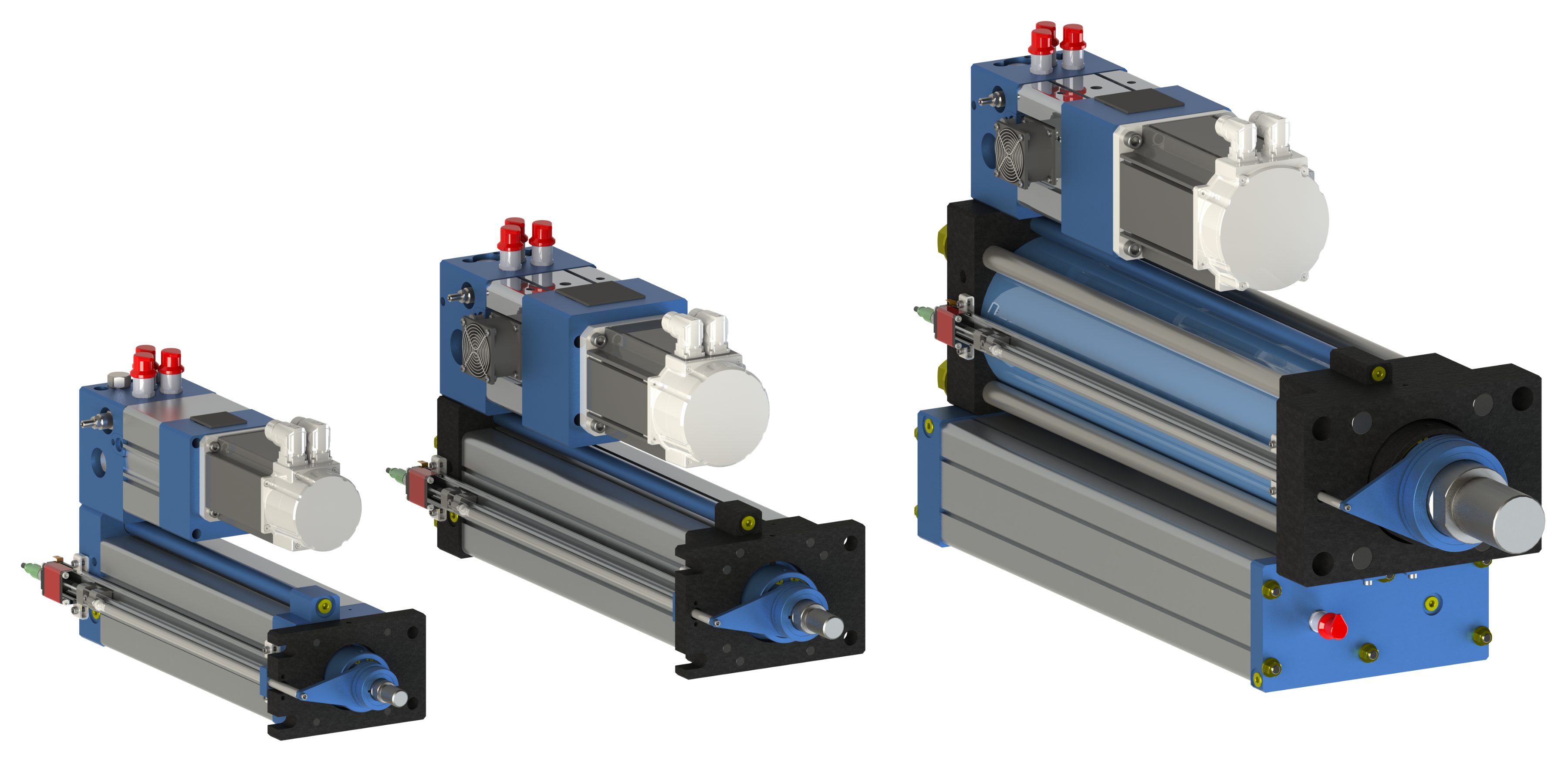

SHA Series Total Solution

Hybrid Linear Actuators
Complete with Actuator, Motor, Controls, Cables and Factory Assistance

Benefits

Totally Sealed Design
Shock Load Tolerant
Energy Efficient
Precise Servo Control
Environmentally Friendly
Minimal Maintenance
No Metal-to-Metal Wear

Key Features

Up to 150,000 Lbs (667 kN) of force
Up to 34.5 IN/S (877 mm/S) cycle speed
Up to 120 IN- (3,048 mm) stroke length
24 – 80 VDC, 120 – 460 VAC

The SHA Series Total Solution is an all-electric precision actuation system that eliminates the headaches of sizing the actuator motor and drive, component integration and programming. It is a complete package ready to install.

Overview
Actuator Specifications and CAD Models

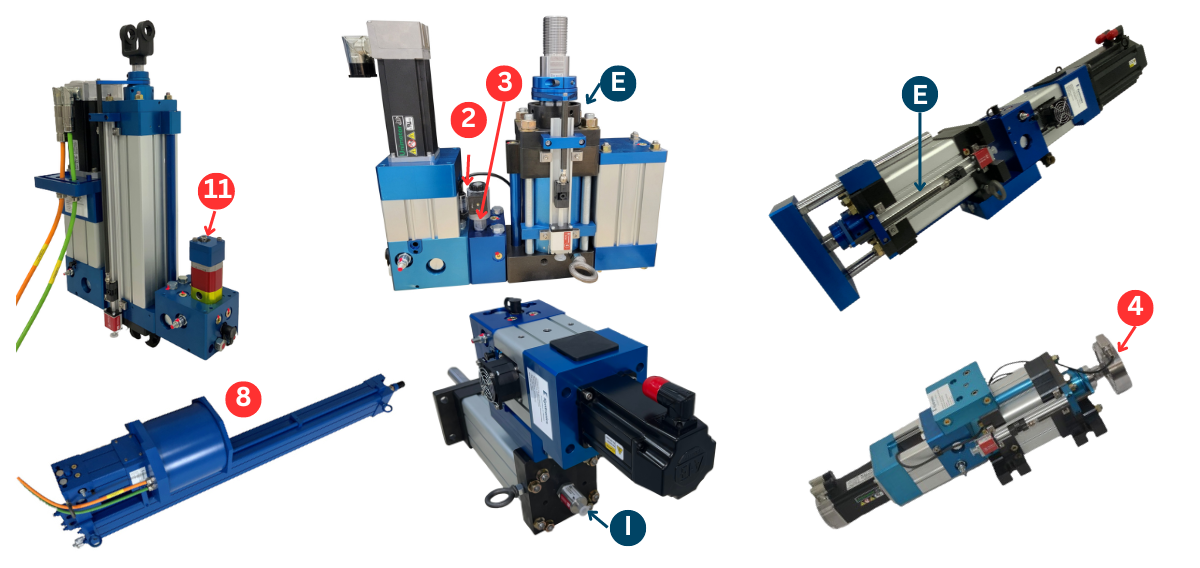

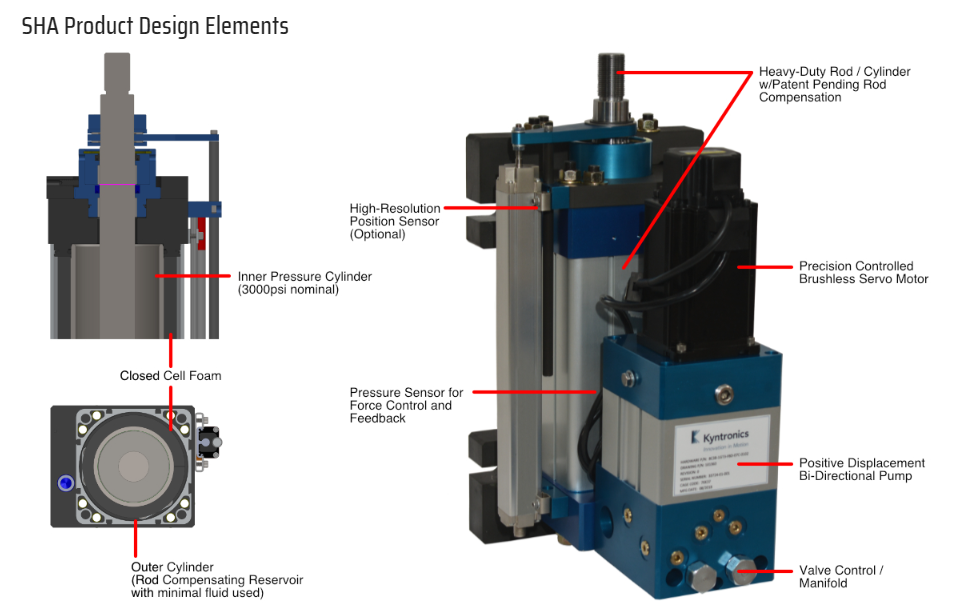

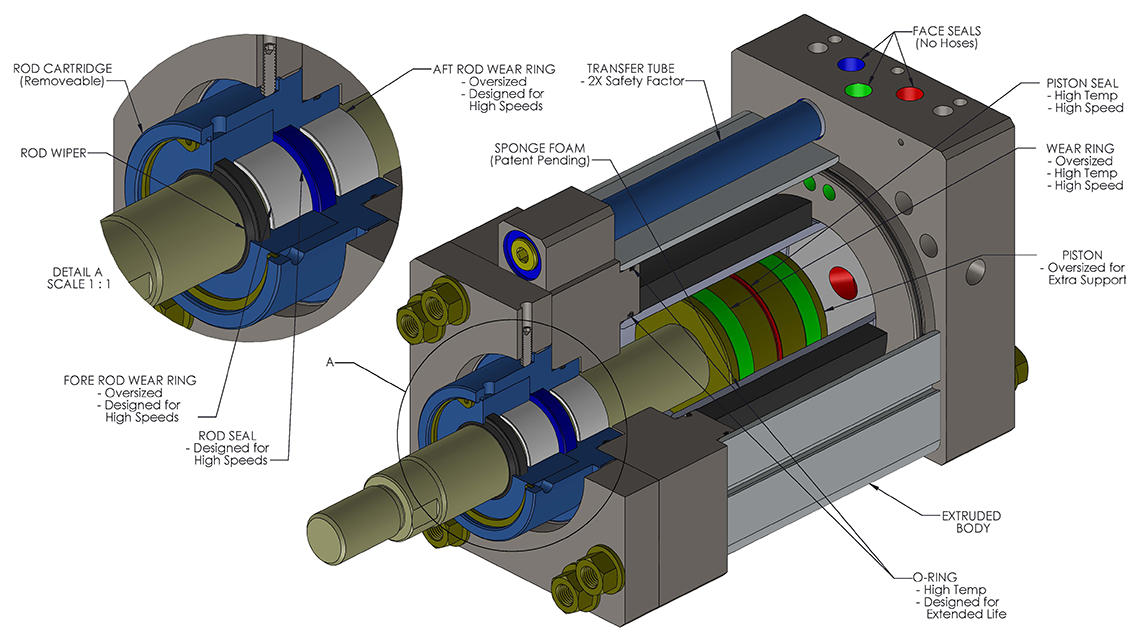

Design Features and Options

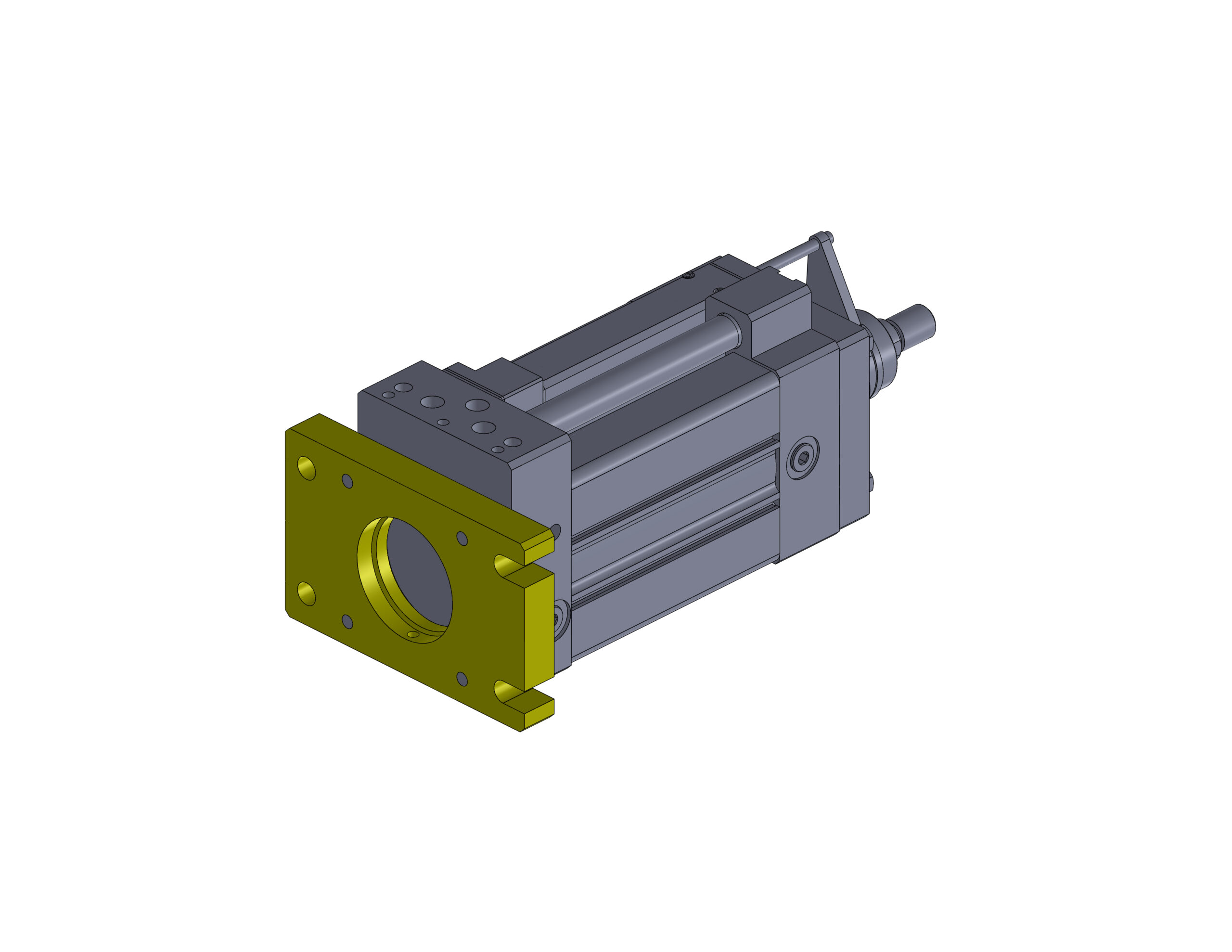

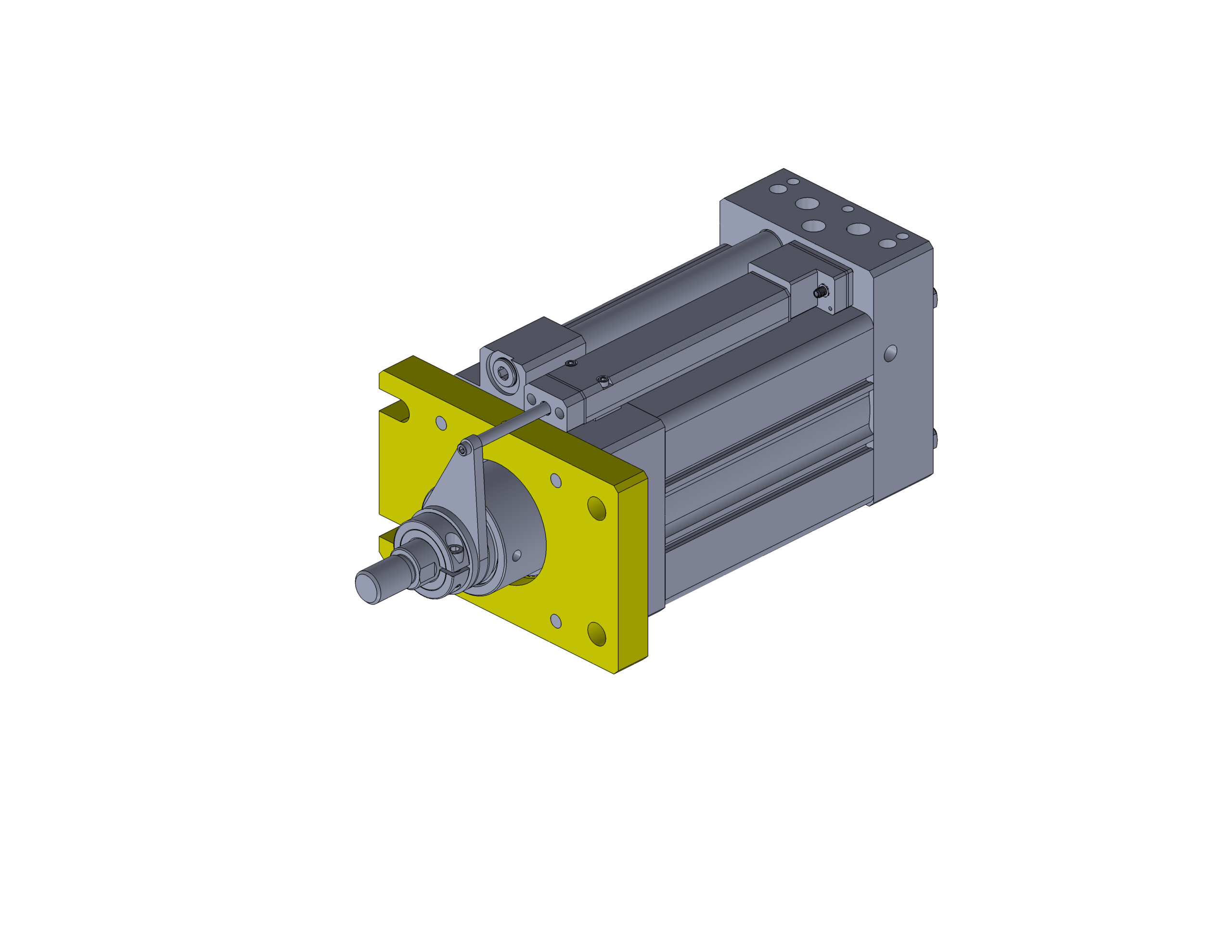

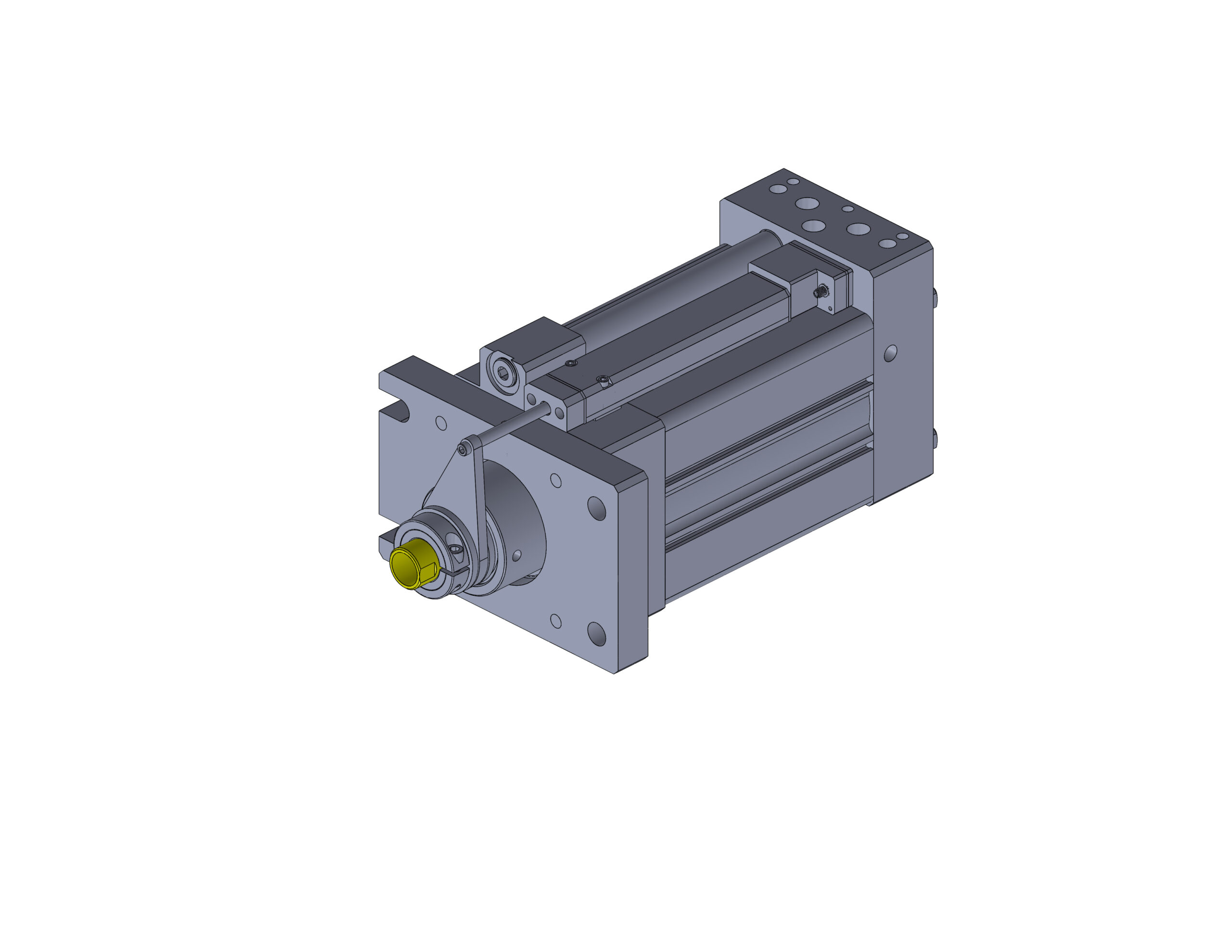

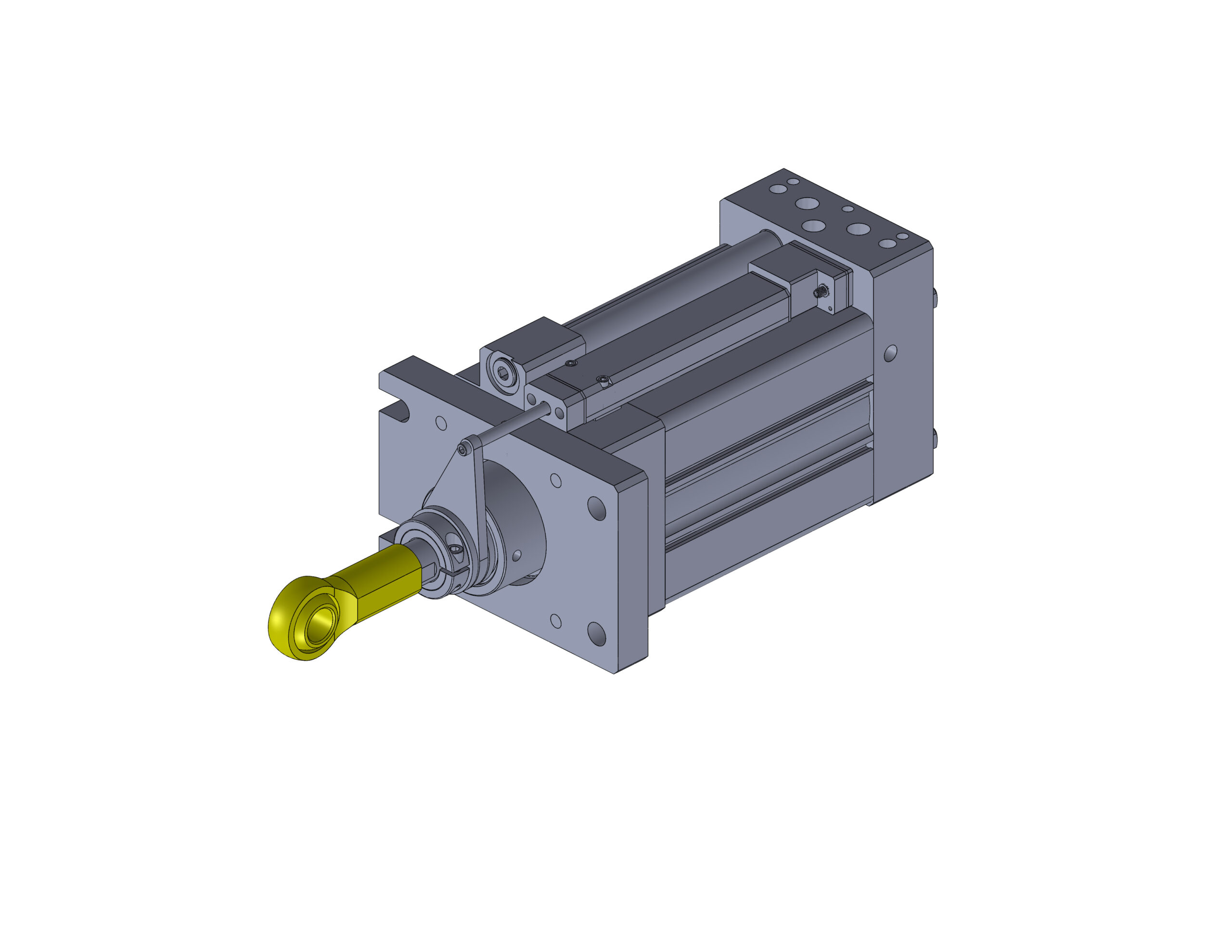

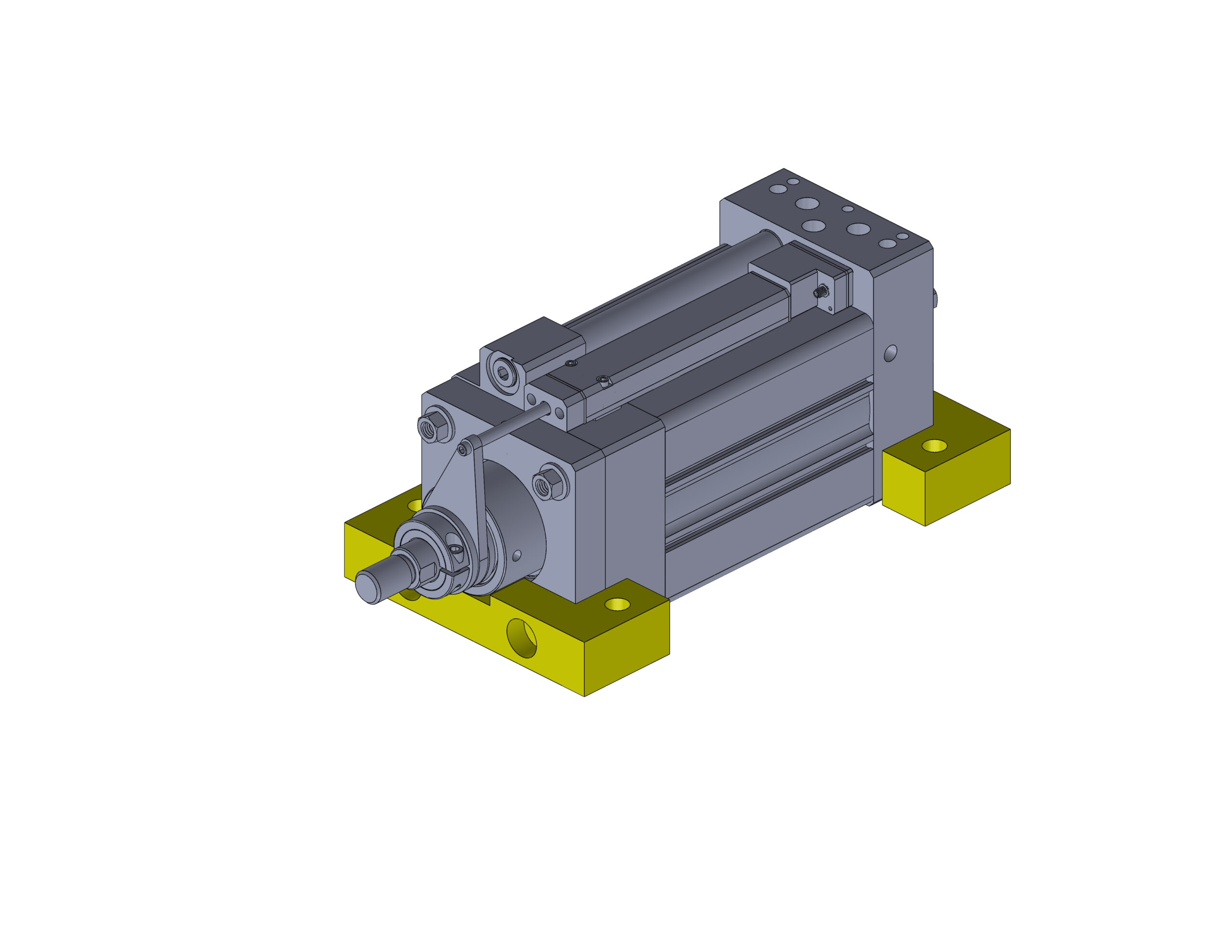

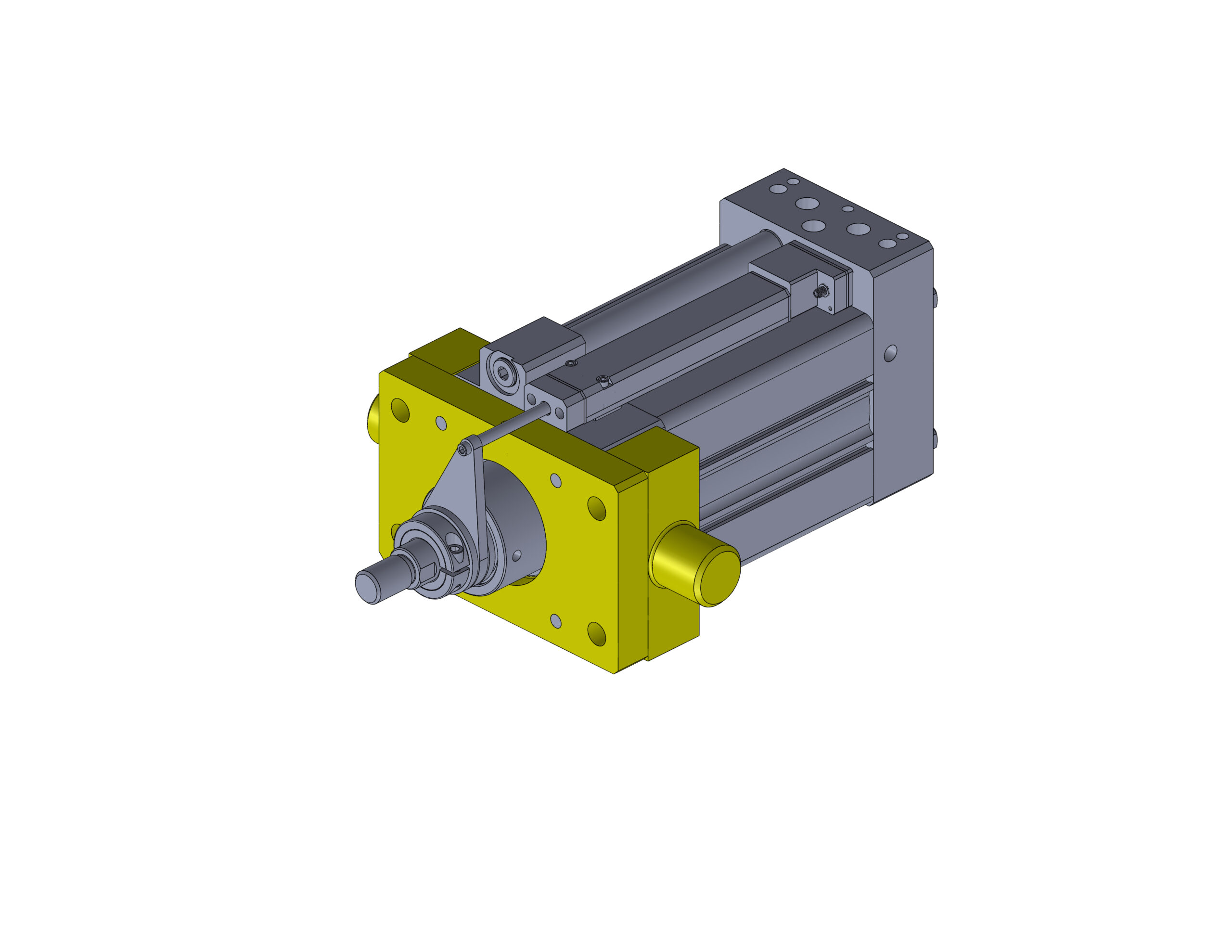

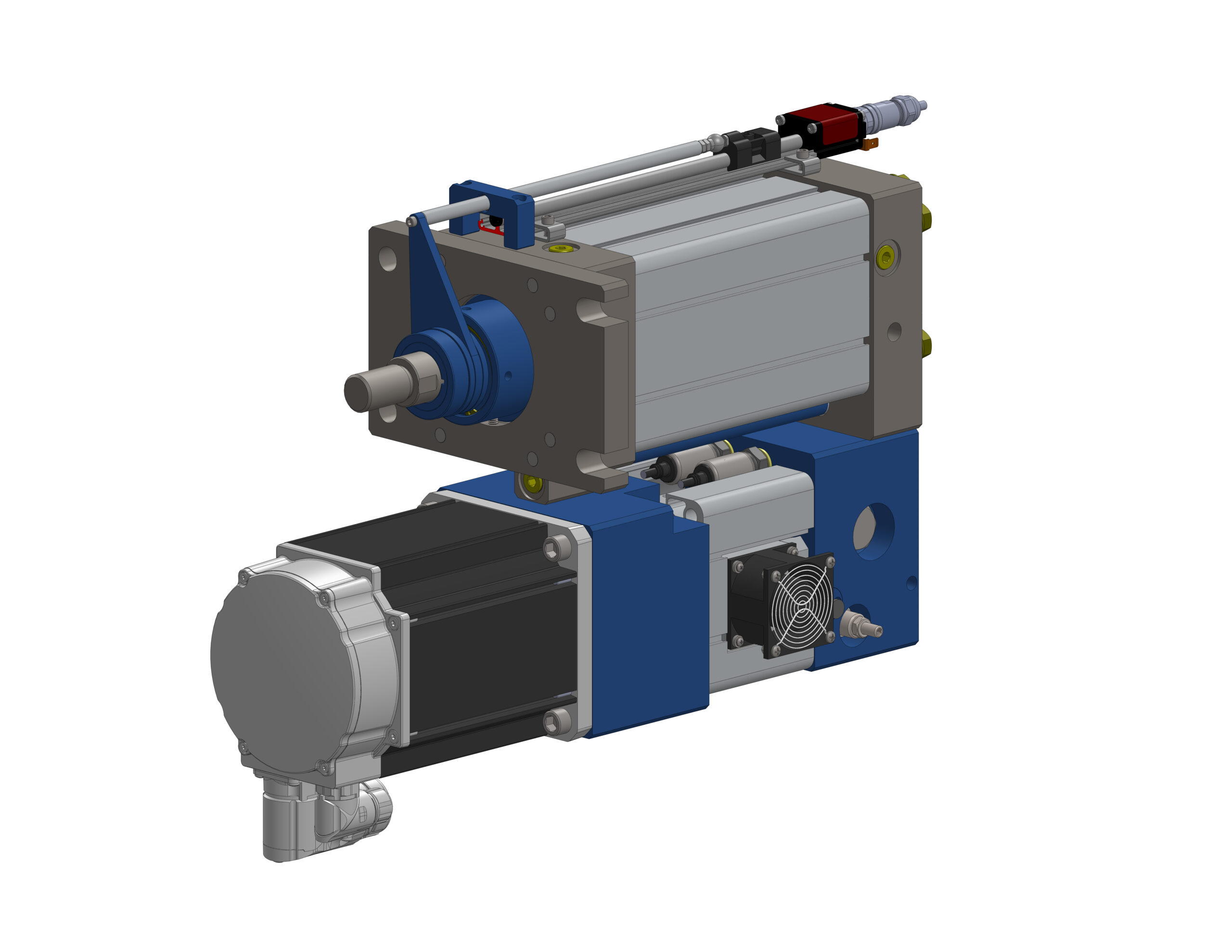

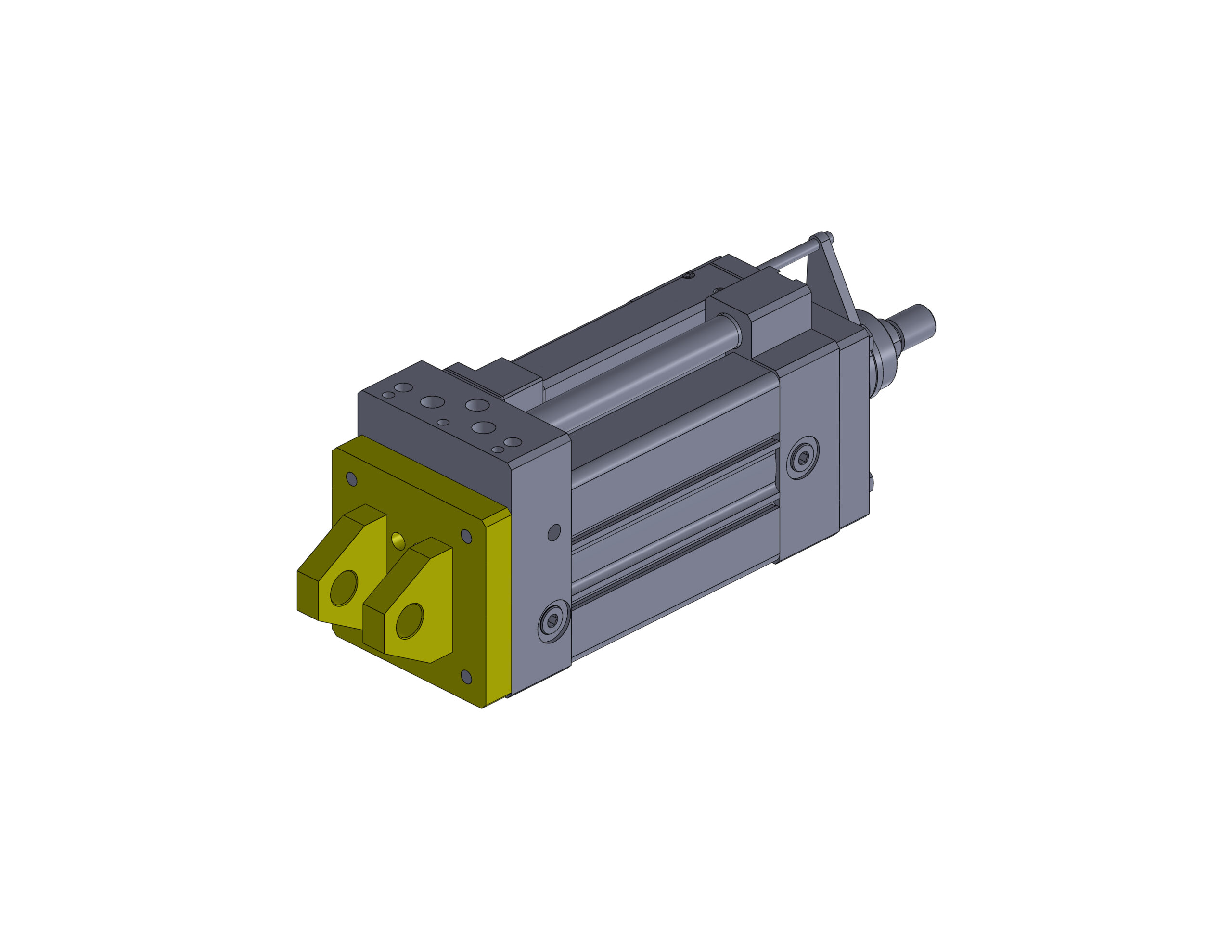

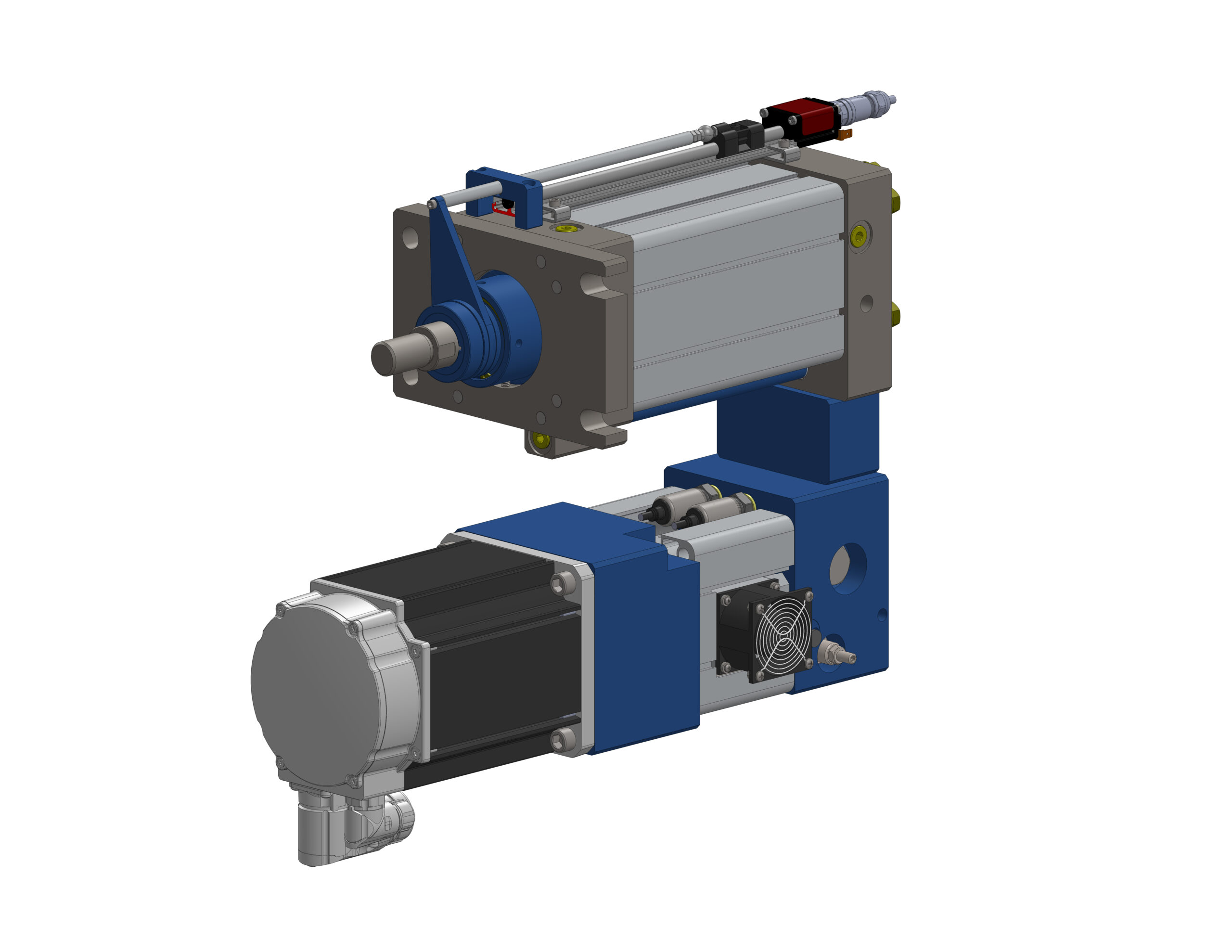

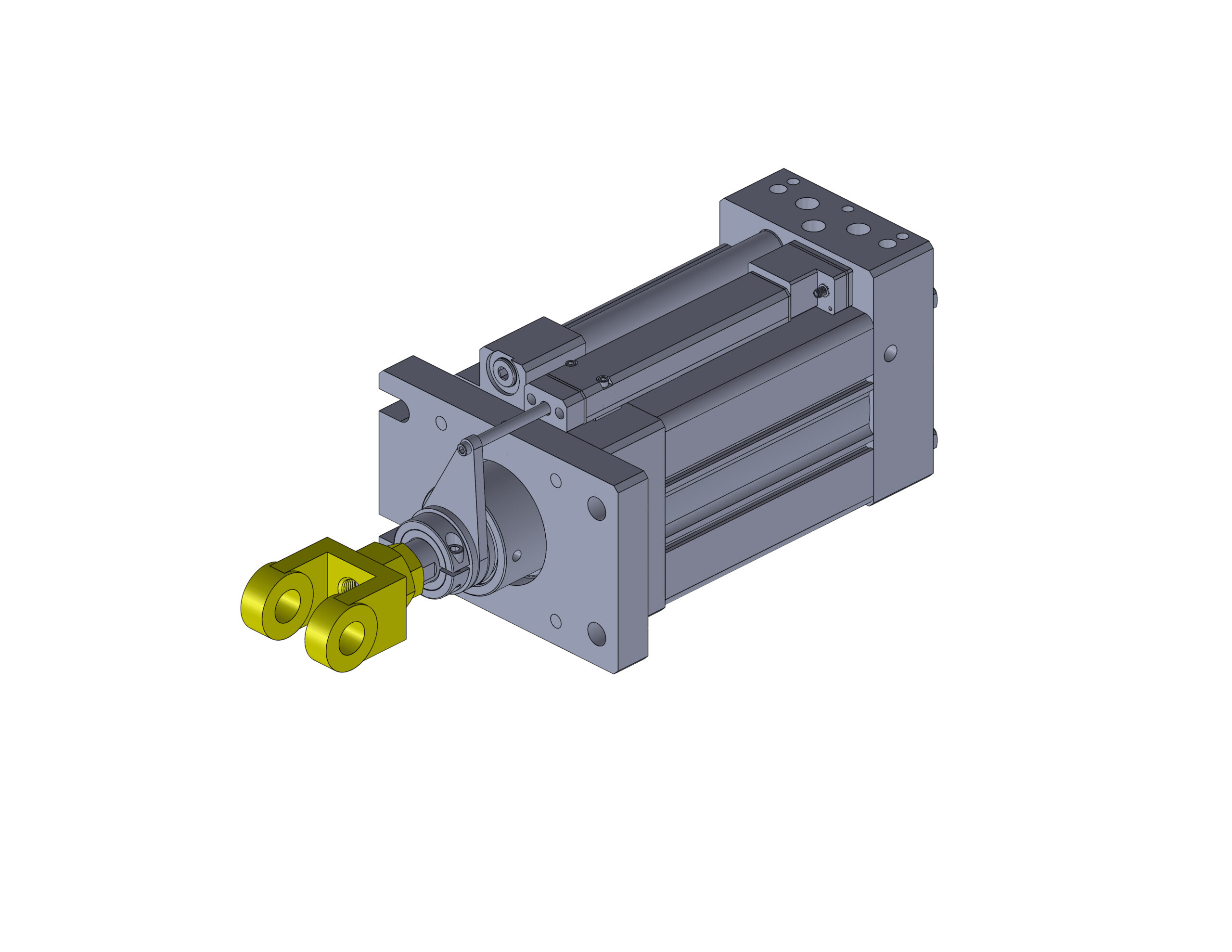

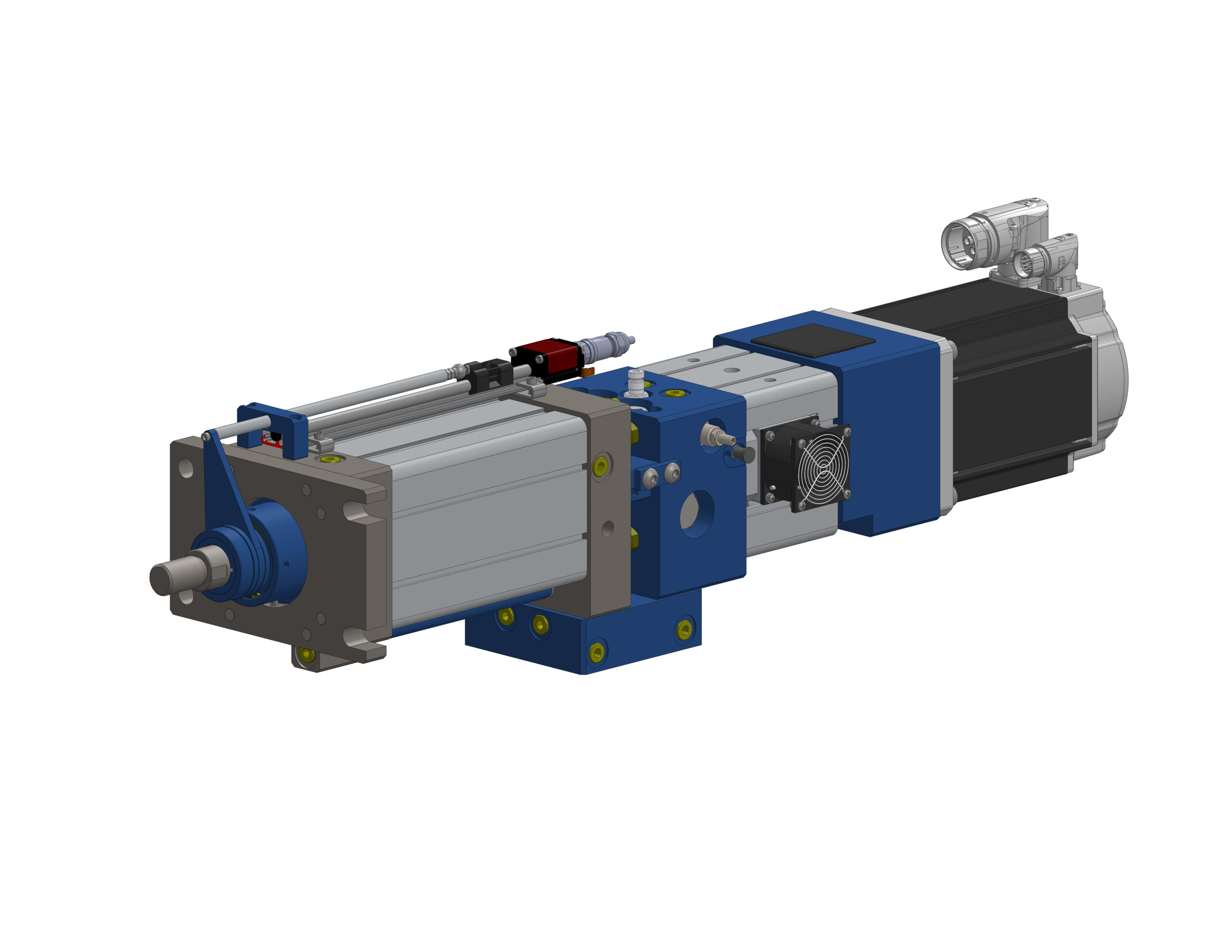

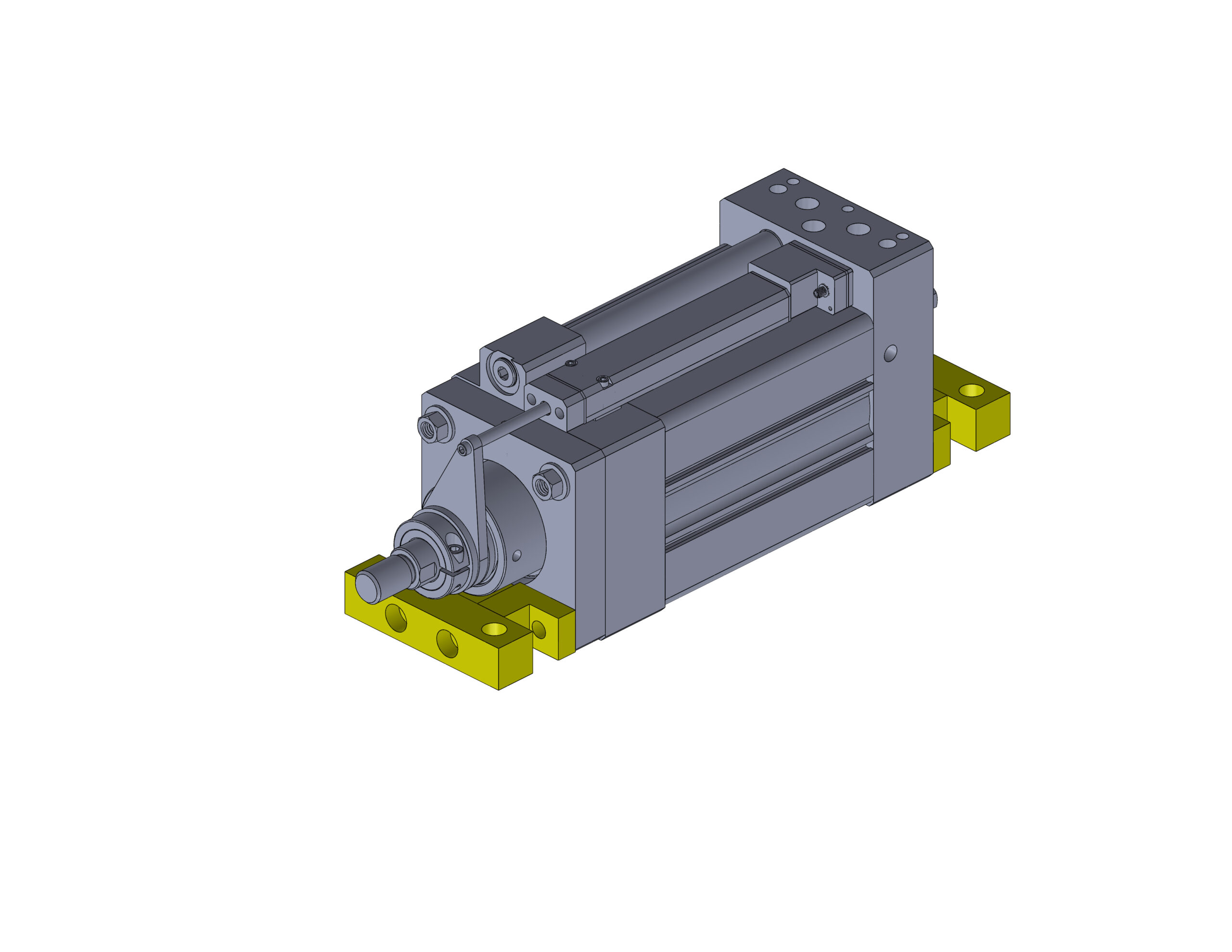

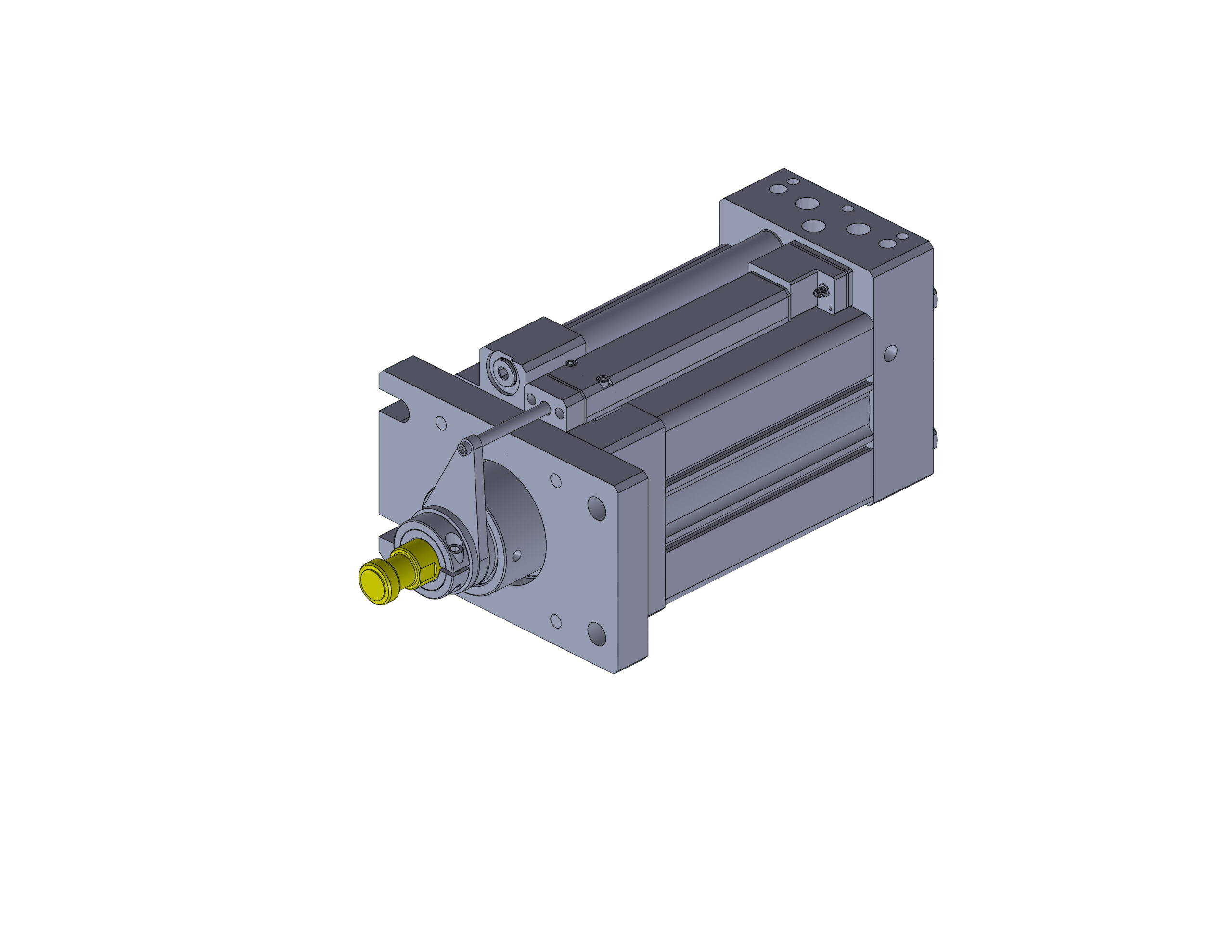

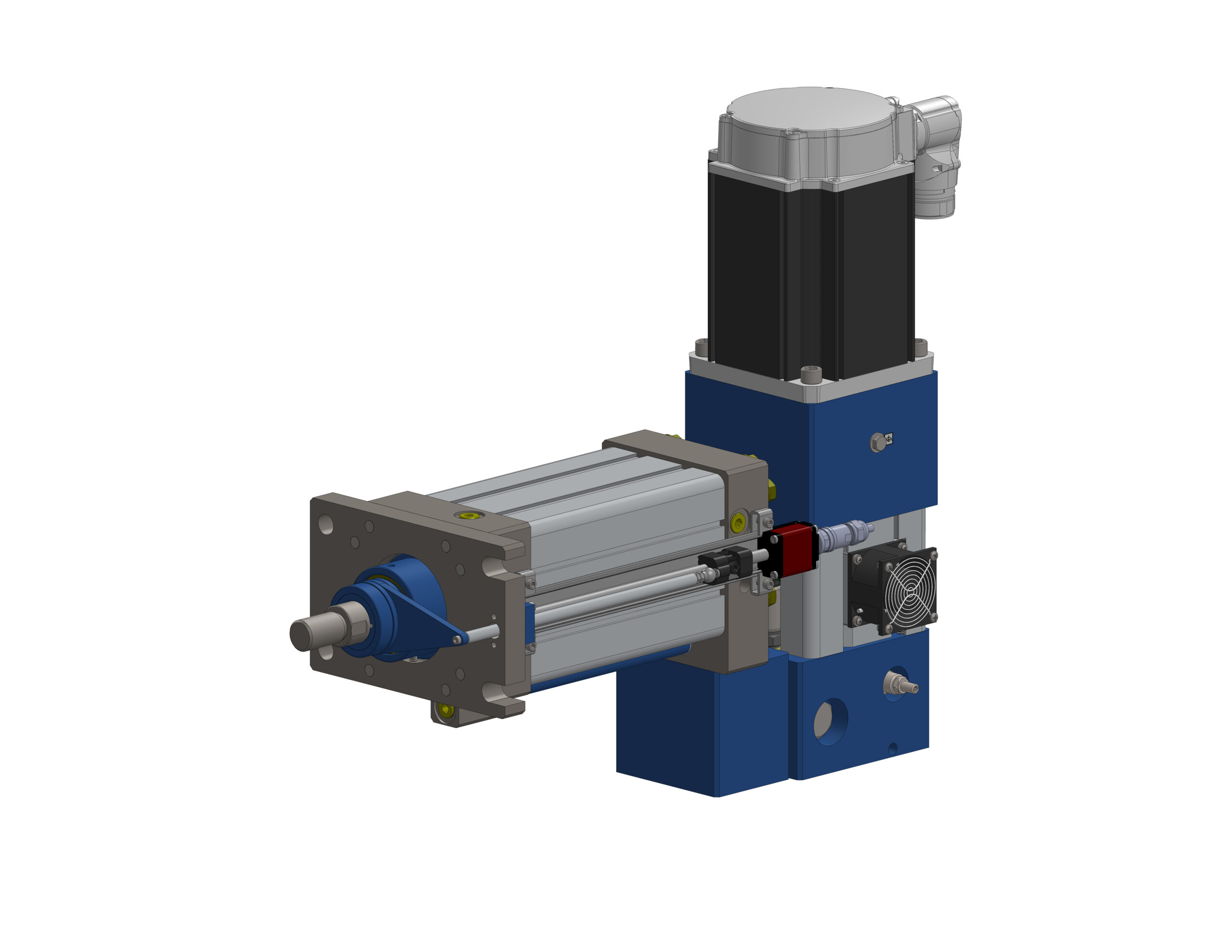

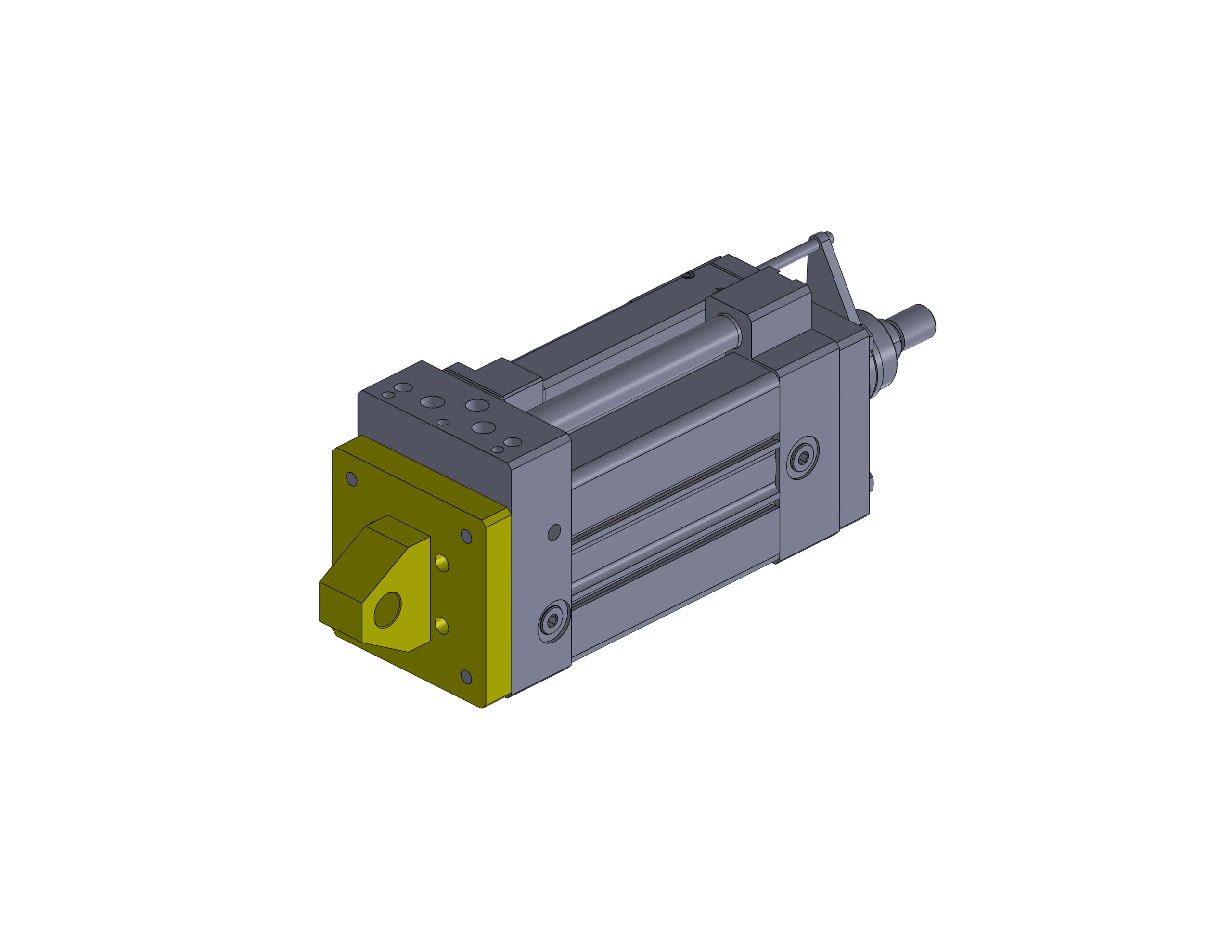

Mounting & Configuration Options

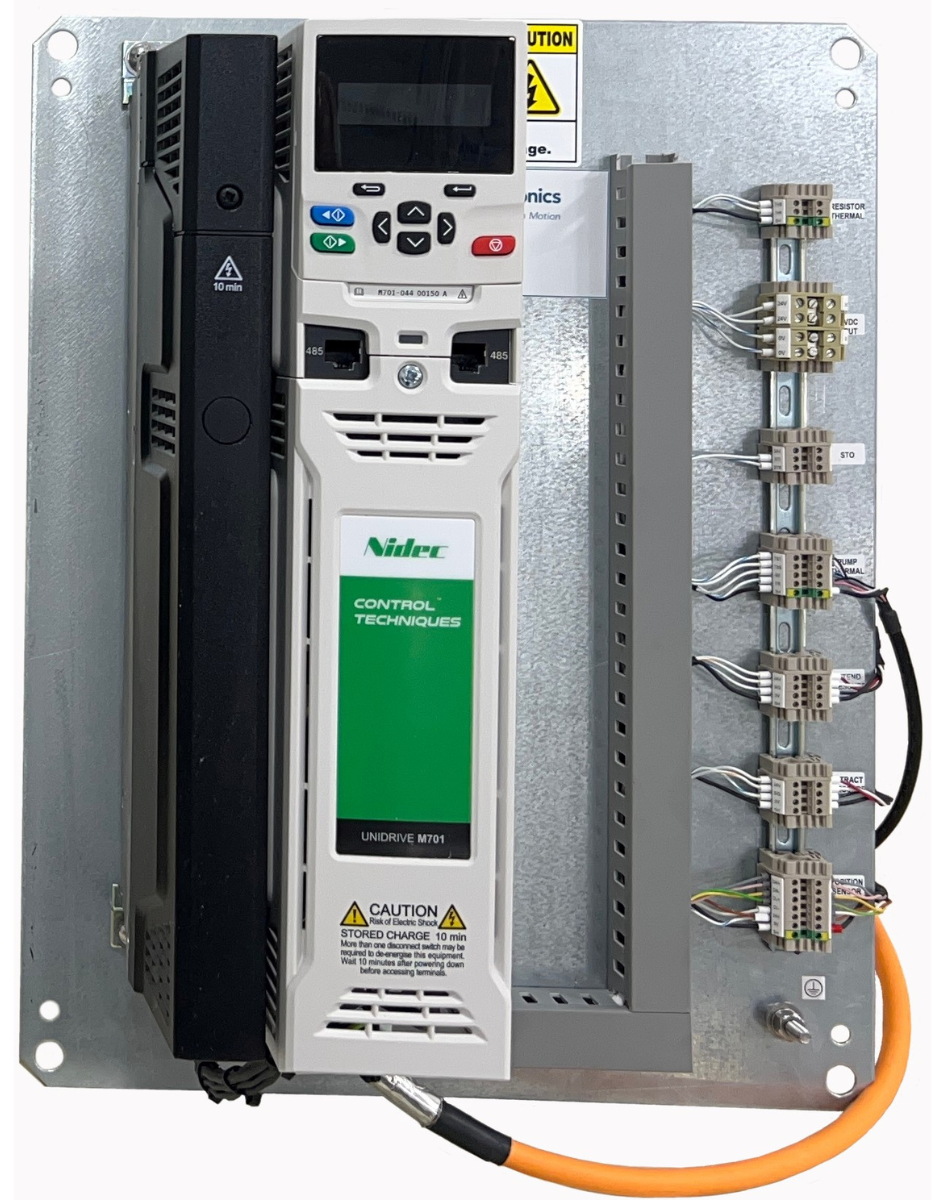

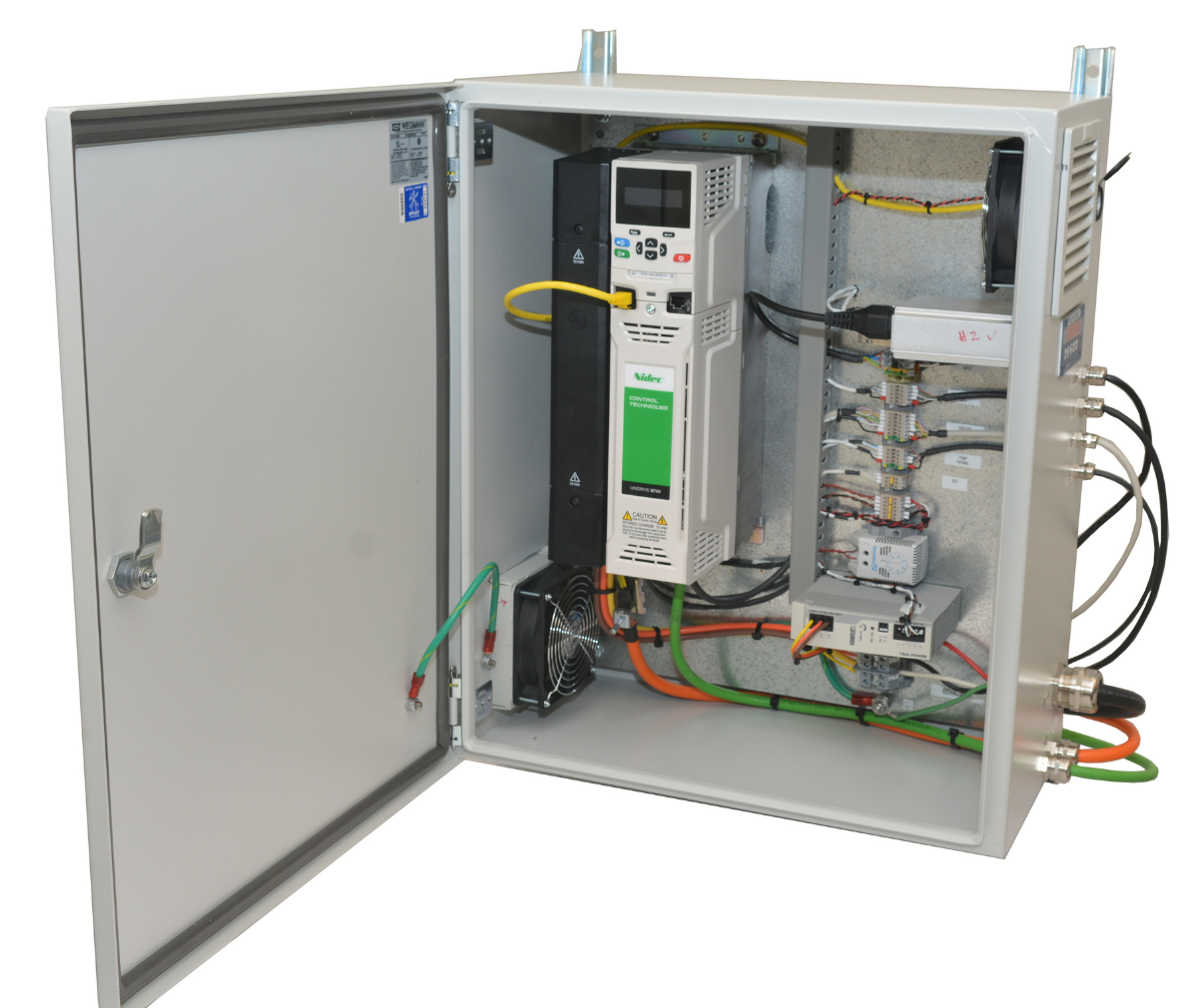

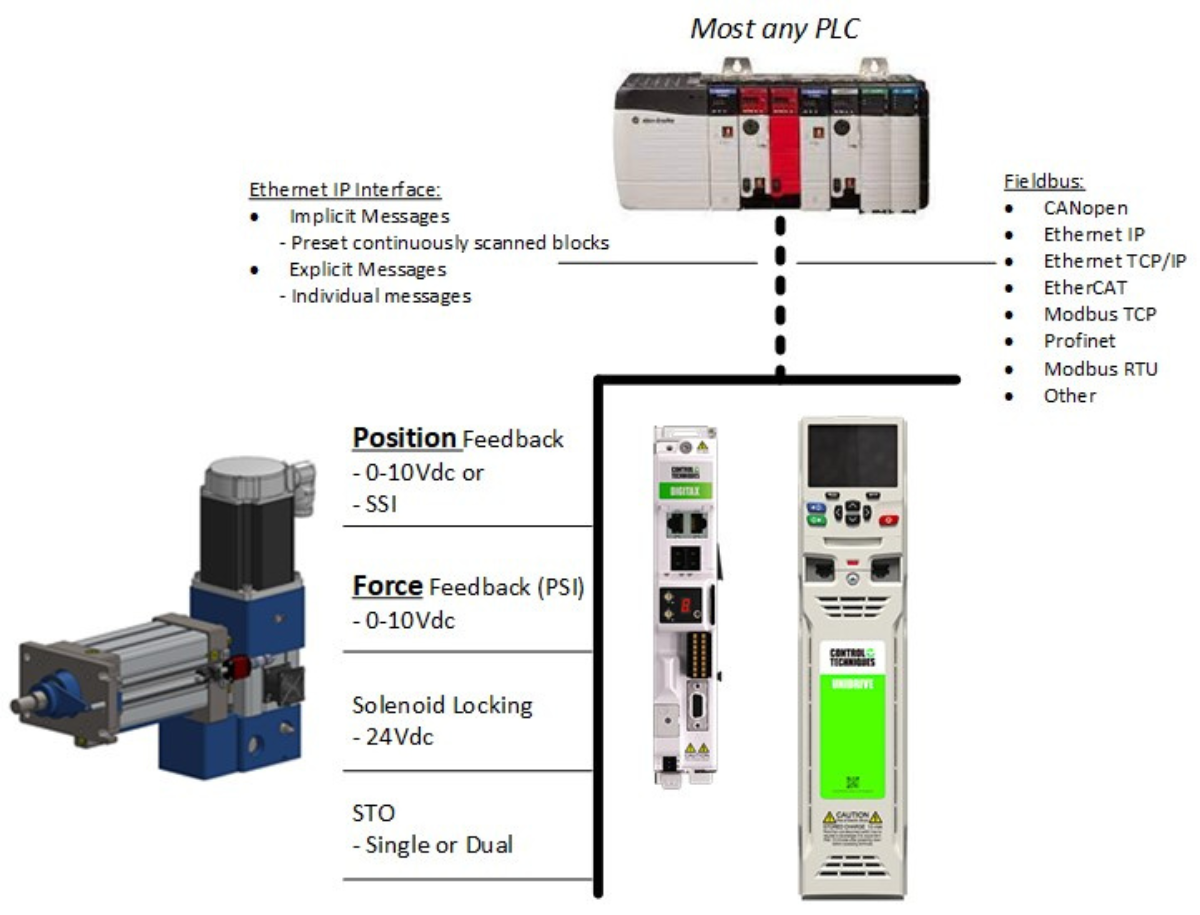

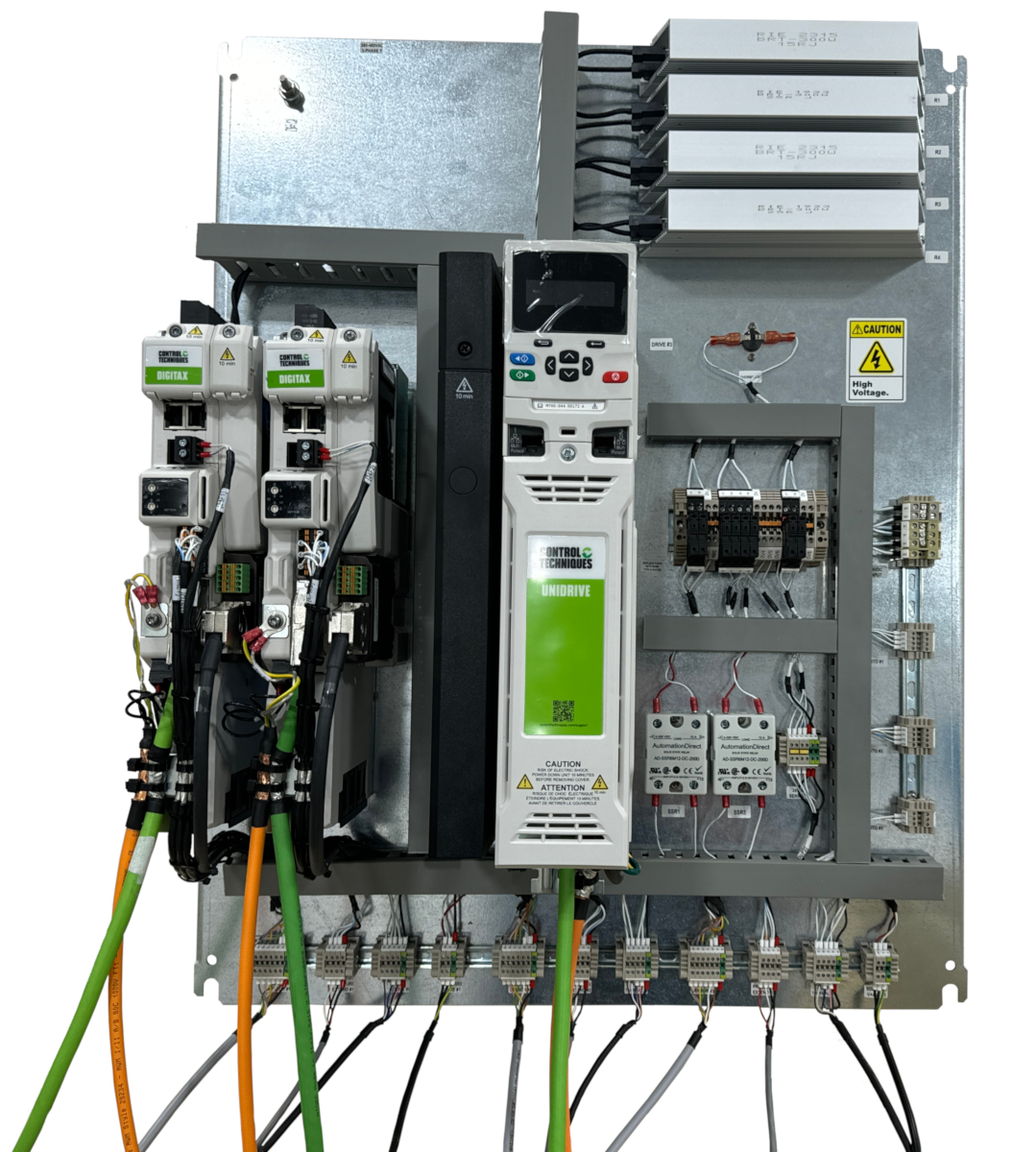

Control Package Options

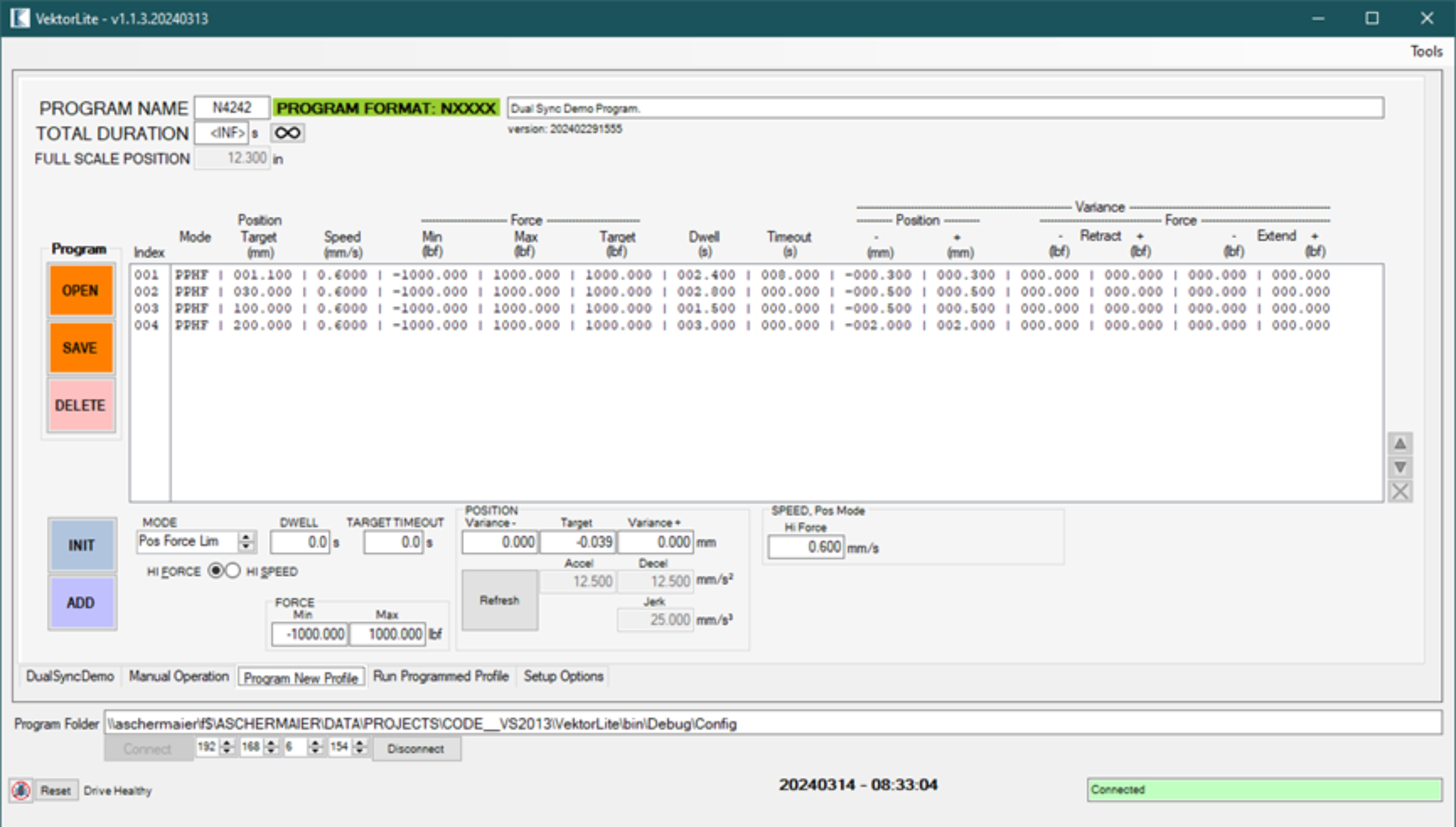

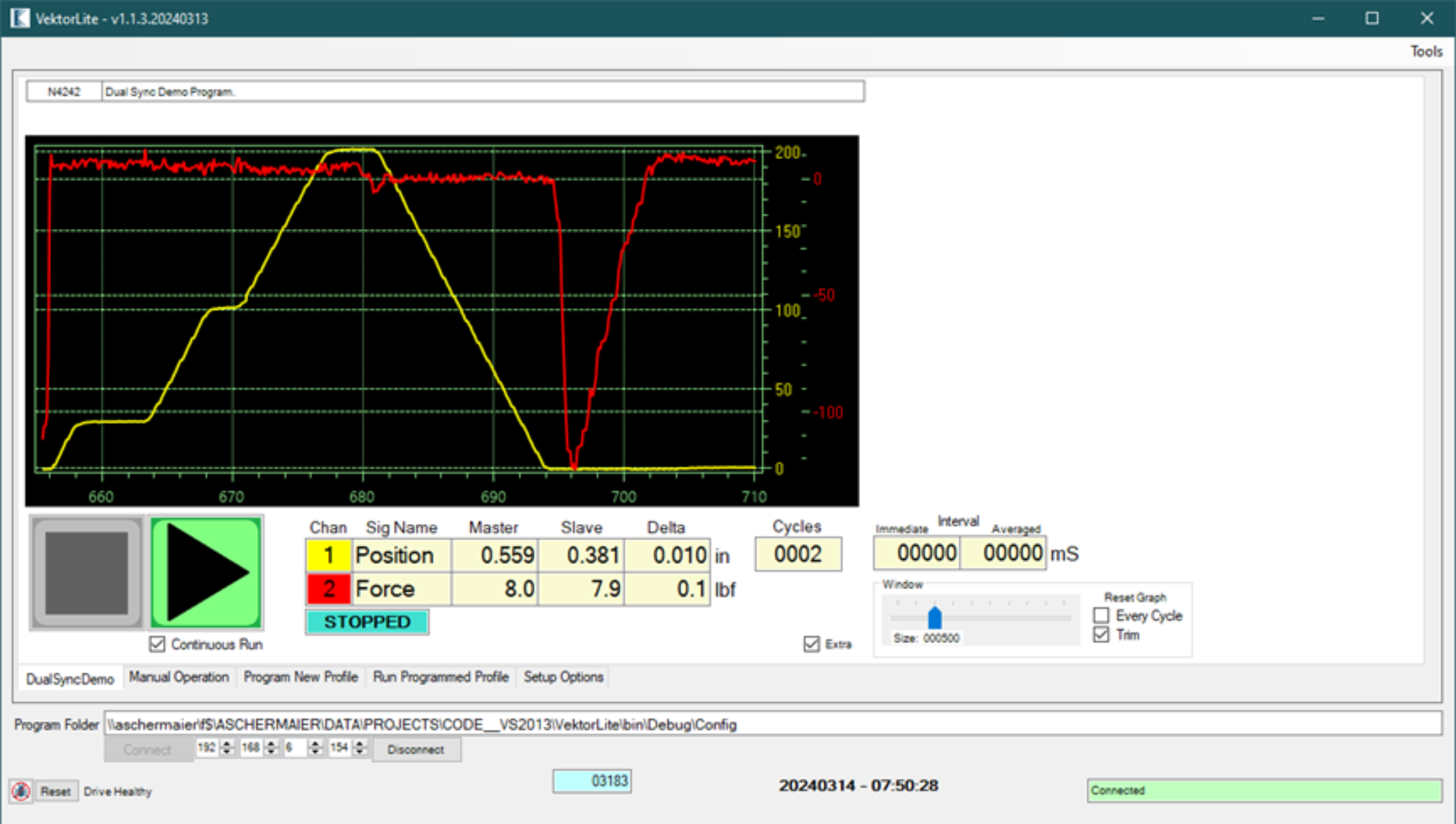

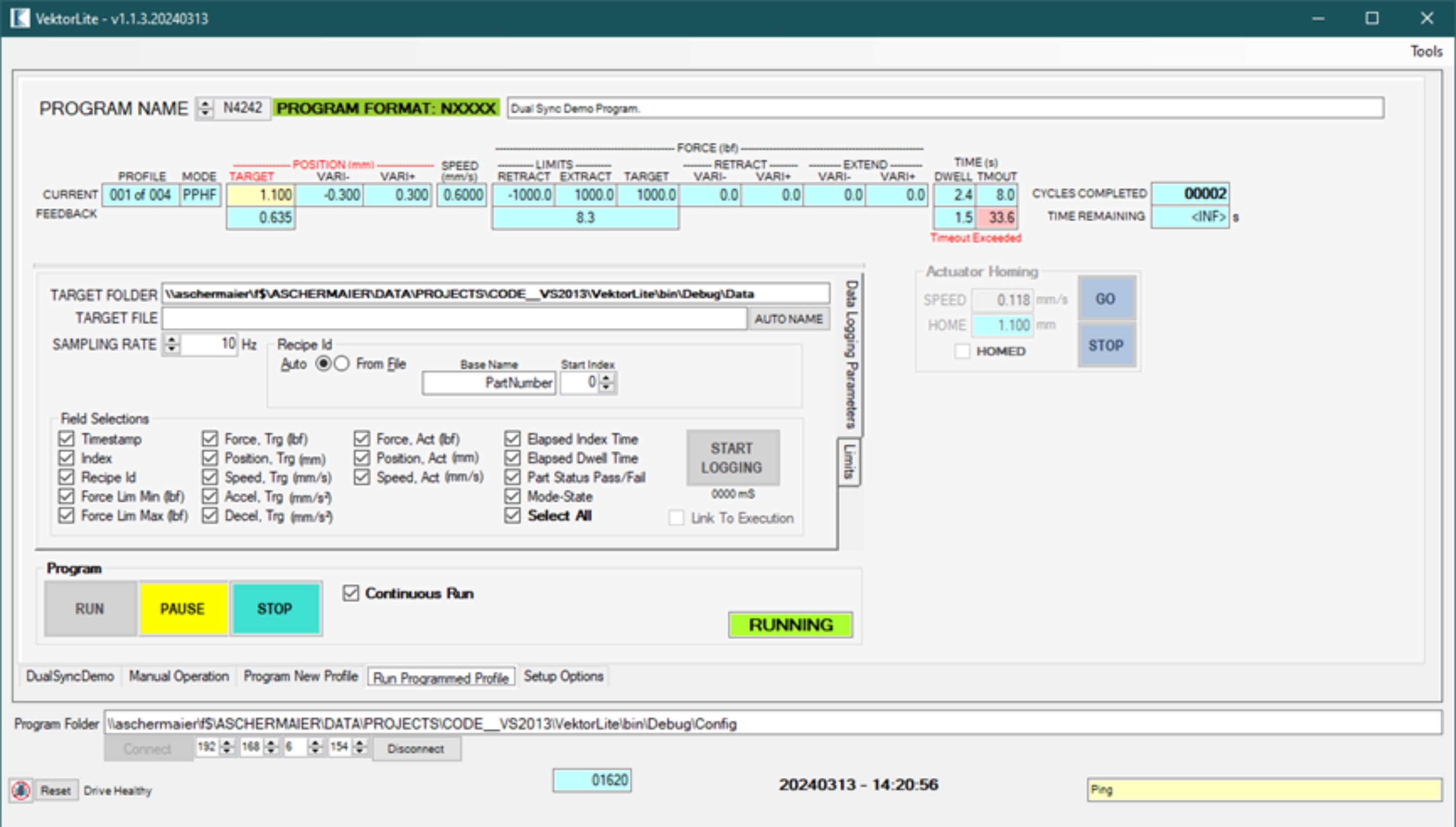

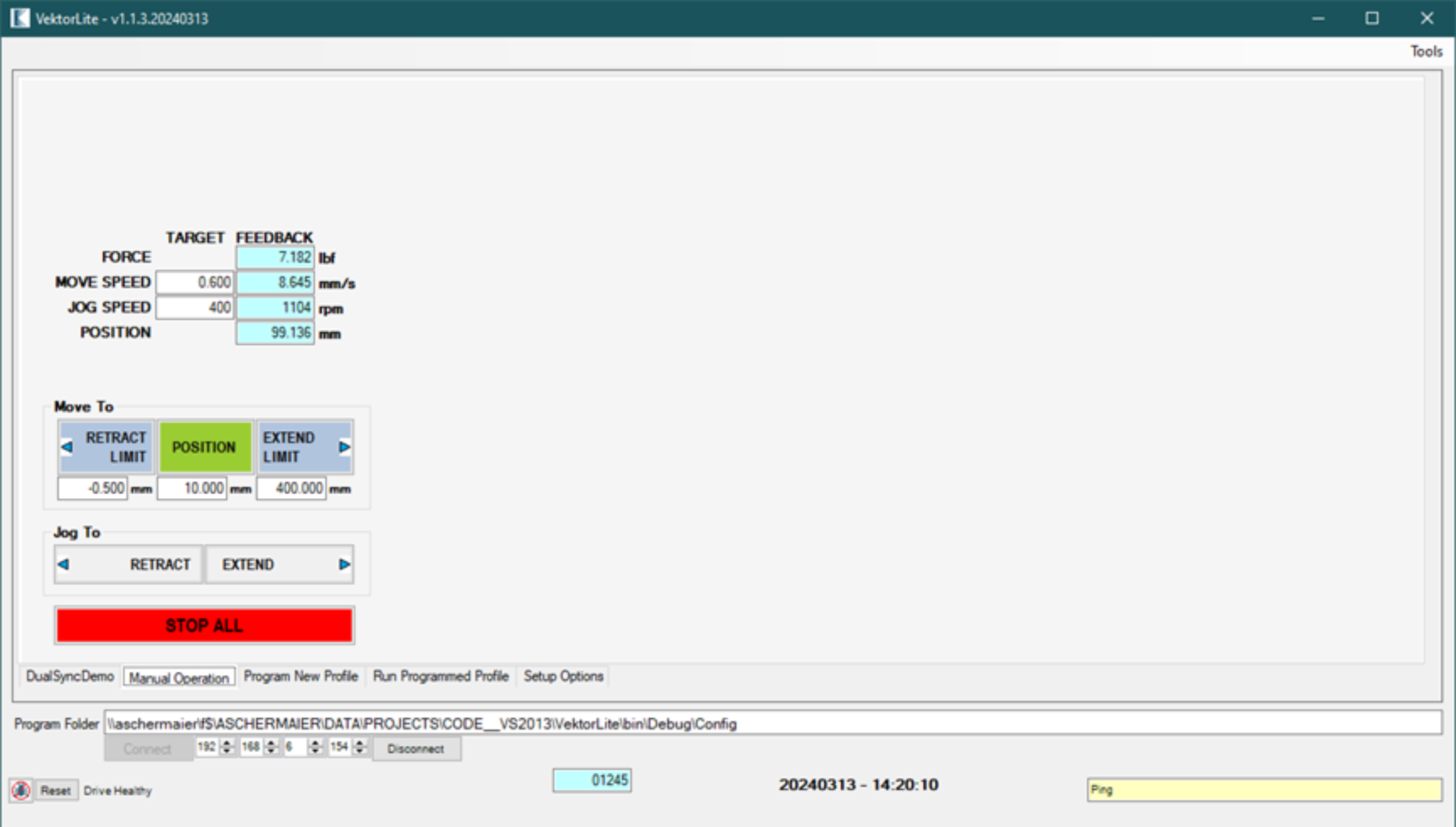

HMI Package Options

Overview of SHA Series Total Solution Actuation Systems Performance Ratings

Specifications based on the cylinder and the largest pump size

ModelBore Size in (mm)Rod Size in (mm)Frame Size in (mm)Maximum Force* lbf (kN)Maximum Speed in/s (mm/s)Maximum Stroke** in (mm)
SHA101 (25.4).63 (15.88)4.5 x 4.5 (114 x 114)2,356 (10.4)56.69 (1439.9)60.0 (1524)
SHA151.5 (38.1)1 (25.4)4.5 x 4.5 (114 x 114)5,301 (23.5)27.64 (702.1)60.0 (1524)
SHA202 (50.80)1 (25.4)4.5 x 4.5 (114 x 114)9,425 (41.9)11.51 (292.4)60.0 (1524)
SHA252.5 (63.5)1.38 (34.93)5.5 x 5.5 (140 x 140)14,726 (65.5)7.92 (201.2)60.0 (1524)
SHA323.25 (82.55)1.38 (34.93)5.5 x 5.5 (140 x 140)24,887 (110.7)3.98 (101.1)60.0 (1524)
SHA404 (101.6)2 (50.8)11.5 x 5.5 (292 x 140)37,699 (167.6)2.88 (73.2)60.0 (1524)
SHA505 (127.0)3 (76.2)12.9 x 10.7 (328 x 272)58,905 (262)2.16 (54.9)60.0 (1524)
SHA606 (152.4)3.5 (88.9)13.9 x 10.7 (353 x 272)84,823 (377.3)1.45 (36.8)60.0 (1524)
SHA808 (203.2)4 (101.6)21.3 x 10.7 (541 x 272)150,796 (670.7)0.72 (18.3)60.0 (1524)

* Maximum force only in extend
** Longer strokes up to 120in (3048mm) available. Contact Kyntronics

Specifications and CAD Models for SHA Series Total Solution Actuation Systems

To choose a CAD model you must first identify the force and speed closest to your application requirements.
SHA Series Total Solution Actuator Specifications and CAD Models:

Series / Model Number Alpha-Numeric Designation: SHAxxPyyMzz

SHAxx: designates the cylinder size – for example

  • SHA10 is a 1in cylinder
  • SHA32 is a 3.25in cylinder
  • SHA60 is a 6in cylinder

yy: designates the pump size which correlates to flow/speed

zz: designates the motor size – for example

  • M06 is a 60mm motor
  • M14 is a 142mm motor
  • M19 is a 190mm motor

If model name contains a D after M this designates DC version. If model name does not contain MD designates AC version

Series No./CADModelPumpMotorInput VoltageExtend Force
(lbf)		Retract Force
(lbf)		Extend Speed
(in/s)		Retract Speed
(in/s)		Max Cylinder Capacity
Extend (lbf)		Max Cylinder Capacity
Retract (lbf)
SHA10P02M06SHA10P02M06230 VAC, 460 VAC235614350.841.3823561436
SHA10P02M08SHA10P02M08230 VAC, 460 VAC235614350.841.3823561436
SHA10P02MD06SHA10P02MD0624Vdc, 48 VDC235614350.841.3823561436
SHA10P02MD08SHA10P02MD0824Vdc, 48 VDC235614350.841.3823561436
SHA10P05M08SHA10P05M08230 VAC, 460 VAC235614351.963.2123561436
SHA10P05MD08SHA10P05MD0824Vdc, 48 VDC220613441.963.2123561436
SHA10P05M06SHA10P05M06230 VAC, 460 VAC203012371.963.2123561436
SHA10P05MD06SHA10P05MD0624Vdc, 48 VDC11637081.963.2123561436
SHA10P07M08SHA10P07M08230 VAC, 460 VAC235614353.225.2823561436
SHA10P07MD08SHA10P07MD0824Vdc, 48 VDC13428183.225.2823561436
SHA10P07M06SHA10P07M06230 VAC, 460 VAC12367533.225.2823561436
SHA10P07MD06SHA10P07MD0624Vdc, 48 VDC7074313.225.2823561436
SHA10P11M08SHA10P11M08230 VAC, 460 VAC169310325.178.4923561436
SHA10P11MD08SHA10P11MD0824Vdc, 48 VDC8345085.178.4923561436
SHA10P11M06SHA10P11M06230 VAC, 460 VAC7684685.178.4923561436
SHA10P11MD06SHA10P11MD0624Vdc, 48 VDC4402685.178.4923561436
SHA10P13M08SHA10P13M08230 VAC, 460 VAC10996707.9713.0823561436
SHA10P13M08SHA10P13MD0824Vdc, 48 VDC5413307.9713.0823561436
SHA10P13M06SHA10P13M06230 VAC, 460 VAC4983037.9713.0823561436
SHA10P13MD06SHA10P13MD0624Vdc, 48 VDC2851747.9713.0823561436
SHA10P21M14SHA10P21M14230 VAC, 460 VAC235614359.0914.9223561436
SHA10P21M19SHA10P21M19230 VAC, 460 VAC235614359.0914.9223561436
SHA10P21M11SHA10P21M11230 VAC, 460 VAC208712729.0914.9223561436
SHA10P21MD11SHA10P21MD1124Vdc, 48 VDC13518239.0914.9223561436
SHA10P21M08SHA10P21M08230 VAC, 460 VAC9645879.0914.9223561436
SHA10P21MD10SHA10P21MD1024Vdc, 48 VDC7554609.0914.9223561436
SHA10P21MD08SHA10P21MD0824Vdc, 48 VDC4752899.0914.9223561436
SHA10P23M14SHA10P23M14230 VAC, 460 VAC2356143510.9117.923561436
SHA10P23M19SHA10P23M19230 VAC, 460 VAC2356143510.9117.923561436
SHA10P23M11SHA10P23M11230 VAC, 460 VAC1739106010.9117.923561436
SHA10P23MD11SHA10P23MD1124Vdc, 48 VDC112668610.9117.923561436
SHA10P23M08SHA10P23M08230 VAC, 460 VAC80348910.9117.923561436
SHA10P23MD10SHA10P23MD1024Vdc, 48 VDC62938310.9117.923561436
SHA10P23MD08SHA10P23MD0824Vdc, 48 VDC39524110.9117.923561436
SHA10P27M19SHA10P27M19230 VAC, 460 VAC2356143514.5523.8723561436
SHA10P27M14SHA10P27M14230 VAC, 460 VAC2261137814.5523.8723561436
SHA10P27M11SHA10P27M11230 VAC, 460 VAC130479514.5523.8723561436
SHA10P27MD11SHA10P27MD1124Vdc, 48 VDC84451414.5523.8723561436
SHA10P27M08SHA10P27M08230 VAC, 460 VAC60236714.5523.8723561436
SHA10P27MD10SHA10P27MD1024Vdc, 48 VDC47228714.5523.8723561436
SHA10P27MD08SHA10P27MD0824Vdc, 48 VDC29618014.5523.8723561436
SHA10P31M19SHA10P31M19230 VAC, 460 VAC2356143520.4533.5723561436
SHA10P31M14SHA10P31M14230 VAC, 460 VAC160897920.4533.5723561436
SHA10P31M11SHA10P31M11230 VAC, 460 VAC92756520.4533.5723561436
SHA10P31MD11SHA10P31MD1124Vdc, 48 VDC60036620.4533.5723561436
SHA10P31M08SHA10P31M08230 VAC, 460 VAC42826120.4533.5723561436
SHA10P31MD10SHA10P31MD1024Vdc, 48 VDC33520420.4533.5723561436
SHA10P31MD08SHA10P31MD0824Vdc, 48 VDC21112820.4533.5723561436
SHA10P34M19SHA10P34M19230 VAC, 460 VAC2248137026.3643.2623561436
SHA10P34M14SHA10P34M14230 VAC, 460 VAC124776026.3643.2623561436
SHA10P34M11SHA10P34M11230 VAC, 460 VAC71943826.3643.2623561436
SHA10P34MD11SHA10P34MD1124Vdc, 48 VDC46628426.3643.2623561436
SHA10P34M08SHA10P34M08230 VAC, 460 VAC33220226.3643.2623561436
SHA10P34MD10SHA10P34MD1024Vdc, 48 VDC26015826.3643.2623561436
SHA10P34MD08SHA10P34MD0824Vdc, 48 VDC1639926.3643.2623561436
SHA10P36M19SHA10P36M19230 VAC, 460 VAC1716104534.5456.6923561436
SHA10P36M14SHA10P36M14230 VAC, 460 VAC95258034.5456.6923561436
SHA10P36M11SHA10P36M11230 VAC, 460 VAC54933434.5456.6923561436
SHA10P36MD11SHA10P36MD1124Vdc, 48 VDC35521634.5456.6923561436
SHA10P36M08SHA10P36M08230 VAC, 460 VAC25315434.5456.6923561436
SHA10P36MD10SHA10P36MD1024Vdc, 48 VDC19812134.5456.6923561436
SHA10P36MD08SHA10P36MD0824Vdc, 48 VDC1257634.5456.6923561436
SHA15P02M06SHA15P02M06230 VAC, 460 VAC530129450.370.6753012945
SHA15P02M08SHA15P02M08230 VAC, 460 VAC530129450.370.6753012945
SHA15P02MD06SHA15P02MD0624Vdc, 48 VDC530129450.370.6753012945
SHA15P02MD08SHA15P02MD0824Vdc, 48 VDC530129450.370.6753012945
SHA15P05M08SHA15P05M08230 VAC, 460 VAC530129450.871.5753012945
SHA15P05MD08SHA15P05MD0824Vdc, 48 VDC496327570.871.5753012945
SHA15P05M06SHA15P05M06230 VAC, 460 VAC456925380.871.5753012945
SHA15P05MD06SHA15P05MD0624Vdc, 48 VDC261614530.871.5753012945
SHA15P07M08SHA15P07M08230 VAC, 460 VAC530129451.432.5753012945
SHA15P07MD08SHA15P07MD0824Vdc, 48 VDC302116781.432.5753012945
SHA15P07M06SHA15P07M06230 VAC, 460 VAC278115451.432.5753012945
SHA15P07MD06SHA15P07MD0624Vdc, 48 VDC15928841.432.5753012945
SHA15P11M08SHA15P11M08230 VAC, 460 VAC381121172.34.1453012945
SHA15P11MD08SHA15P11MD0824Vdc, 48 VDC187810432.34.1453012945
SHA15P11M06SHA15P11M06230 VAC, 460 VAC17289602.34.1453012945
SHA15P11MD06SHA15P11MD0624Vdc, 48 VDC9905502.34.1453012945
SHA15P13M08SHA15P13M08230 VAC, 460 VAC247413743.546.3853012945
SHA15P13MD08SHA15P13MD0824Vdc, 48 VDC12196773.546.3853012945
SHA15P13M06SHA15P13M06230 VAC, 460 VAC11226233.546.3853012945
SHA15P13MD06SHA15P13MD0624Vdc, 48 VDC6423573.546.3853012945
SHA15P21M14SHA15P21M14230 VAC, 460 VAC530129454.047.2753012945
SHA15P21M19SHA15P21M19230 VAC, 460 VAC530129454.047.2753012945
SHA15P21M11SHA15P21M11230 VAC, 460 VAC469626094.047.2753012945
SHA15P21MD11SHA15P21MD1124Vdc, 48 VDC304116894.047.2753012945
SHA15P21M08SHA15P21M08230 VAC, 460 VAC216912054.047.2753012945
SHA15P21MD10SHA15P21MD1024Vdc, 48 VDC16999444.047.2753012945
SHA15P21MD08SHA15P21MD0824Vdc, 48 VDC10695934.047.2753012945
SHA15P23M14SHA15P23M14230 VAC, 460 VAC530129454.858.7353012945
SHA15P23M19SHA15P23M19230 VAC, 460 VAC530129454.858.7353012945
SHA15P23M11SHA15P23M11230 VAC, 460 VAC391421744.858.7353012945
SHA15P23MD11SHA15P23MD1124Vdc, 48 VDC253414084.858.7353012945
SHA15P23M08SHA15P23M08230 VAC, 460 VAC180710044.858.7353012945
SHA15P23MD10SHA15P23MD1024Vdc, 48 VDC14167864.858.7353012945
SHA15P23MD08SHA15P23MD0824Vdc, 48 VDC8904944.858.7353012945
SHA15P27M19SHA15P27M19230 VAC, 460 VAC530129456.4611.6453012945
SHA15P27M14SHA15P27M14230 VAC, 460 VAC508828266.4611.6453012945
SHA15P27M11SHA15P27M11230 VAC, 460 VAC293516306.4611.6453012945
SHA15P27MD11SHA15P27MD1124Vdc, 48 VDC190110566.4611.6453012945
SHA15P27M08SHA15P27M08230 VAC, 460 VAC13557536.4611.6453012945
SHA15P27MD10SHA15P27MD1024Vdc, 48 VDC10625906.4611.6453012945
SHA15P27MD08SHA15P27MD0824Vdc, 48 VDC6683716.4611.6453012945
SHA15P31M19SHA15P31M19230 VAC, 460 VAC530129459.0916.3653012945
SHA15P31M14SHA15P31M14230 VAC, 460 VAC361820109.0916.3653012945
SHA15P31M11SHA15P31M11230 VAC, 460 VAC208711599.0916.3653012945
SHA15P31MD11SHA15P31MD1124Vdc, 48 VDC13517519.0916.3653012945
SHA15P31M08SHA15P31M08230 VAC, 460 VAC9645359.0916.3653012945
SHA15P31MD10SHA15P31MD1024Vdc, 48 VDC7554199.0916.3653012945
SHA15P31MD08SHA15P31MD0824Vdc, 48 VDC4752639.0916.3653012945
SHA15P34M19SHA15P34M19230 VAC, 460 VAC5059281011.7221.0953012945
SHA15P34M14SHA15P34M14230 VAC, 460 VAC2807155911.7221.0953012945
SHA15P34M11SHA15P34M11230 VAC, 460 VAC161989911.7221.0953012945
SHA15P34MD11SHA15P34MD1124Vdc, 48 VDC104858211.7221.0953012945
SHA15P34M08SHA15P34M08230 VAC, 460 VAC74841511.7221.0953012945
SHA15P34MD10SHA15P34MD1024Vdc, 48 VDC58632511.7221.0953012945
SHA15P34MD08SHA15P34MD0824Vdc, 48 VDC36820411.7221.0953012945
SHA15P36M19SHA15P36M19230 VAC, 460 VAC3861214515.3527.6453012945
SHA15P36M14SHA15P36M14230 VAC, 460 VAC2142119015.3527.6453012945
SHA15P36M11SHA15P36M11230 VAC, 460 VAC123668615.3527.6453012945
SHA15P36MD11SHA15P36MD1124Vdc, 48 VDC80044415.3527.6453012945
SHA15P36M08SHA15P36M08230 VAC, 460 VAC57031715.3527.6453012945
SHA15P36MD10SHA15P36MD1024Vdc, 48 VDC44724815.3527.6453012945
SHA15P36MD08SHA15P36MD0824Vdc, 48 VDC28115615.3527.6453012945
SHA20P02M06SHA20P02M06230 VAC, 460 VAC942470680.210.2894257069
SHA20P02M08SHA20P02M08230 VAC, 460 VAC942470680.210.2894257069
SHA20P02MD06SHA20P02MD0624Vdc, 48 VDC942470680.210.2894257069
SHA20P02MD08SHA20P02MD0824Vdc, 48 VDC942470680.210.2894257069
SHA20P05M08SHA20P05M08230 VAC, 460 VAC942470680.490.6594257069
SHA20P05MD08SHA20P05MD0824Vdc, 48 VDC882466180.490.6594257069
SHA20P05M06SHA20P05M06230 VAC, 460 VAC812260920.490.6594257069
SHA20P05MD06SHA20P05MD0624Vdc, 48 VDC465234890.490.6594257069
SHA20P07M08SHA20P07M08230 VAC, 460 VAC942470680.81.0794257069
SHA20P07MD08SHA20P07MD0824Vdc, 48 VDC537140280.81.0794257069
SHA20P07M06SHA20P07M06230 VAC, 460 VAC494437080.81.0794257069
SHA20P07MD06SHA20P07MD0624Vdc, 48 VDC283121230.81.0794257069
SHA20P11M08SHA20P11M08230 VAC, 460 VAC677550811.291.7294257069
SHA20P11MD08SHA20P11MD0824Vdc, 48 VDC333925041.291.7294257069
SHA20P11M06SHA20P11M06230 VAC, 460 VAC307323051.291.7294257069
SHA20P11MD06SHA20P11MD0624Vdc, 48 VDC176013201.291.7294257069
SHA20P13M08SHA20P13M08230 VAC, 460 VAC439832981.992.6694257069
SHA20P13MD08SHA20P13MD0824Vdc, 48 VDC216716251.992.6694257069
SHA20P13M06SHA20P13M06230 VAC, 460 VAC199514961.992.6694257069
SHA20P13MD06SHA20P13MD0624Vdc, 48 VDC11428561.992.6694257069
SHA20P21M14SHA20P21M14230 VAC, 460 VAC942470682.273.0394257069
SHA20P21M19SHA20P21M19230 VAC, 460 VAC942470682.273.0394257069
SHA20P21M11SHA20P21M11230 VAC, 460 VAC835062622.273.0394257069
SHA20P21MD11SHA20P21MD1124Vdc, 48 VDC540740552.273.0394257069
SHA20P21M08SHA20P21M08230 VAC, 460 VAC385728922.273.0394257069
SHA20P21MD10SHA20P21MD1024Vdc, 48 VDC302122662.273.0394257069
SHA20P21MD08SHA20P21MD0824Vdc, 48 VDC190014252.273.0394257069
SHA20P23M14SHA20P23M14230 VAC, 460 VAC942470682.733.6494257069
SHA20P23M19SHA20P23M19230 VAC, 460 VAC942470682.733.6494257069
SHA20P23M11SHA20P23M11230 VAC, 460 VAC695852182.733.6494257069
SHA20P23MD11SHA20P23MD1124Vdc, 48 VDC450633792.733.6494257069
SHA20P23M08SHA20P23M08230 VAC, 460 VAC321424102.733.6494257069
SHA20P23MD10SHA20P23MD1024Vdc, 48 VDC251818882.733.6494257069
SHA20P23MD08SHA20P23MD0824Vdc, 48 VDC158311872.733.6494257069
SHA20P27M19SHA20P27M19230 VAC, 460 VAC942470683.644.8594257069
SHA20P27M14SHA20P27M14230 VAC, 460 VAC904667843.644.8594257069
SHA20P27M11SHA20P27M11230 VAC, 460 VAC521839143.644.8594257069
SHA20P27MD11SHA20P27MD1124Vdc, 48 VDC337925343.644.8594257069
SHA20P27M08SHA20P27M08230 VAC, 460 VAC241018073.644.8594257069
SHA20P27MD10SHA20P27MD1024Vdc, 48 VDC188814163.644.8594257069
SHA20P27MD08SHA20P27MD0824Vdc, 48 VDC11878903.644.8594257069
SHA20P31M19SHA20P31M19230 VAC, 460 VAC942470685.116.8294257069
SHA20P31M14SHA20P31M14230 VAC, 460 VAC643248245.116.8294257069
SHA20P31M11SHA20P31M11230 VAC, 460 VAC371127835.116.8294257069
SHA20P31MD11SHA20P31MD1124Vdc, 48 VDC240318025.116.8294257069
SHA20P31M08SHA20P31M08230 VAC, 460 VAC171412855.116.8294257069
SHA20P31MD10SHA20P31MD1024Vdc, 48 VDC134310075.116.8294257069
SHA20P31MD08SHA20P31MD0824Vdc, 48 VDC8446335.116.8294257069
SHA20P34M19SHA20P34M19230 VAC, 460 VAC899467456.598.7994257069
SHA20P34M14SHA20P34M14230 VAC, 460 VAC499037436.598.7994257069
SHA20P34M11SHA20P34M11230 VAC, 460 VAC287921596.598.7994257069
SHA20P34MD11SHA20P34MD1124Vdc, 48 VDC186413986.598.7994257069
SHA20P34M08SHA20P34M08230 VAC, 460 VAC13309976.598.7994257069
SHA20P34MD10SHA20P34MD1024Vdc, 48 VDC10427816.598.7994257069
SHA20P34MD08SHA20P34MD0824Vdc, 48 VDC6554916.598.7994257069
SHA20P36M19SHA20P36M19230 VAC, 460 VAC686451488.6411.5194257069
SHA20P36M14SHA20P36M14230 VAC, 460 VAC380828568.6411.5194257069
SHA20P36M11SHA20P36M11230 VAC, 460 VAC219716488.6411.5194257069
SHA20P36MD11SHA20P36MD1124Vdc, 48 VDC142310678.6411.5194257069
SHA20P36M08SHA20P36M08230 VAC, 460 VAC10157618.6411.5194257069
SHA20P36MD10SHA20P36MD1024Vdc, 48 VDC7955968.6411.5194257069
SHA20P36MD08SHA20P36MD0824Vdc, 48 VDC5003758.6411.5194257069
SHA25P02M06SHA25P02M06230 VAC, 460 VAC14726102710.130.191472610272
SHA25P02M08SHA25P02M08230 VAC, 460 VAC14726102710.130.191472610272
SHA25P02MD06SHA25P02MD0624Vdc, 48 VDC14726102710.130.191472610272
SHA25P02MD08SHA25P02MD0824Vdc, 48 VDC14726102710.130.191472610272
SHA25P05M08SHA25P05M08230 VAC, 460 VAC14726102710.310.451472610272
SHA25P05MD08SHA25P05MD0824Vdc, 48 VDC1378896170.310.451472610272
SHA25P05M06SHA25P05M06230 VAC, 460 VAC1269288520.310.451472610272
SHA25P05MD06SHA25P05MD0624Vdc, 48 VDC726950700.310.451472610272
SHA25P07M08SHA25P07M08230 VAC, 460 VAC14726102710.510.741472610272
SHA25P07MD08SHA25P07MD0824Vdc, 48 VDC839258540.510.741472610272
SHA25P07M06SHA25P07M06230 VAC, 460 VAC772553880.510.741472610272
SHA25P07MD06SHA25P07MD0624Vdc, 48 VDC442430860.510.741472610272
SHA25P11M08SHA25P11M08230 VAC, 460 VAC1058773840.831.191472610272
SHA25P11MD08SHA25P11MD0824Vdc, 48 VDC521736380.831.191472610272
SHA25P11M06SHA25P11M06230 VAC, 460 VAC480233490.831.191472610272
SHA25P11MD06SHA25P11MD0624Vdc, 48 VDC275019180.831.191472610272
SHA25P13M08SHA25P13M08230 VAC, 460 VAC687247931.281.831472610272
SHA25P13MD08SHA25P13MD0824Vdc, 48 VDC338623621.281.831472610272
SHA25P13M06SHA25P13M06230 VAC, 460 VAC311721741.281.831472610272
SHA25P13MD06SHA25P13MD0624Vdc, 48 VDC178512451.281.831472610272
SHA25P21M14SHA25P21M14230 VAC, 460 VAC14726102711.452.091472610272
SHA25P21M19SHA25P21M19230 VAC, 460 VAC14726102711.452.091472610272
SHA25P21M11SHA25P21M11230 VAC, 460 VAC1304791001.452.091472610272
SHA25P21MD11SHA25P21MD1124Vdc, 48 VDC844958931.452.091472610272
SHA25P21M08SHA25P21M08230 VAC, 460 VAC602642031.452.091472610272
SHA25P21MD10SHA25P21MD1024Vdc, 48 VDC472132931.452.091472610272
SHA25P21MD08SHA25P21MD0824Vdc, 48 VDC296920711.452.091472610272
SHA25P23M14SHA25P23M14230 VAC, 460 VAC14726102711.752.51472610272
SHA25P23M19SHA25P23M19230 VAC, 460 VAC14726102711.752.51472610272
SHA25P23M11SHA25P23M11230 VAC, 460 VAC1087275831.752.51472610272
SHA25P23MD11SHA25P23MD1124Vdc, 48 VDC704149111.752.51472610272
SHA25P23M08SHA25P23M08230 VAC, 460 VAC502235021.752.51472610272
SHA25P23MD10SHA25P23MD1024Vdc, 48 VDC393427441.752.51472610272
SHA25P23MD08SHA25P23MD0824Vdc, 48 VDC247417261.752.51472610272
SHA25P27M19SHA25P27M19230 VAC, 460 VAC14726102712.333.341472610272
SHA25P27M14SHA25P27M14230 VAC, 460 VAC1413498582.333.341472610272
SHA25P27M11SHA25P27M11230 VAC, 460 VAC815456872.333.341472610272
SHA25P27MD11SHA25P27MD1124Vdc, 48 VDC528136832.333.341472610272
SHA25P27M08SHA25P27M08230 VAC, 460 VAC376626272.333.341472610272
SHA25P27MD10SHA25P27MD1024Vdc, 48 VDC295120582.333.341472610272
SHA25P27MD08SHA25P27MD0824Vdc, 48 VDC185612942.333.341472610272
SHA25P31M19SHA25P31M19230 VAC, 460 VAC14726102713.274.691472610272
SHA25P31M14SHA25P31M14230 VAC, 460 VAC1005170103.274.691472610272
SHA25P31M11SHA25P31M11230 VAC, 460 VAC579840443.274.691472610272
SHA25P31MD11SHA25P31MD1124Vdc, 48 VDC375526193.274.691472610272
SHA25P31M08SHA25P31M08230 VAC, 460 VAC267818683.274.691472610272
SHA25P31MD10SHA25P31MD1024Vdc, 48 VDC209814633.274.691472610272
SHA25P31MD08SHA25P31MD0824Vdc, 48 VDC13199203.274.691472610272
SHA25P34M19SHA25P34M19230 VAC, 460 VAC1405498024.226.051472610272
SHA25P34M14SHA25P34M14230 VAC, 460 VAC779854394.226.051472610272
SHA25P34M11SHA25P34M11230 VAC, 460 VAC449931384.226.051472610272
SHA25P34MD11SHA25P34MD1124Vdc, 48 VDC291320324.226.051472610272
SHA25P34M08SHA25P34M08230 VAC, 460 VAC207814494.226.051472610272
SHA25P34MD10SHA25P34MD1024Vdc, 48 VDC162811354.226.051472610272
SHA25P34MD08SHA25P34MD0824Vdc, 48 VDC10247144.226.051472610272
SHA25P36M19SHA25P36M19230 VAC, 460 VAC1072574815.537.921472610272
SHA25P36M14SHA25P36M14230 VAC, 460 VAC595141515.537.921472610272
SHA25P36M11SHA25P36M11230 VAC, 460 VAC343323945.537.921472610272
SHA25P36MD11SHA25P36MD1124Vdc, 48 VDC222315505.537.921472610272
SHA25P36M08SHA25P36M08230 VAC, 460 VAC158511065.537.921472610272
SHA25P36MD10SHA25P36MD1024Vdc, 48 VDC12428665.537.921472610272
SHA25P36MD08SHA25P36MD0824Vdc, 48 VDC7815455.537.921472610272
SHA32P02M06SHA32P02M06230 VAC, 460 VAC24887204320.080.12488720433
SHA32P02M08SHA32P02M08230 VAC, 460 VAC24887204320.080.12488720433
SHA32P02MD06SHA32P02MD0624Vdc, 48 VDC24887204320.080.12488720433
SHA32P02MD08SHA32P02MD0824Vdc, 48 VDC24887204320.080.12488720433
SHA32P05M08SHA32P05M08230 VAC, 460 VAC24887204320.190.232488720433
SHA32P05MD08SHA32P05MD0824Vdc, 48 VDC23302191310.190.232488720433
SHA32P05M06SHA32P05M06230 VAC, 460 VAC21449176100.190.232488720433
SHA32P05MD06SHA32P05MD0624Vdc, 48 VDC12284100850.190.232488720433
SHA32P07M08SHA32P07M08230 VAC, 460 VAC24887204320.30.372488720433
SHA32P07MD08SHA32P07MD0824Vdc, 48 VDC14183116450.30.372488720433
SHA32P07M06SHA32P07M06230 VAC, 460 VAC13056107190.30.372488720433
SHA32P07MD06SHA32P07MD0624Vdc, 48 VDC747761390.30.372488720433
SHA32P11M08SHA32P11M08230 VAC, 460 VAC17892146890.490.62488720433
SHA32P11MD08SHA32P11MD0824Vdc, 48 VDC881772380.490.62488720433
SHA32P11M06SHA32P11M06230 VAC, 460 VAC811666630.490.62488720433
SHA32P11MD06SHA32P11MD0624Vdc, 48 VDC464838160.490.62488720433
SHA32P13M08SHA32P13M08230 VAC, 460 VAC1161495350.750.922488720433
SHA32P13MD08SHA32P13MD0824Vdc, 48 VDC572346980.750.922488720433
SHA32P13M06SHA32P13M06230 VAC, 460 VAC526843250.750.922488720433
SHA32P13MD06SHA32P13MD0624Vdc, 48 VDC301724770.750.922488720433
SHA32P21M14SHA32P21M14230 VAC, 460 VAC24887204320.861.052488720433
SHA32P21M19SHA32P21M19230 VAC, 460 VAC24887204320.861.052488720433
SHA32P21M11SHA32P21M11230 VAC, 460 VAC22049181020.861.052488720433
SHA32P21MD11SHA32P21MD1124Vdc, 48 VDC14279117230.861.052488720433
SHA32P21M08SHA32P21M08230 VAC, 460 VAC1018483610.861.052488720433
SHA32P21MD10SHA32P21MD1024Vdc, 48 VDC797965510.861.052488720433
SHA32P21MD08SHA32P21MD0824Vdc, 48 VDC501841200.861.052488720433
SHA32P23M14SHA32P23M14230 VAC, 460 VAC24887204321.031.262488720433
SHA32P23M19SHA32P23M19230 VAC, 460 VAC24887204321.031.262488720433
SHA32P23M11SHA32P23M11230 VAC, 460 VAC18374150851.031.262488720433
SHA32P23MD11SHA32P23MD1124Vdc, 48 VDC1189997691.031.262488720433
SHA32P23M08SHA32P23M08230 VAC, 460 VAC848769681.031.262488720433
SHA32P23MD10SHA32P23MD1024Vdc, 48 VDC664954591.031.262488720433
SHA32P23MD08SHA32P23MD0824Vdc, 48 VDC418234331.031.262488720433
SHA32P27M19SHA32P27M19230 VAC, 460 VAC24887204321.381.682488720433
SHA32P27M14SHA32P27M14230 VAC, 460 VAC23887196111.381.682488720433
SHA32P27M11SHA32P27M11230 VAC, 460 VAC13781113141.381.682488720433
SHA32P27MD11SHA32P27MD1124Vdc, 48 VDC892473271.381.682488720433
SHA32P27M08SHA32P27M08230 VAC, 460 VAC636552261.381.682488720433
SHA32P27MD10SHA32P27MD1024Vdc, 48 VDC498740941.381.682488720433
SHA32P27MD08SHA32P27MD0824Vdc, 48 VDC313625751.381.682488720433
SHA32P31M19SHA32P31M19230 VAC, 460 VAC24887204321.942.362488720433
SHA32P31M14SHA32P31M14230 VAC, 460 VAC16986139461.942.362488720433
SHA32P31M11SHA32P31M11230 VAC, 460 VAC979980451.942.362488720433
SHA32P31MD11SHA32P31MD1124Vdc, 48 VDC634652101.942.362488720433
SHA32P31M08SHA32P31M08230 VAC, 460 VAC452637161.942.362488720433
SHA32P31MD10SHA32P31MD1024Vdc, 48 VDC354629111.942.362488720433
SHA32P31MD08SHA32P31MD0824Vdc, 48 VDC223018311.942.362488720433
SHA32P34M19SHA32P34M19230 VAC, 460 VAC23751195002.53.042488720433
SHA32P34M14SHA32P34M14230 VAC, 460 VAC13179108202.53.042488720433
SHA32P34M11SHA32P34M11230 VAC, 460 VAC760362422.53.042488720433
SHA32P34MD11SHA32P34MD1124Vdc, 48 VDC492440422.53.042488720433
SHA32P34M08SHA32P34M08230 VAC, 460 VAC351228832.53.042488720433
SHA32P34MD10SHA32P34MD1024Vdc, 48 VDC275122592.53.042488720433
SHA32P34MD08SHA32P34MD0824Vdc, 48 VDC173014202.53.042488720433
SHA32P36M19SHA32P36M19230 VAC, 460 VAC18126148813.273.982488720433
SHA32P36M14SHA32P36M14230 VAC, 460 VAC1005782573.273.982488720433
SHA32P36M11SHA32P36M11230 VAC, 460 VAC580247633.273.982488720433
SHA32P36MD11SHA32P36MD1124Vdc, 48 VDC375730853.273.982488720433
SHA32P36M08SHA32P36M08230 VAC, 460 VAC268022003.273.982488720433
SHA32P36MD10SHA32P36MD1024Vdc, 48 VDC209917243.273.982488720433
SHA32P36MD08SHA32P36MD0824Vdc, 48 VDC132010843.273.982488720433
SHA40P02M06SHA40P02M06230 VAC, 460 VAC37699282740.050.073769928274
SHA40P02M08SHA40P02M08230 VAC, 460 VAC37699282740.050.073769928274
SHA40P02MD06SHA40P02MD0624Vdc, 48 VDC37699282740.050.073769928274
SHA40P02MD08SHA40P02MD0824Vdc, 48 VDC37699282740.050.073769928274
SHA40P05M08SHA40P05M08230 VAC, 460 VAC37699282740.120.163769928274
SHA40P05MD08SHA40P05MD0824Vdc, 48 VDC35298264730.120.163769928274
SHA40P05M06SHA40P05M06230 VAC, 460 VAC32491243680.120.163769928274
SHA40P05MD06SHA40P05MD0624Vdc, 48 VDC18609139560.120.163769928274
SHA40P07M08SHA40P07M08230 VAC, 460 VAC37699282740.20.273769928274
SHA40P07MD08SHA40P07MD0824Vdc, 48 VDC21485161140.20.273769928274
SHA40P07M06SHA40P07M06230 VAC, 460 VAC19777148330.20.273769928274
SHA40P07MD06SHA40P07MD0624Vdc, 48 VDC1132784950.20.273769928274
SHA40P11M08SHA40P11M08230 VAC, 460 VAC27103203270.320.433769928274
SHA40P11MD08SHA40P11MD0824Vdc, 48 VDC13356100170.320.433769928274
SHA40P11M06SHA40P11M06230 VAC, 460 VAC1229492200.320.433769928274
SHA40P11MD06SHA40P11MD0624Vdc, 48 VDC704152800.320.433769928274
SHA40P13M08SHA40P13M08230 VAC, 460 VAC17593131950.50.663769928274
SHA40P13MD08SHA40P13MD0824Vdc, 48 VDC866965020.50.663769928274
SHA40P13M06SHA40P13M06230 VAC, 460 VAC798059850.50.663769928274
SHA40P13MD06SHA40P13MD0624Vdc, 48 VDC457034270.50.663769928274
SHA40P21M14SHA40P21M14230 VAC, 460 VAC37699282740.570.763769928274
SHA40P21M19SHA40P21M19230 VAC, 460 VAC37699282740.570.763769928274
SHA40P21M11SHA40P21M11230 VAC, 460 VAC33400250500.570.763769928274
SHA40P21MD11SHA40P21MD1124Vdc, 48 VDC21631162230.570.763769928274
SHA40P21M08SHA40P21M08230 VAC, 460 VAC15428115710.570.763769928274
SHA40P21MD10SHA40P21MD1024Vdc, 48 VDC1208790650.570.763769928274
SHA40P21MD08SHA40P21MD0824Vdc, 48 VDC760257020.570.763769928274
SHA40P23M14SHA40P23M14230 VAC, 460 VAC37699282740.680.913769928274
SHA40P23M19SHA40P23M19230 VAC, 460 VAC37699282740.680.913769928274
SHA40P23M11SHA40P23M11230 VAC, 460 VAC27834208750.680.913769928274
SHA40P23MD11SHA40P23MD1124Vdc, 48 VDC18025135190.680.913769928274
SHA40P23M08SHA40P23M08230 VAC, 460 VAC1285696420.680.913769928274
SHA40P23MD10SHA40P23MD1024Vdc, 48 VDC1007375540.680.913769928274
SHA40P23MD08SHA40P23MD0824Vdc, 48 VDC633547510.680.913769928274
SHA40P27M19SHA40P27M19230 VAC, 460 VAC37699282740.911.213769928274
SHA40P27M14SHA40P27M14230 VAC, 460 VAC36184271380.911.213769928274
SHA40P27M11SHA40P27M11230 VAC, 460 VAC20875156560.911.213769928274
SHA40P27MD11SHA40P27MD1124Vdc, 48 VDC13519101390.911.213769928274
SHA40P27M08SHA40P27M08230 VAC, 460 VAC964272310.911.213769928274
SHA40P27MD10SHA40P27MD1024Vdc, 48 VDC755456660.911.213769928274
SHA40P27MD08SHA40P27MD0824Vdc, 48 VDC475135630.911.213769928274
SHA40P31M19SHA40P31M19230 VAC, 460 VAC37699282741.281.73769928274
SHA40P31M14SHA40P31M14230 VAC, 460 VAC25731192981.281.73769928274
SHA40P31M11SHA40P31M11230 VAC, 460 VAC14844111331.281.73769928274
SHA40P31MD11SHA40P31MD1124Vdc, 48 VDC961372101.281.73769928274
SHA40P31M08SHA40P31M08230 VAC, 460 VAC685651421.281.73769928274
SHA40P31MD10SHA40P31MD1024Vdc, 48 VDC537240291.281.73769928274
SHA40P31MD08SHA40P31MD0824Vdc, 48 VDC337825341.281.73769928274
SHA40P34M19SHA40P34M19230 VAC, 460 VAC35978269831.652.23769928274
SHA40P34M14SHA40P34M14230 VAC, 460 VAC19963149721.652.23769928274
SHA40P34M11SHA40P34M11230 VAC, 460 VAC1151786381.652.23769928274
SHA40P34MD11SHA40P34MD1124Vdc, 48 VDC745855941.652.23769928274
SHA40P34M08SHA40P34M08230 VAC, 460 VAC532039901.652.23769928274
SHA40P34MD10SHA40P34MD1024Vdc, 48 VDC416831261.652.23769928274
SHA40P34MD08SHA40P34MD0824Vdc, 48 VDC262119661.652.23769928274
SHA40P36M19SHA40P36M19230 VAC, 460 VAC27457205932.162.883769928274
SHA40P36M14SHA40P36M14230 VAC, 460 VAC15235114262.162.883769928274
SHA40P36M11SHA40P36M11230 VAC, 460 VAC878965922.162.883769928274
SHA40P36MD11SHA40P36MD1124Vdc, 48 VDC569242692.162.883769928274
SHA40P36M08SHA40P36M08230 VAC, 460 VAC406030452.162.883769928274
SHA40P36MD10SHA40P36MD1024Vdc, 48 VDC318123852.162.883769928274
SHA40P36MD08SHA40P36MD0824Vdc, 48 VDC200015002.162.883769928274
SHA50P02M06SHA50P02M06230 VAC, 460 VAC58904376990.030.055890537699
SHA50P02M08SHA50P02M08230 VAC, 460 VAC58904376990.030.055890537699
SHA50P02MD06SHA50P02MD0624Vdc, 48 VDC58904376990.030.055890537699
SHA50P02MD08SHA50P02MD0824Vdc, 48 VDC58904376990.030.055890537699
SHA50P05M08SHA50P05M08230 VAC, 460 VAC58904376990.080.125890537699
SHA50P05MD08SHA50P05MD0824Vdc, 48 VDC55153352980.080.125890537699
SHA50P05M06SHA50P05M06230 VAC, 460 VAC50768324910.080.125890537699
SHA50P05MD06SHA50P05MD0624Vdc, 48 VDC29076186090.080.125890537699
SHA50P07M08SHA50P07M08230 VAC, 460 VAC58904376990.130.25890537699
SHA50P07MD08SHA50P07MD0824Vdc, 48 VDC33571214850.130.25890537699
SHA50P07M06SHA50P07M06230 VAC, 460 VAC30902197770.130.25890537699
SHA50P07MD06SHA50P07MD0624Vdc, 48 VDC17698113270.130.25890537699
SHA50P11M08SHA50P11M08230 VAC, 460 VAC42348271030.210.325890537699
SHA50P11MD08SHA50P11MD0824Vdc, 48 VDC20868133560.210.325890537699
SHA50P11M06SHA50P11M06230 VAC, 460 VAC19209122940.210.325890537699
SHA50P11MD06SHA50P11MD0624Vdc, 48 VDC1100170410.210.325890537699
SHA50P13M08SHA50P13M08230 VAC, 460 VAC27489175930.320.55890537699
SHA50P13MD08SHA50P13MD0824Vdc, 48 VDC1354686690.320.55890537699
SHA50P13M06SHA50P13M06230 VAC, 460 VAC1246979800.320.55890537699
SHA50P13MD06SHA50P13MD0624Vdc, 48 VDC714145700.320.55890537699
SHA50P21M14SHA50P21M14230 VAC, 460 VAC58904376990.360.575890537699
SHA50P21M19SHA50P21M19230 VAC, 460 VAC58904376990.360.575890537699
SHA50P21M11SHA50P21M11230 VAC, 460 VAC52188334000.360.575890537699
SHA50P21MD11SHA50P21MD1124Vdc, 48 VDC33798216310.360.575890537699
SHA50P21M08SHA50P21M08230 VAC, 460 VAC24106154280.360.575890537699
SHA50P21MD10SHA50P21MD1024Vdc, 48 VDC18887120870.360.575890537699
SHA50P21MD08SHA50P21MD0824Vdc, 48 VDC1187976020.360.575890537699
SHA50P23M14SHA50P23M14230 VAC, 460 VAC58904376990.440.685890537699
SHA50P23M19SHA50P23M19230 VAC, 460 VAC58904376990.440.685890537699
SHA50P23M11SHA50P23M11230 VAC, 460 VAC43490278340.440.685890537699
SHA50P23MD11SHA50P23MD1124Vdc, 48 VDC28165180250.440.685890537699
SHA50P23M08SHA50P23M08230 VAC, 460 VAC20088128560.440.685890537699
SHA50P23MD10SHA50P23MD1024Vdc, 48 VDC15739100730.440.685890537699
SHA50P23MD08SHA50P23MD0824Vdc, 48 VDC989963350.440.685890537699
SHA50P27M19SHA50P27M19230 VAC, 460 VAC58904376990.580.915890537699
SHA50P27M14SHA50P27M14230 VAC, 460 VAC56537361840.580.915890537699
SHA50P27M11SHA50P27M11230 VAC, 460 VAC32618208750.580.915890537699
SHA50P27MD11SHA50P27MD1124Vdc, 48 VDC21124135190.580.915890537699
SHA50P27M08SHA50P27M08230 VAC, 460 VAC1506696420.580.915890537699
SHA50P27MD10SHA50P27MD1024Vdc, 48 VDC1180475540.580.915890537699
SHA50P27MD08SHA50P27MD0824Vdc, 48 VDC742447510.580.915890537699
SHA50P31M19SHA50P31M19230 VAC, 460 VAC58904376990.821.285890537699
SHA50P31M14SHA50P31M14230 VAC, 460 VAC40204257310.821.285890537699
SHA50P31M11SHA50P31M11230 VAC, 460 VAC23195148440.821.285890537699
SHA50P31MD11SHA50P31MD1124Vdc, 48 VDC1502196130.821.285890537699
SHA50P31M08SHA50P31M08230 VAC, 460 VAC1071368560.821.285890537699
SHA50P31MD10SHA50P31MD1024Vdc, 48 VDC839453720.821.285890537699
SHA50P31MD08SHA50P31MD0824Vdc, 48 VDC527933780.821.285890537699
SHA50P34M19SHA50P34M19230 VAC, 460 VAC56216359781.051.655890537699
SHA50P34M14SHA50P34M14230 VAC, 460 VAC31193199631.051.655890537699
SHA50P34M11SHA50P34M11230 VAC, 460 VAC17996115171.051.655890537699
SHA50P34MD11SHA50P34MD1124Vdc, 48 VDC1165474581.051.655890537699
SHA50P34M08SHA50P34M08230 VAC, 460 VAC831253201.051.655890537699
SHA50P34MD10SHA50P34MD1024Vdc, 48 VDC651241681.051.655890537699
SHA50P34MD08SHA50P34MD0824Vdc, 48 VDC409626211.051.655890537699
SHA50P36M19SHA50P36M19230 VAC, 460 VAC42902274571.382.165890537699
SHA50P36M14SHA50P36M14230 VAC, 460 VAC23805152351.382.165890537699
SHA50P36M11SHA50P36M11230 VAC, 460 VAC1373387891.382.165890537699
SHA50P36MD11SHA50P36MD1124Vdc, 48 VDC889456921.382.165890537699
SHA50P36M08SHA50P36M08230 VAC, 460 VAC634340601.382.165890537699
SHA50P36MD10SHA50P36MD1024Vdc, 48 VDC497031811.382.165890537699
SHA50P36MD08SHA50P36MD0824Vdc, 48 VDC312620001.382.165890537699
SHA60P02M06SHA60P02M06230 VAC, 460 VAC84823559590.020.048482355960
SHA60P02M08SHA60P02M08230 VAC, 460 VAC84823559590.020.048482355960
SHA60P02MD06SHA60P02MD0624Vdc, 48 VDC84823559590.020.048482355960
SHA60P02MD08SHA60P02MD0824Vdc, 48 VDC84823559590.020.048482355960
SHA60P05M08SHA60P05M08230 VAC, 460 VAC84823559590.050.088482355960
SHA60P05MD08SHA60P05MD0824Vdc, 48 VDC79420523950.050.088482355960
SHA60P05M06SHA60P05M06230 VAC, 460 VAC73106482300.050.088482355960
SHA60P05MD06SHA60P05MD0624Vdc, 48 VDC41870276220.050.088482355960
SHA60P07M08SHA60P07M08230 VAC, 460 VAC84823559590.090.148482355960
SHA60P07MD08SHA60P07MD0824Vdc, 48 VDC48343318920.090.148482355960
SHA60P07M06SHA60P07M06230 VAC, 460 VAC44499293570.090.148482355960
SHA60P07MD06SHA60P07MD0624Vdc, 48 VDC25486168130.090.148482355960
SHA60P11M08SHA60P11M08230 VAC, 460 VAC60982402310.140.228482355960
SHA60P11MD08SHA60P11MD0824Vdc, 48 VDC30051198250.140.228482355960
SHA60P11M06SHA60P11M06230 VAC, 460 VAC27662182490.140.228482355960
SHA60P11MD06SHA60P11MD0624Vdc, 48 VDC15842104510.140.228482355960
SHA60P13M08SHA60P13M08230 VAC, 460 VAC39585261150.220.348482355960
SHA60P13MD08SHA60P13MD0824Vdc, 48 VDC19506128690.220.348482355960
SHA60P13M06SHA60P13M06230 VAC, 460 VAC17956118460.220.348482355960
SHA60P13MD06SHA60P13MD0624Vdc, 48 VDC1028367840.220.348482355960
SHA60P21M14SHA60P21M14230 VAC, 460 VAC84823559590.250.388482355960
SHA60P21M19SHA60P21M19230 VAC, 460 VAC84823559590.250.388482355960
SHA60P21M11SHA60P21M11230 VAC, 460 VAC75151495790.250.388482355960
SHA60P21MD11SHA60P21MD1124Vdc, 48 VDC48669321080.250.388482355960
SHA60P21M08SHA60P21M08230 VAC, 460 VAC34713229000.250.388482355960
SHA60P21MD10SHA60P21MD1024Vdc, 48 VDC27197179430.250.388482355960
SHA60P21MD08SHA60P21MD0824Vdc, 48 VDC17106112850.250.388482355960
SHA60P23M14SHA60P23M14230 VAC, 460 VAC84823559590.30.468482355960
SHA60P23M19SHA60P23M19230 VAC, 460 VAC84823559590.30.468482355960
SHA60P23M11SHA60P23M11230 VAC, 460 VAC62626413160.30.468482355960
SHA60P23MD11SHA60P23MD1124Vdc, 48 VDC40558267570.30.468482355960
SHA60P23M08SHA60P23M08230 VAC, 460 VAC28927190840.30.468482355960
SHA60P23MD10SHA60P23MD1024Vdc, 48 VDC22664149520.30.468482355960
SHA60P23MD08SHA60P23MD0824Vdc, 48 VDC1425594040.30.468482355960
SHA60P27M19SHA60P27M19230 VAC, 460 VAC84823559590.40.618482355960
SHA60P27M14SHA60P27M14230 VAC, 460 VAC81414537100.40.618482355960
SHA60P27M11SHA60P27M11230 VAC, 460 VAC46969309870.40.618482355960
SHA60P27MD11SHA60P27MD1124Vdc, 48 VDC30418200670.40.618482355960
SHA60P27M08SHA60P27M08230 VAC, 460 VAC21695143130.40.618482355960
SHA60P27MD10SHA60P27MD1024Vdc, 48 VDC16998112140.40.618482355960
SHA60P27MD08SHA60P27MD0824Vdc, 48 VDC1069170530.40.618482355960
SHA60P31M19SHA60P31M19230 VAC, 460 VAC84823559590.570.868482355960
SHA60P31M14SHA60P31M14230 VAC, 460 VAC57894381940.570.868482355960
SHA60P31M11SHA60P31M11230 VAC, 460 VAC33400220350.570.868482355960
SHA60P31MD11SHA60P31MD1124Vdc, 48 VDC21631142700.570.868482355960
SHA60P31M08SHA60P31M08230 VAC, 460 VAC15428101780.570.868482355960
SHA60P31MD10SHA60P31MD1024Vdc, 48 VDC1208779740.570.868482355960
SHA60P31MD08SHA60P31MD0824Vdc, 48 VDC760250150.570.868482355960
SHA60P34M19SHA60P34M19230 VAC, 460 VAC80951534050.731.118482355960
SHA60P34M14SHA60P34M14230 VAC, 460 VAC44918296330.731.118482355960
SHA60P34M11SHA60P34M11230 VAC, 460 VAC25914170960.731.118482355960
SHA60P34MD11SHA60P34MD1124Vdc, 48 VDC16782110710.731.118482355960
SHA60P34M08SHA60P34M08230 VAC, 460 VAC1197078960.731.118482355960
SHA60P34MD10SHA60P34MD1024Vdc, 48 VDC937861870.731.118482355960
SHA60P34MD08SHA60P34MD0824Vdc, 48 VDC589838910.731.118482355960
SHA60P36M19SHA60P36M19230 VAC, 460 VAC61779407560.961.458482355960
SHA60P36M14SHA60P36M14230 VAC, 460 VAC34279226150.961.458482355960
SHA60P36M11SHA60P36M11230 VAC, 460 VAC19776130470.961.458482355960
SHA60P36MD11SHA60P36MD1124Vdc, 48 VDC1280784490.961.458482355960
SHA60P36M08SHA60P36M08230 VAC, 460 VAC913560260.961.458482355960
SHA60P36MD10SHA60P36MD1024Vdc, 48 VDC715747210.961.458482355960
SHA60P36MD08SHA60P36MD0824Vdc, 48 VDC450129690.961.458482355960
SHA80P02M06SHA80P02M06230 VAC, 460 VAC1507961130970.010.02150796113097
SHA80P02M08SHA80P02M08230 VAC, 460 VAC1507961130970.010.02150796113097
SHA80P02MD06SHA80P02MD0624Vdc, 48 VDC1507961130970.010.02150796113097
SHA80P02MD08SHA80P02MD0824Vdc, 48 VDC1507961130970.010.02150796113097
SHA80P05M08SHA80P05M08230 VAC, 460 VAC1507961130970.030.04150796113097
SHA80P05MD08SHA80P05MD0824Vdc, 48 VDC1411921058940.030.04150796113097
SHA80P05M06SHA80P05M06230 VAC, 460 VAC129967974750.030.04150796113097
SHA80P05MD06SHA80P05MD0624Vdc, 48 VDC74436558270.030.04150796113097
SHA80P07M08SHA80P07M08230 VAC, 460 VAC1507961130970.050.07150796113097
SHA80P07MD08SHA80P07MD0824Vdc, 48 VDC85943644570.050.07150796113097
SHA80P07M06SHA80P07M06230 VAC, 460 VAC79110593330.050.07150796113097
SHA80P07MD06SHA80P07MD0624Vdc, 48 VDC45308339810.050.07150796113097
SHA80P11M08SHA80P11M08230 VAC, 460 VAC108413813090.080.11150796113097
SHA80P11MD08SHA80P11MD0824Vdc, 48 VDC53424400680.080.11150796113097
SHA80P11M06SHA80P11M06230 VAC, 460 VAC49177368820.080.11150796113097
SHA80P11MD06SHA80P11MD0624Vdc, 48 VDC28165211230.080.11150796113097
SHA80P13M08SHA80P13M08230 VAC, 460 VAC70373527800.120.17150796113097
SHA80P13MD08SHA80P13MD0824Vdc, 48 VDC34678260090.120.17150796113097
SHA80P13M06SHA80P13M06230 VAC, 460 VAC31921239410.120.17150796113097
SHA80P13MD06SHA80P13MD0624Vdc, 48 VDC18282137110.120.17150796113097
SHA80P21M14SHA80P21M14230 VAC, 460 VAC1507961130970.140.19150796113097
SHA80P21M19SHA80P21M19230 VAC, 460 VAC1507961130970.140.19150796113097
SHA80P21M11SHA80P21M11230 VAC, 460 VAC1336031002020.140.19150796113097
SHA80P21MD11SHA80P21MD1124Vdc, 48 VDC86524648930.140.19150796113097
SHA80P21M08SHA80P21M08230 VAC, 460 VAC61712462840.140.19150796113097
SHA80P21MD10SHA80P21MD1024Vdc, 48 VDC48351362630.140.19150796113097
SHA80P21MD08SHA80P21MD0824Vdc, 48 VDC30410228080.140.19150796113097
SHA80P23M14SHA80P23M14230 VAC, 460 VAC1507961130970.170.23150796113097
SHA80P23M19SHA80P23M19230 VAC, 460 VAC1507961130970.170.23150796113097
SHA80P23M11SHA80P23M11230 VAC, 460 VAC111336835020.170.23150796113097
SHA80P23MD11SHA80P23MD1124Vdc, 48 VDC72103540770.170.23150796113097
SHA80P23M08SHA80P23M08230 VAC, 460 VAC51426385700.170.23150796113097
SHA80P23MD10SHA80P23MD1024Vdc, 48 VDC40293302190.170.23150796113097
SHA80P23MD08SHA80P23MD0824Vdc, 48 VDC25342190060.170.23150796113097
SHA80P27M19SHA80P27M19230 VAC, 460 VAC1507961130970.230.3150796113097
SHA80P27M14SHA80P27M14230 VAC, 460 VAC1447361085520.230.3150796113097
SHA80P27M11SHA80P27M11230 VAC, 460 VAC83502626260.230.3150796113097
SHA80P27MD11SHA80P27MD1124Vdc, 48 VDC54077405580.230.3150796113097
SHA80P27M08SHA80P27M08230 VAC, 460 VAC38570289270.230.3150796113097
SHA80P27MD10SHA80P27MD1024Vdc, 48 VDC30219226640.230.3150796113097
SHA80P27MD08SHA80P27MD0824Vdc, 48 VDC19006142550.230.3150796113097
SHA80P31M19SHA80P31M19230 VAC, 460 VAC1507961130970.320.43150796113097
SHA80P31M14SHA80P31M14230 VAC, 460 VAC102924771930.320.43150796113097
SHA80P31M11SHA80P31M11230 VAC, 460 VAC59379445340.320.43150796113097
SHA80P31MD11SHA80P31MD1124Vdc, 48 VDC38455288410.320.43150796113097
SHA80P31M08SHA80P31M08230 VAC, 460 VAC27427205700.320.43150796113097
SHA80P31MD10SHA80P31MD1024Vdc, 48 VDC21489161170.320.43150796113097
SHA80P31MD08SHA80P31MD0824Vdc, 48 VDC13515101360.320.43150796113097
SHA80P34M19SHA80P34M19230 VAC, 460 VAC1439141079350.410.55150796113097
SHA80P34M14SHA80P34M14230 VAC, 460 VAC79854598910.410.55150796113097
SHA80P34M11SHA80P34M11230 VAC, 460 VAC46070345520.410.55150796113097
SHA80P34MD11SHA80P34MD1124Vdc, 48 VDC29835223760.410.55150796113097
SHA80P34M08SHA80P34M08230 VAC, 460 VAC21280159600.410.55150796113097
SHA80P34MD10SHA80P34MD1024Vdc, 48 VDC16672125040.410.55150796113097
SHA80P34MD08SHA80P34MD0824Vdc, 48 VDC1048678640.410.55150796113097
SHA80P36M19SHA80P36M19230 VAC, 460 VAC109829823720.540.72150796113097
SHA80P36M14SHA80P36M14230 VAC, 460 VAC60941457060.540.72150796113097
SHA80P36M11SHA80P36M11230 VAC, 460 VAC35158263690.540.72150796113097
SHA80P36MD11SHA80P36MD1124Vdc, 48 VDC22769170770.540.72150796113097
SHA80P36M08SHA80P36M08230 VAC, 460 VAC16240121800.540.72150796113097
SHA80P36MD10SHA80P36MD1024Vdc, 48 VDC1272495430.540.72150796113097
SHA80P36MD08SHA80P36MD0824Vdc, 48 VDC800260020.540.72150796113097

Design and Optional Features for SHA Series Hybrid Linear Actuators

SHA Series actuators incorporate numerous design features that increase operating performance and reduce maintenance.

SHA Series Actuator Design Features:

  • Wide range of AC and DC motor options
  • Rod seal tested to over 50 million inches of travel without failure (load independent)
  • Closed system eliminates contamination, moisture and air infiltration
  • Minimal fluid
  • Oversize wear rings and bearings provide extra support during rod-extension
  • Servo control eliminates pressure spikes
  • Relief valves eliminate over pressure
  • Temperature monitoring eliminates over-temperature conditions

SHA Series - Design Elements

SHA Series - Design Features

SHA Series Actuator Optional Features:

  1. Standard or High-Resolution Position Sensor – External E or Internal I Mounted
  2. Pressure Sensor for Force Measurement and Control
  3. Solenoid Lock
  4. Load Cell Interface
  5. Food Grade Fluid

6. Fire-Resistant Fluid

7. IP67, IP68, IP69k packaging

8. Special Coatings

9. Explosion Proof: Class 1 Div 1 / Div II

10. Supplemental Heating or Cooling

11. Manual Backup Operation

Mounting and Configuration Options for SHA Series Hybrid Linear Actuators

Numerous mounting options and flexible configurations to fit your machine.

SHA-Series Mounting Options

Rod End

Clevis

Rod Eye

Parker Style 55

Spherical Ball Joint

Threaded Male Standard Threaded Male SI

Threaded Female Standard Threaded Female SI

Actuator Mount

End Feet

Side Feet

Trunnion

Front Flange Plate

Rear Flange Plate

Clevis 0 degrees (shown) Clevis 90 degrees

Rod Eye Bracket 0 degree (shown)
Rod Eye Bracket 90 degree

Flexible Configurations to Fit your Machine

Parallel Standard

Parallel with Spacer Block

90° Centered

Parallel Inverted

Inline

90° Behind Power Unit

Total Solution Control Package – Hardware and Software Features

Our ‘Total Solution’ controls package includes an array of hardware options and comprehensive software capabilities that make it easy to implement various control modes, control processes with “pass/fail” determinations, log data for analysis and interface with common fieldbus options.



Kyntronics offers a variety of controls packaging options including backplates that mount in your enclosure, full enclosure options, and multiple axis versions. Best of all, with our “Total Solution” package, we assist with system tuning, factory testing of the complete system, and comprehensive remote support to help you commission your system efficiently and productively.

Total Solution - Control Package Options

Single Drive on Panel - Backplate

Single Drive Enclosure

Multi-Axis on Panel/Backplate

Control Multi-Axis Enclosure

Total Solution – Hardware Features:

Connectivity:
  • CANopen
  • Ethernet TCP/IP
  • Ethernet IP
  • EtherCAT
  • Modbus TCP
  • Modbus RTU
  • Profinet
  • Analog/Digital
  • Other – Consult Factory

Connectivity to most any PLC / Controller – e.g., ABB, Allen Bradley, Automation Direct, Delta Motion, Mitsubishi, Siemens, Yaskawa, etc.



Servo Drives used with the Kyntronics Total Solution:
  • Nidec / Control Techniques
  • Unidrive, Digitax, M750, M700
    • Uses the MCi200 & MCi210 programming modules integrating the Kyntronics standard software



Drive Interface:
  • Analog & Digital
  • Fieldbus
  • STO
    • Single or Dual



Digitax HD:
  • 200 Vac | 400 Vac
  • 24Vdc to 800Vdc (for Battery / DC voltage solutions)
  • 25 kW – 7.5 kW



Undrive M700:
  • 208 – 230 Vac | 380 – 460 Vac | 575 Vac | 690 Vac
  • 75 kW – 2.8 MW



Unimotor HD:
  • Winding voltage for inverter supply of 200 V and 400 V
    • 60mm & 89mm: Max RPM is 6000
    • 142mm & 190mm: Max RPM is 3000
  • Torque range: from 0.64 Nm to 85 Nm
  • 0.44kW to 13.8kW

Total Solution – Control Software Features:

Three Selectable Modes (selectable at any time)
  • Position Mode (can be used for a constant speed mode)
  • Position with Force Limiting (Bump-less switching from Position to Force control)
  • Force Mode
Programmable Limits:
  • Speed
  • Force
  • Torque
  • Position



Programmable Options:
  • Press control
  • Solenoid locking (failsafe)
    • Bump-less (torque memory prior to locking)
  • Spool winding logic
  • High-Speed, High-Force programable logic
  • Quality checks (pass/fail)
  • Data logging
  • Standard fieldbus interfaces
  • Diagnostic tools
  • Auto Control-Loop Tuning



Factory Support:
  • Fully tested to the specifications
  • Tuned control loops
  • Documentation
  • Remote technical support



HMI Interface options:
  • 7in Touchscreen
  • PC Based (VBA)



Fieldbus Connectivity:
  • CANopen
  • Ethernet TCP/IP
  • Ethernet IP
  • EtherCAT
  • Modbus TCP
  • Modbus RTU
  • Profinet
  • Profibus
  • Or Analog/Digital

Connectivity to most any PLC-Controller

Total Solution HMI Package – Standard Features and Software

Our ‘Total Solution’ controls package offers two optional HMI packages. The 7in touch screen option incorporates a Horner controller that can be integrated into the control cabinet or separately mounted in an operator console. The PC-Based VBA option is a Visual Basic software package installed on a customer-supplied PC. Both package options include extensive software features outlined below. Upon request, Kyntronics can provide customer-specific software modifications to these packages. Consult the factory for more information.

7-Inch Touch Screen

Options:

  • Can be provided separately or mounted on a door or operator station
  • Software can be provided (available to be modified)
  • Communicates to the Kyntronics Total Solution



Features include:

  • Diagnostics
  • Setup
  • Tuning
  • Indexing & Sequencing setup (16 indexes)
  • Jogging / Start / Stop Operation
  • Quality Signature Checks – (go-no go)
  • Data Logging to USB



HMI Integrated in Control Cabinet



Remote Operator Console

DOWNLOAD TECHNICAL MANUAL FOR HORNER HMI

PC Based Solution Option (VBA)

Features & Available Screens:

  • Setup
    • IP address
    • Connectivity
    • Date/time
    • Drive status
  • Debugging
    • Execution based info
    • Log file
    • Communication state
  • Synchronization
    • Run state
    • Motion state
    • Cycle counts
    • Trending
  • Manual Operations
    • Jog / Move commands
    • Feedback (position, force, RPM)
    • Limits
    • Start / Stop
  • Motion Profile Setup:
    • Indexes
      • Position, Position with Force Limit & Force Modes
      • Limits
        • Position, Speed, Force
      • Target “acceptable” limits (window)
      • Desired dwell
      • Timeouts
    • Sequences (string indexes together)
    • Quality checks (PASS / FAIL)
    • Recipes
      • Import / Export



  •  Motion Profile Execution
    • Run selected motion profiles
    • Single or Continuous Run
      • Data Logging
    • Selectable – Field Selections
    • Diagnostics
    • Limit annunciation

HMI Screen - Setup

HMI Screen - Target Feedback

HMI Screen Motion Profile Setup

HMI Screen Motion Profile Execution

×
Kyntronics

CAD Model Download

Please complete the following form in order to download the Model file

Please complete this required field.
Please complete this required field.
Please complete this required field.
Please complete this required field.
Please complete this required field.

Kyntronics is committed to protecting and respecting your privacy, and we’ll only use your personal information to administer your account and to provide the products and services you requested from us. From time to time, we would like to contact you about our products and services, as well as other content that may be of interest to you. If you consent to us contacting you for this purpose, please tick below to say how you would like us to contact you:

In order to provide you the content requested, we need to store and process your personal data. If you consent to us storing your personal data for this purpose, please tick the checkbox below.

You can unsubscribe from these communications at any time. For more information on how to unsubscribe, our privacy practices, and how we are committed to protecting and respecting your privacy, please review our Privacy Policy.
