Upgrade Hydraulic Lift Systems with Compact Power, Precision Servo Control, and Automated Positioning

Challenge

A leading manufacturer of mobile construction equipment wanted to upgrade a scissor lift used to position metal panels for fabrication. The existing manual method of adjusting the lift table slowed productivity and required significant operator effort.

The customer needed an automated positioning solution that could integrate with the two hydraulic cylinders already installed on the lift while delivering precise, repeatable control of table height. The goal was to improve productivity and simplify operation without replacing the existing lifting mechanism.

Kyntronics Solution

Kyntronics provided a Compact Hybrid Power Unit (SPU) Total Solution to modernize the lift’s hydraulic power and control system. The integrated solution automated table positioning while retaining the customer’s existing dual-cylinder arrangement.

The system included:

  • Compact Hybrid Power Unit Total Solution: Integrated SPU, drives, and controls in an enclosure, factory tuned and tested for the application.
  • Closed-loop position control: Integrated with the customer’s two existing scissor lift cylinders and a Temposonics position feedback sensor to deliver precise, repeatable positioning with 0.010-inch accuracy.
  • PLC integration: Kyntronics controller interfaced with the customer’s Allen-Bradley PLC using EtherNet/IP.
  • Automated lift table positioning: Enabled controlled adjustment of table height to support fabrication, loading, and unloading operations.

By combining compact electrically powered actuators with servo-based control, Kyntronics modernized the existing lift system without requiring replacement of its hydraulic cylinders or lifting mechanism.

Customer Benefit

  • Precision positioning: Achieved closed-loop lift table positioning with 0.010-inch accuracy for consistent, repeatable operation.
  • Improved productivity: Automated table height adjustment made loading and unloading parts easier while reducing manual operator effort.
  • Modernized existing equipment: Upgraded power and control while retaining the customer’s existing dual cylinders and scissor lift table.
  • Simplified integration: Connected easily with the existing lift table and Allen-Bradley PLC system.
  • Energy-efficient operation: Compact Power Unit delivered power on demand, minimizing unnecessary energy use.
  • Sustainable alternative: Replaced the limitations of the existing manual positioning approach with an efficient, electrically powered solution.

Application Requirements

Pressure: 2,500 PSI
Flow: 5 GPM
Voltage: 460 VAC
Cylinder: Lift Table Cylinders (2) with 3.00” bore X 1.75” rod diameter with 8.25” stroke

Industries

  • Metal Products
  • Auto / Truck
  • Packaging
  • Mobile Equipment

Product Used

  • Compact Hybrid Power Unit Total Solution

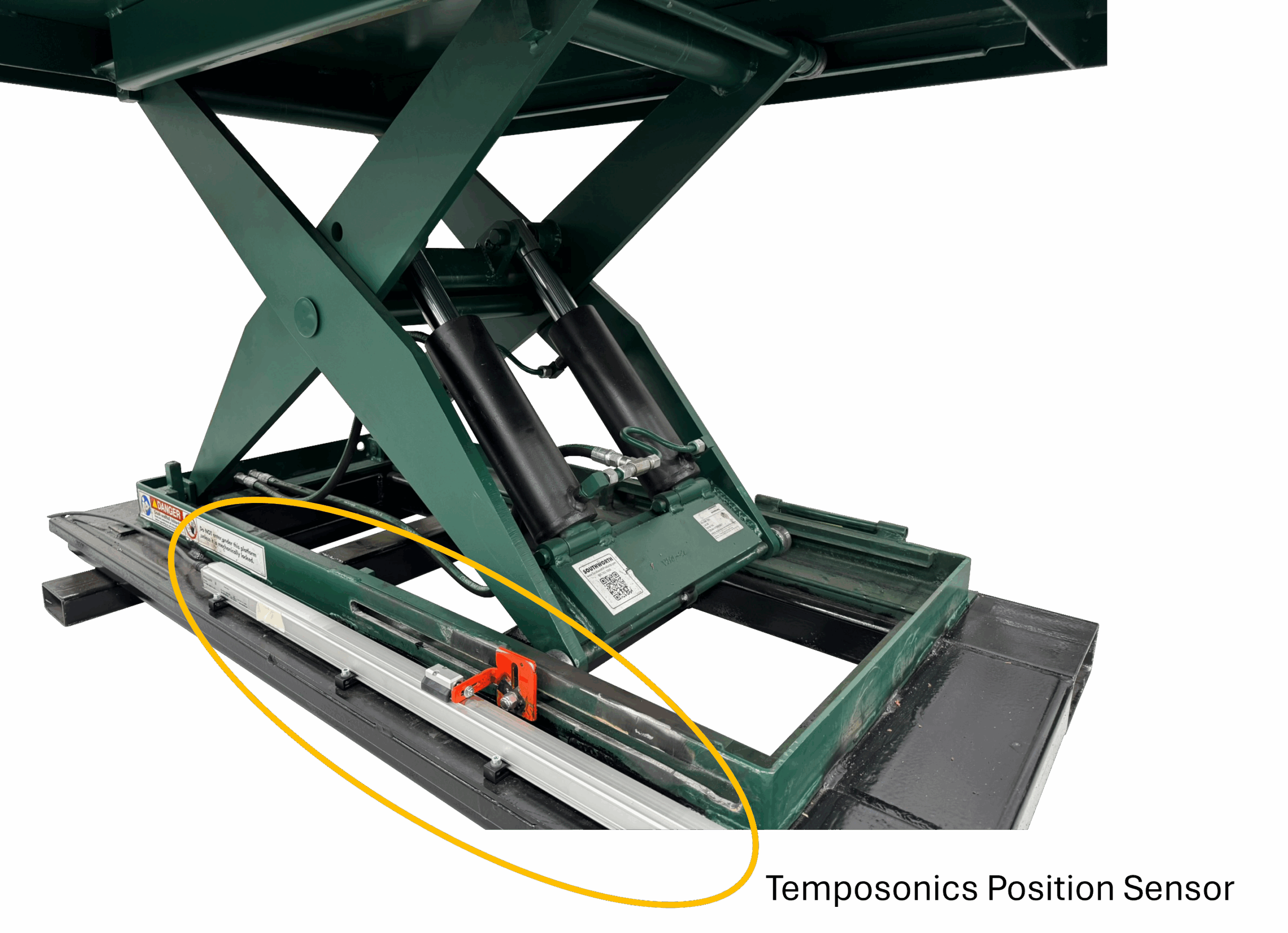

SPU on Automated Scissor Lift System servo power unit - scissor lift control box for scissor lift system scissor lift with actuator and temposonics postion sensor
