AUTOMATING SEQUENTIAL OIL & GAS VALVE CONTROL WITH A MULTI-PORT SERVO POWER UNIT

Challenge

An Oil Field Services company was working with a well operator who was seeking to improve reliability and productivity in their field operations by automating sequential valve operation. They were experiencing labor shortages and found the manual process of controlling valves was unreliable. They were also seeking an alternative to their existing hydraulic power unit that required extensive maintenance and experienced unacceptable downtime. The new system needed to work with existing valves with upgraded valve actuation that was programmable and used to control multiple valves sequentially.

Kyntronics Solution

  • Multi-port “Quad” Servo Power Unit (SPU) with servo drive and programmable control software for valve automation to control multiple valves sequentially
  • The “Quad” SPU allowed controlled operation of up to 4 valves in sequential or simultaneous operation.

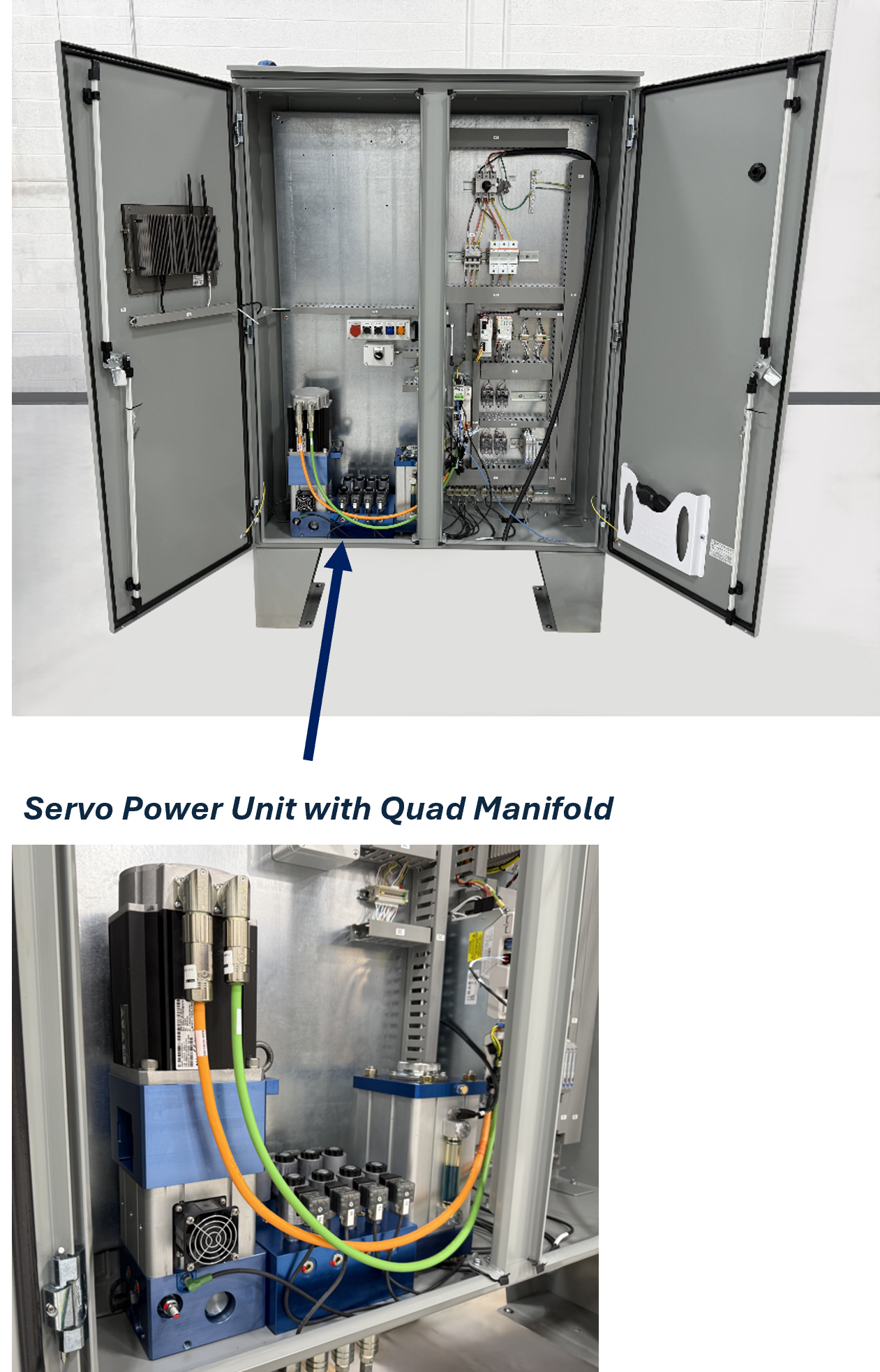

  • Integrated servo motor and drive housed within a control enclosure for outdoor installation
  • Integral HMI for programming and operation control

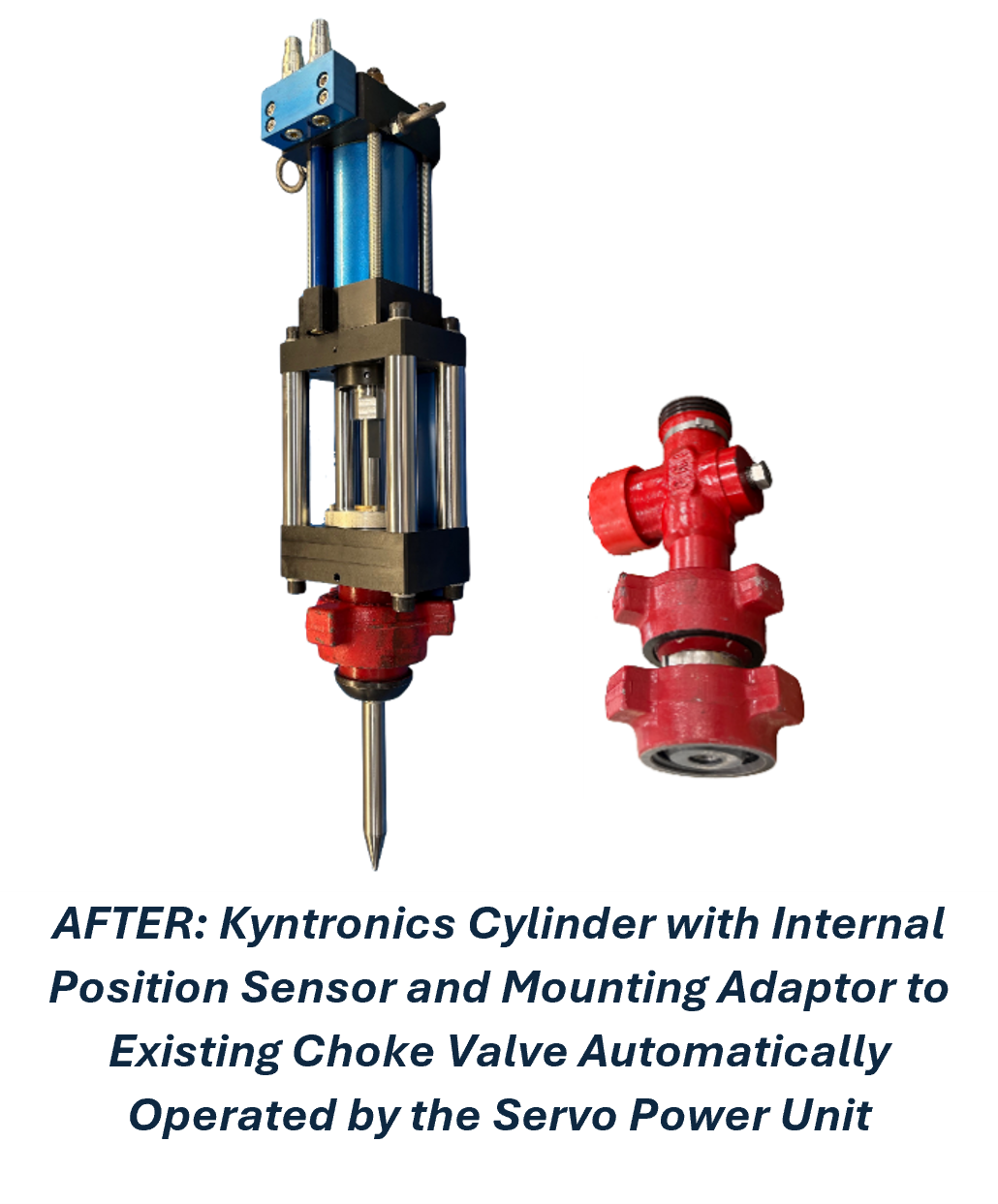

  • Kyntronics-supplied linear actuator with intrinsically safe position sensor that adapted to an existing needle valve

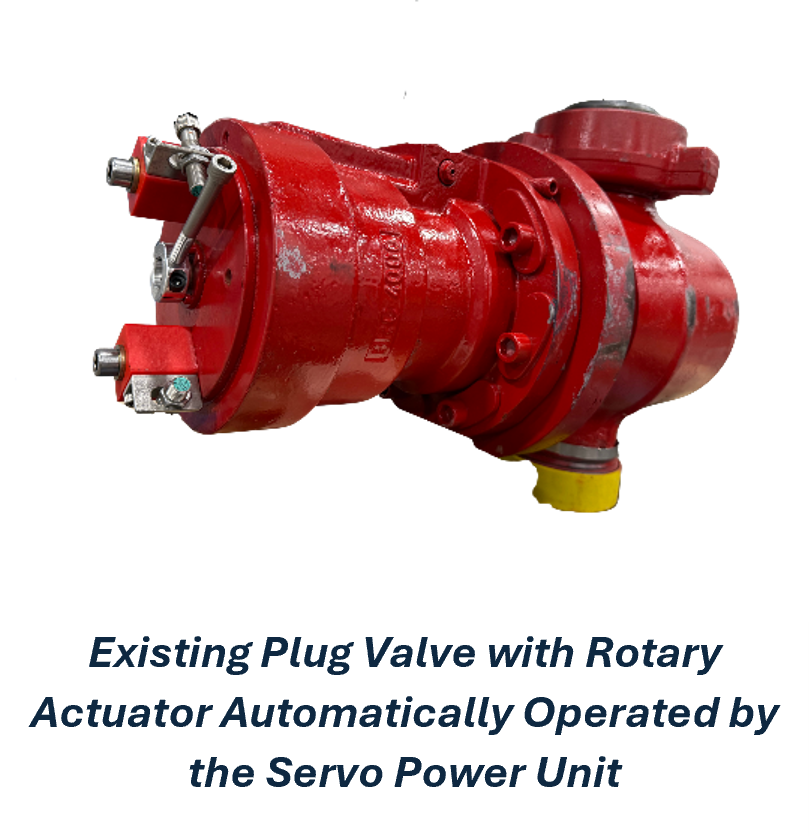

  • Adapting to existing Plug Valves with rotary actuator valve regulation to maintain the required output pressure
  • Automated valve sequencing with programmable control

Customer Benefits

  • Automating valve operation improved productivity and reliability for the well operator
  • More precise control of flow
  • Reduced overall system footprint by locating the Servo Power Unit within the control cabinet
  • HMI-based control with automated sequencing and programming capabilities
  • Enabled remote monitoring of valve operation and system status
  • Cost-effective hydraulic cylinder with integral position sensor supplied by Kyntronics

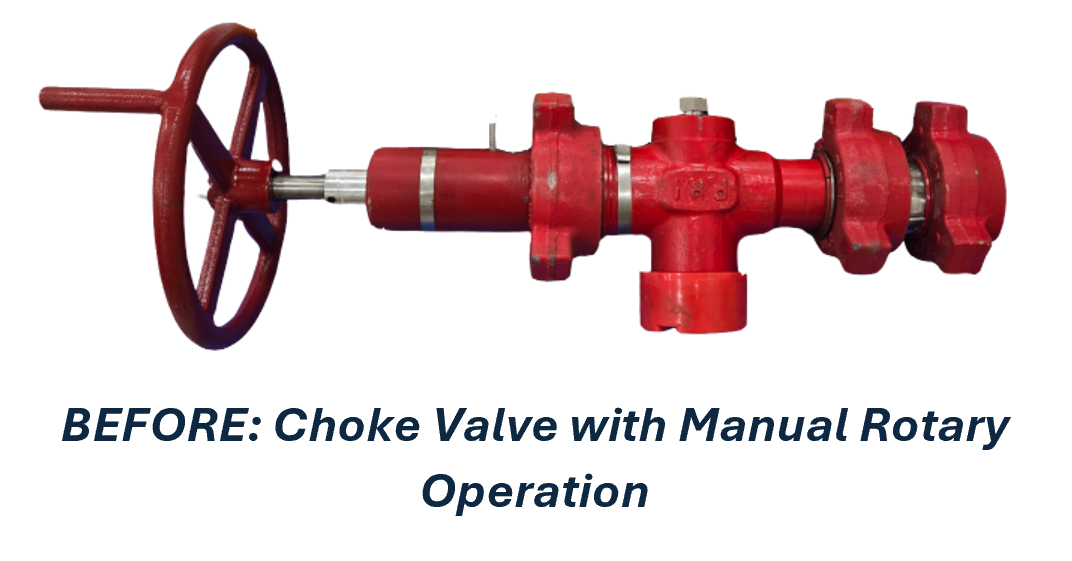

  • Utilized existing Plug and Choke valves reduced cost and streamlined commissioning

Application Requirements

Flow: 5 GPM
Pressure: 2000 PSI
Valve Type: Plug Valve, Choke Valve

Industries

  • Oil & Gas
  • Waste / Water
  • Valving

Product Used

  • SPU Servo Power Unit “Quad” Total Solution with 4 sets of solenoid operate valve circuits
Explore the SPU Servo Power Unit – Total Solution
