Sawmill Planer Head Lifting System: Hybrid Actuator Eliminated Leaky Hydraulics that Spoiled Finished Lumber Product

Challenge

A machine builder of lumber processing equipment had a mill customer who wanted to eliminate hydraulics from a chip head positioner due to hydraulic leaks that were spoiling the finished lumber product. They also wanted to improve the positioning accuracy of the chip head. An electro-mechanical actuator would not work due to the high forces and shock loading of this environment. They required a lifting actuator that was both precise and shock load tolerant.

Kyntronics Solution

  • “Total Solution” electric linear actuator. The system included the actuator, motor, cables, and control system in an enclosure, factory tested and tuned.
  • Linear actuator with force and position feedback using servo control.
  • Position feedback – monitors the machine to detect abnormal wear.

Customer Benefits

  • Replaced an HPU and hydraulic cylinder while providing adequate force to lift the heavy planer head system.
  • An actuator that is environmentally friendly, eliminating the leak risk that was spoiling their product and was able to handle shock loading.
  • Easy retrofit to an existing machine with minor modifications.

Application Requirements

Stroke: 12″
Speed: 4.2 in/sec
Force: 8,000 lbf.

Industries

  • Forestry / Lumber

Product Used:

  • Hybrid Linear Actuation System – Total Solution
Explore the Total Actuation Solution for Heavy Lifting & Positioning
Have an actuator question? We’d love to help!

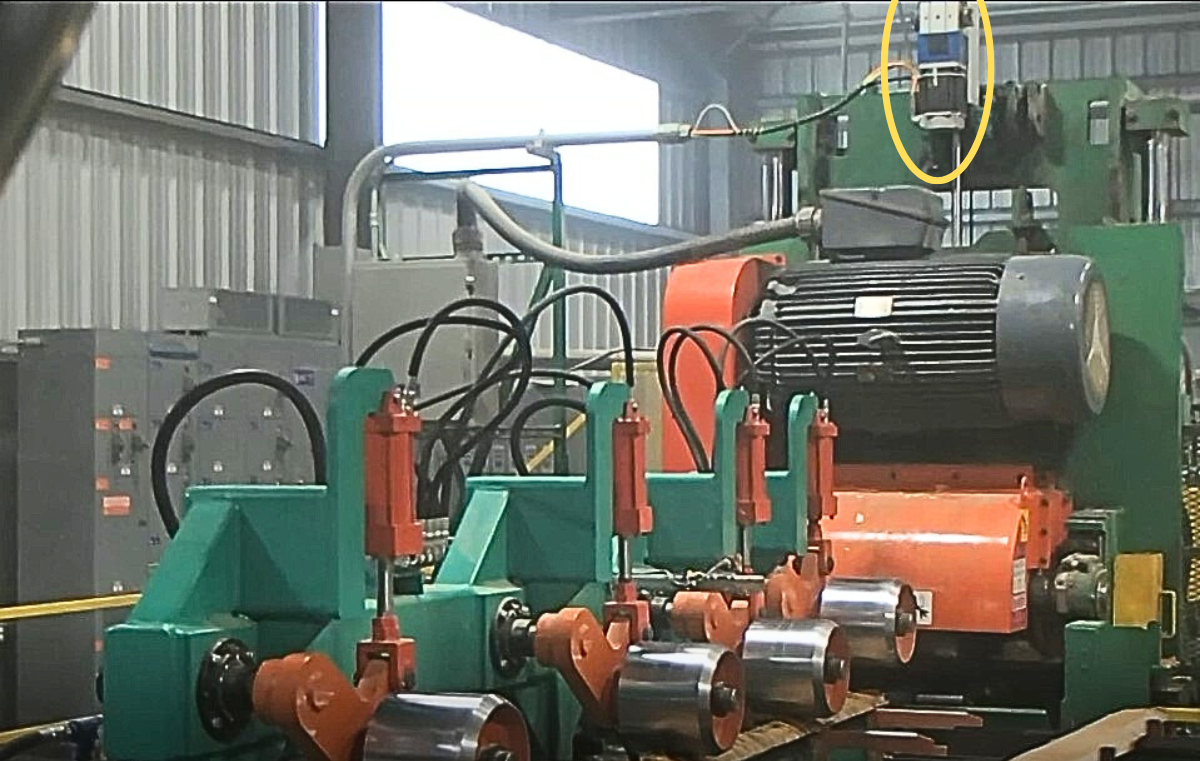

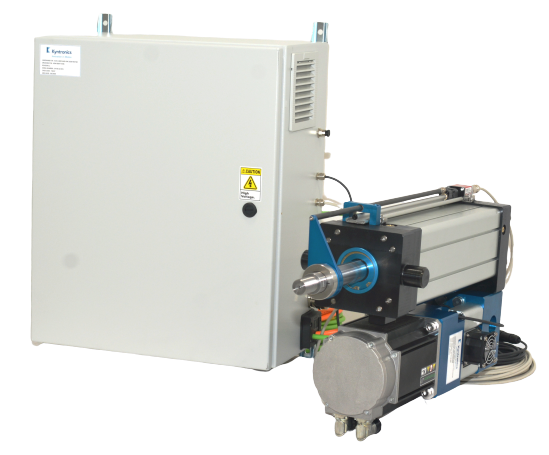

Timber Processing Chip Head Positioner SHA and Control Cabinet for Timber Processing Chip Head Positioner

COST SAVINGS ESTIMATOR

Kyntronics hybrid actuators and compact servo power units cut operating costs — and now you can see the savings yourself. Use our ROI Calculator to compare.
Review Cost Savings Estimate

Request an Application Review

Not sure which actuation technology is right for your application? Tell us a little about your application. Once submitted, a Kyntronics engineer will review your information and follow up with recommendations tailored to your specific requirements.
