Tube Bundling Material Handling: Robust Hybrid Electric Actuators that Reliably Withstand High Shock Loads

Challenge

A steel pipe manufacturer wanted to replace hydraulic cylinder actuators used on the lifting and positioning mechanisms on a material bundler. They were experiencing leaks that were causing unplanned downtime, excessive maintenance, and environmental concerns. They required robust linear actuators that could handle the high shock loads inherent with this machine, which ruled out using electro-mechanical actuators.

Kyntronics Solution

  • “Total Solution” electric linear actuators were installed. The system included actuators, motors, cables and drives/controls mounted on backplates, all factory-tested, and tuned.

Customer Benefits

  • Met the customer’s requirement to eliminate hydraulic power units and hydraulic cylinders, resulting in reduced downtime, and lower maintenance.
  • Reduced operating costs by eliminating hydraulic fluid disposal and replenishment and achieved energy savings.
  • Actuators that can handle shock loading without damage.
  • Environmentally friendly solution

Application Requirements

Stroke: 3″
Speed: 2.3 in/sec
Force: 1,800 lbf.

Industries

  • Metal Products

Product Used:

  • Hybrid Linear Actuation System – Total Solution
Explore Environmentally-Friendly Actuation Solutions
Read how Kyntronics hybrid actuators are different than traditional hydraulics
Need help with sizing your actuator? Contact Us

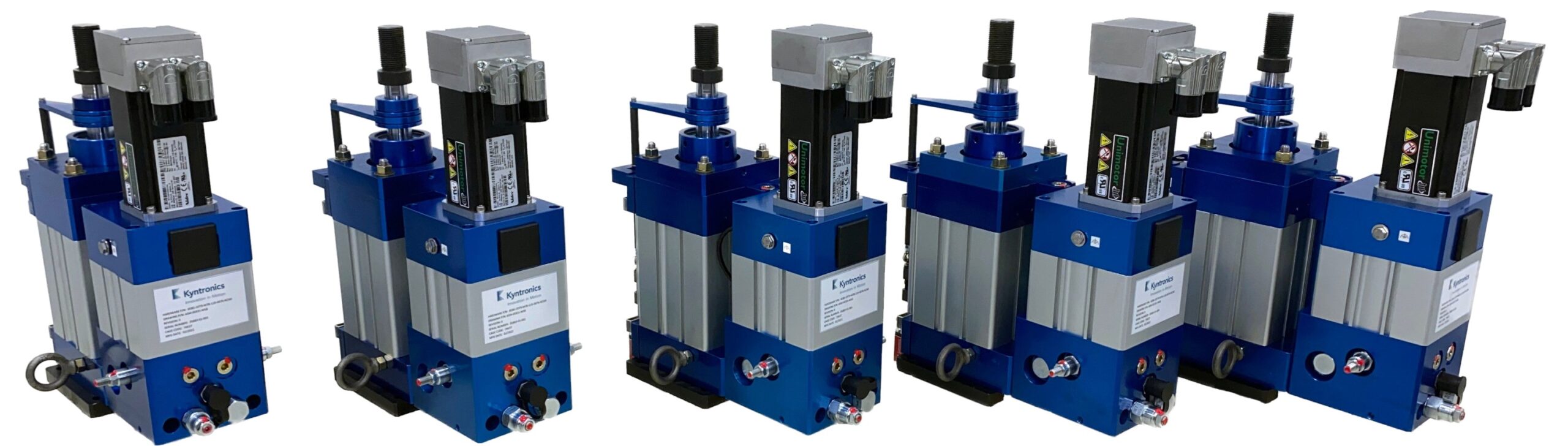

hybrid linear actuator and Machine for Tube Feeder & Bundler Five SHAs for Tube Feeder & Bundler - Material Handling
