Ventilation Door Positioner: Robust Hybrid Actuator provides Reliable Operation for Mining and other Harsh Environments

Challenge

An OEM of equipment for the mining industry required a new electric actuator solution for their upgraded door ventilation system. The main challenge with this application was the harsh environment and a unique design for fitment to their door products. In addition, the actuation system needed to be flexible with a wide variety of stroke lengths and force ranges to provide optimal operation of their ventilation doors.

Kyntronics Solution

  • Kyntronics “Total Solution” package including the electric linear actuator, motor, and drive.
  • Innovative family of configurable rated force and stroke length actuators to fit the product range.
  • Standard software package.

Customer Benefits

  • Faster delivery and factory support.
  • Improved design to handle the harsh environment.
  • Drop-in replacement.

Application Requirements

Stroke: 22″ – 36”
Speed: 2.5 in/sec
Force: 5,027 lbf.

Industries

  • Mining

Product Used:

  • Hybrid Linear Actuation System – Total Solution
See the Hybrid Linear Actuation System for Mining Ventilation Solutions
Ready to discuss your actuator needs? Contact us today.

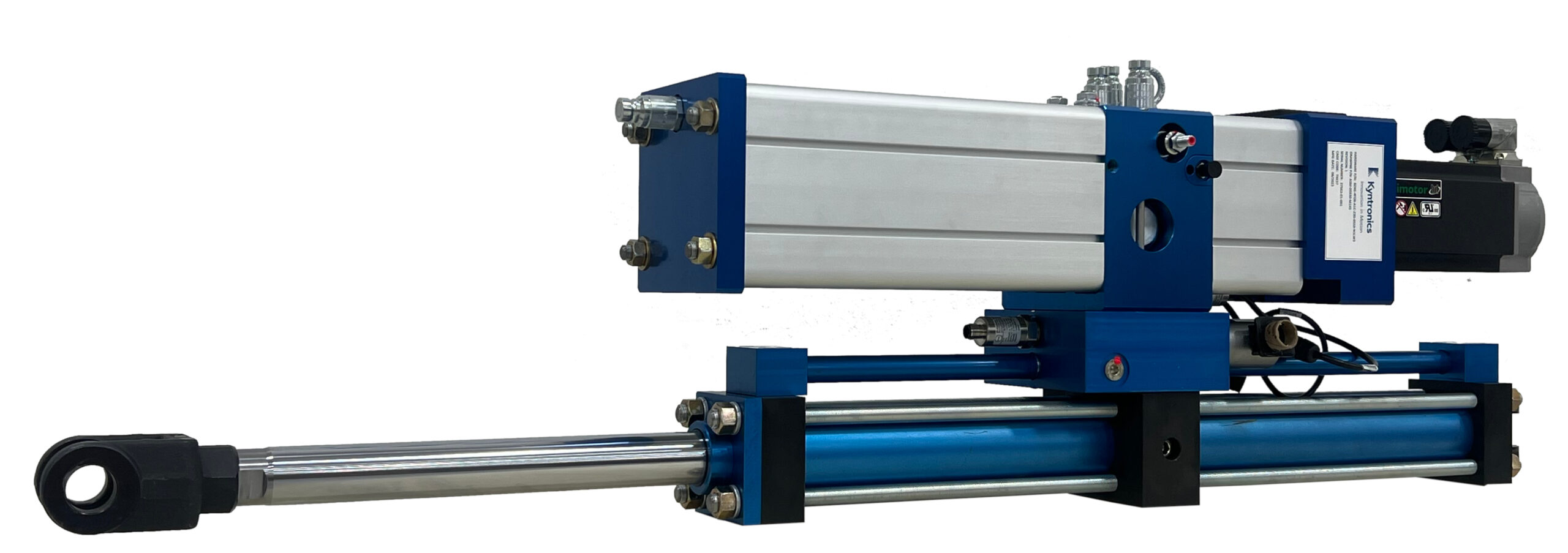

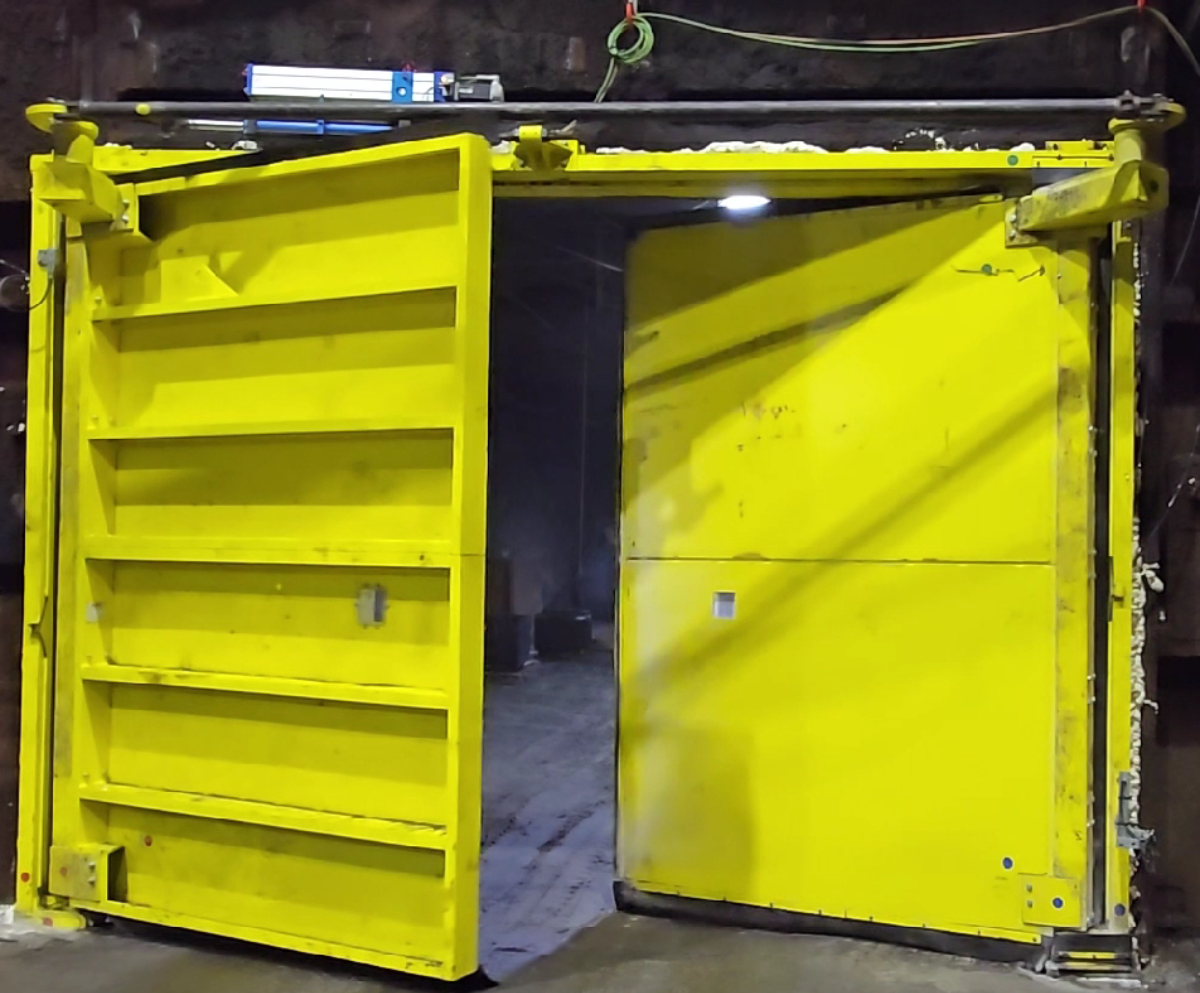

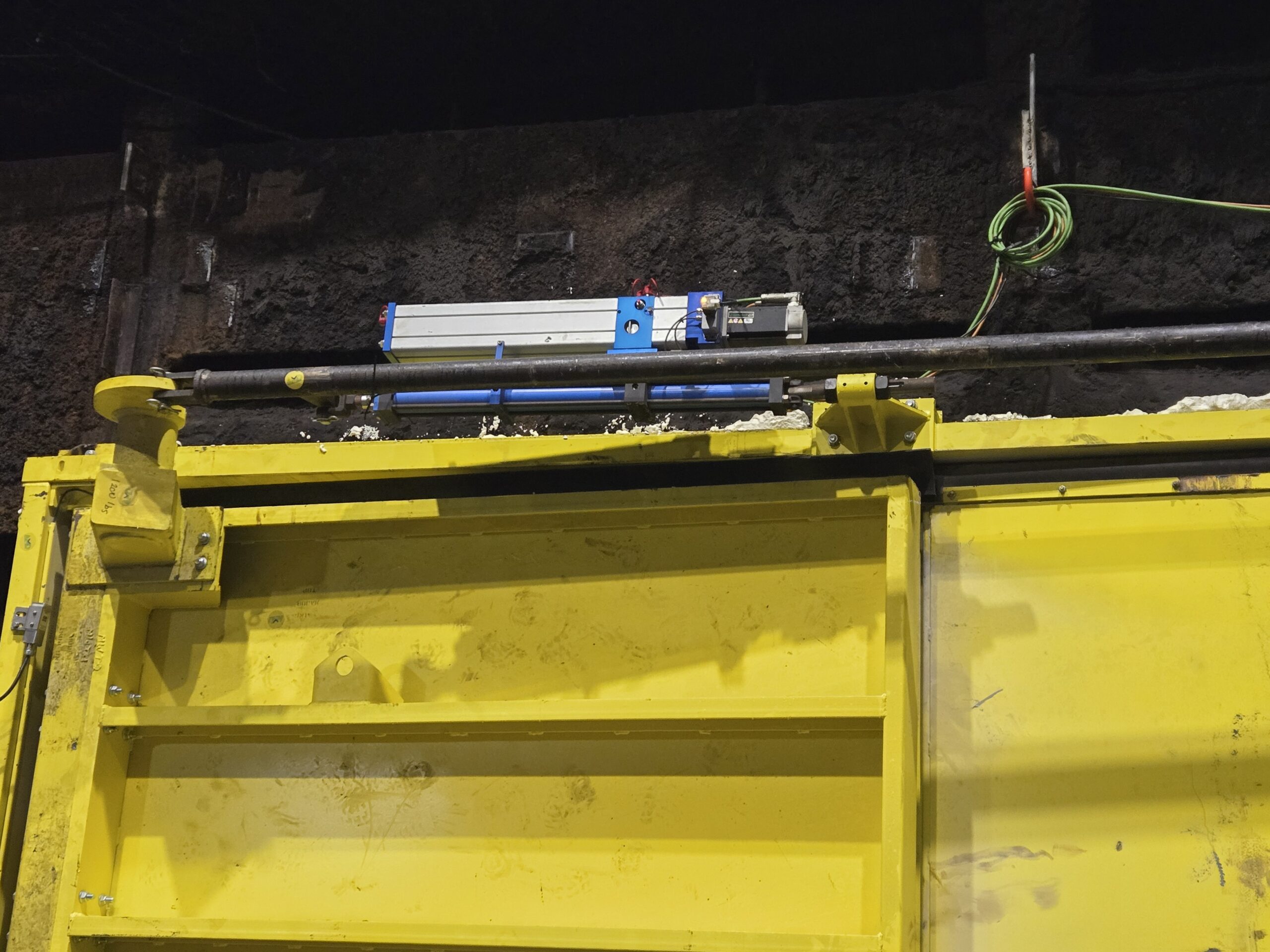

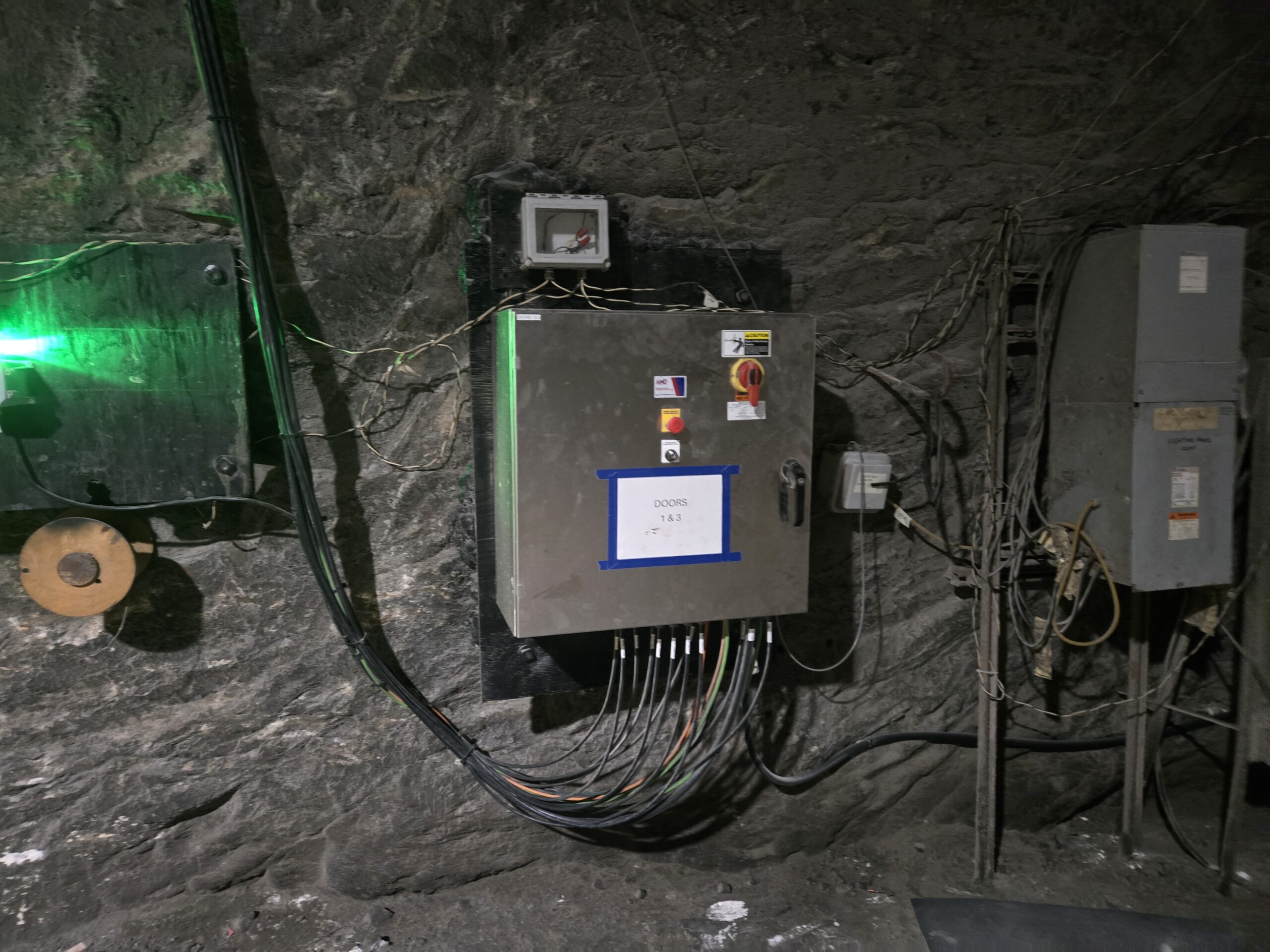

Close Up of actuator and Mine Door for Harsh Environment Ventilation Door Positioner Hybrid Linear Actuator for Harsh Environment Ventilation Application Mine Door Harsh Environment Ventilation Door Positioner Control Cabinet for Harsh Environment Ventilation Door Positioner
