Lifting / Positioning: Long-Stroke Electric Actuators Solved Rod Buckling Issues for a Converting Machine OEM, on Slitter Line

Challenge

A converting machine OEM had rod buckling issues with screw-type electro-mechanical actuators used on their slitter positioners. They required long-stroke precision electric actuators and had ruled out using hydraulic cylinder actuators due to leaks and the risk of product spoilage from fluid contamination.

Kyntronics Solution

  • Long stroke electric linear actuators configured to operate with Rockwell Automation motors.
  • Improved process control – using position and force control.
  • Actuators used Rockwell Automation drives and Kyntronics AOI.

Customer Benefits

  • Eliminated rod buckling issue, increasing machine reliability.
  • Easy integration with Rockwell motor and drives.
  • Longer life expectancy than a screw-type actuator.

Application Requirements

Stroke: 24″
Speed: 5.5 in/sec
Force: 2,400 lbf. each

Industries

  • Converting

Product Used:

  • Hybrid Linear Actuator – Actuator Only
See How to Integrate Long-Stroke Actuators with Rockwell Automation Servo Drives
Read about long stroke actuation solutions
Get in touch with our experts, contact us today

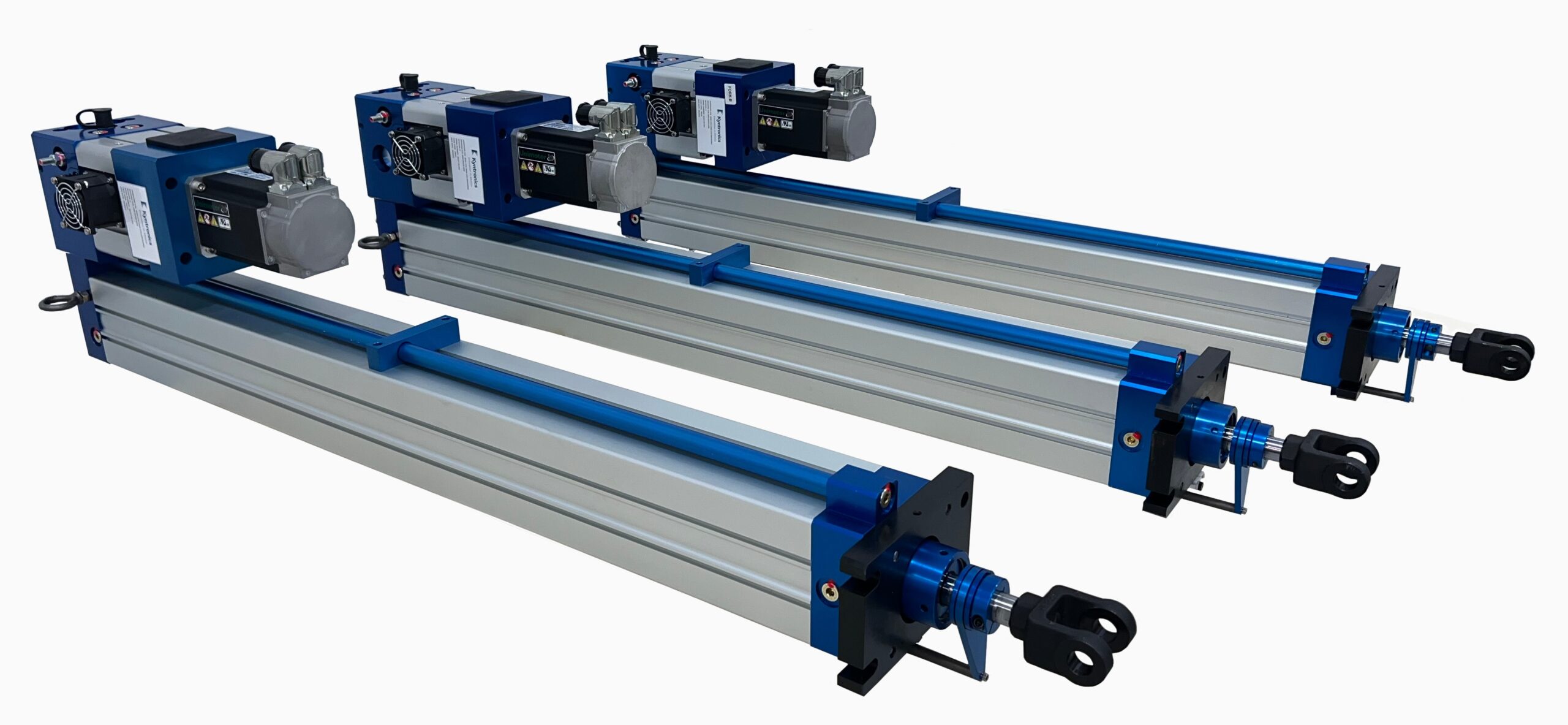

rockwell automation partnership logo Three SHAs for Converting Machine Slitting Positioner Converting Machine Slitter Line - Slitter Positioner Example (1)
