Challenge

A tire OEM needed to update the actuation system on a road simulation tire test machine. The application required high forces applied to the tire in multiple directions, along with precise position and force feedback and programmable control to accommodate different test conditions.

The customer wanted to avoid installing a large, centralized hydraulic power unit (HPU) while maintaining the performance required for demanding tire simulation testing.

An electromechanical actuator was considered but ruled out due to the high forces required and concerns about metal-to-metal wear and long-term reliability. The customer needed a compact, reliable solution that could deliver precise, programmable control without the footprint and complexity of a traditional HPU system.

Kyntronics Solution

Kyntronics provided Hybrid Power Units (SPUs), integrated with hydraulic cylinders and hoses, to modernize the test machine’s hydraulic power and control architecture.

The solution included:

  • Compact hydraulic power: Replaced the need for a large centralized HPU with compact SPUs supplying hydraulic power to the test cylinders.
  • Flexible motor and control integration: Integrated with customer-supplied Mitsubishi motors, drives, and controls to accommodate the customer’s preferred automation architecture.
  • Precision servo control: Enabled position and force feedback to accurately apply and regulate forces during tire simulation testing.
  • Simplified hydraulic system design: Eliminated the need for external hydraulic valves and filters, minimizing system complexity and maintenance requirements.

The result was a compact, electrically powered hydraulic actuation solution that combined high-force capability with programmable servo control for demanding test applications.

Customer Benefits

  • Compact modernization: Reduced reliance on a large, centralized hydraulic power unit while retaining the force capability required for tire simulation testing.
  • Precise test control: Provided position and force control to support accurate, repeatable application of test forces.
  • Flexible test programming: Simplified programming of different test parameters to accommodate varying simulation requirements.
  • Integrated data collection: Supported position and force data collection during testing for improved test monitoring and analysis.
  • Reduced maintenance: Eliminated external valves and filters, minimizing hydraulic system components and maintenance requirements.
  • Reliable high-force performance: Delivered a hydraulic alternative to electromechanical actuation for an application where high forces and long-term reliability were important considerations.

Application Requirements

Force: 29,333 lbf.
Speed: 1.6 in/sec
Stroke: 14.5”

Industries

  • Auto / Truck

Product Used:

  • Compact Power Unit Only

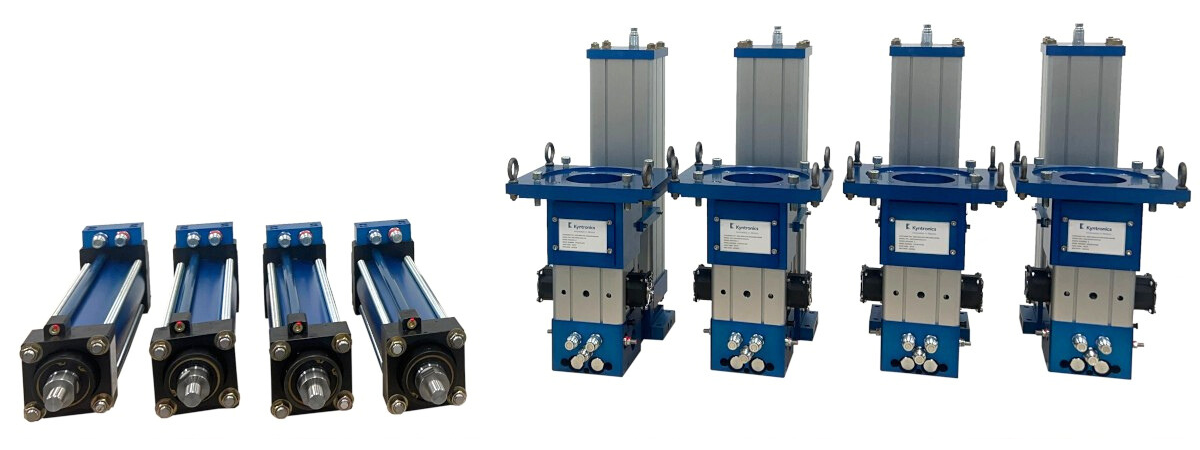

SPU for Road Simulation Tire Test Four SPUs for Road Simulation Tire Test
