UPGRADING A PRESSURE CYLINDER DIMPLE PRESS WITH HYBRID ACTUATION

Challenge

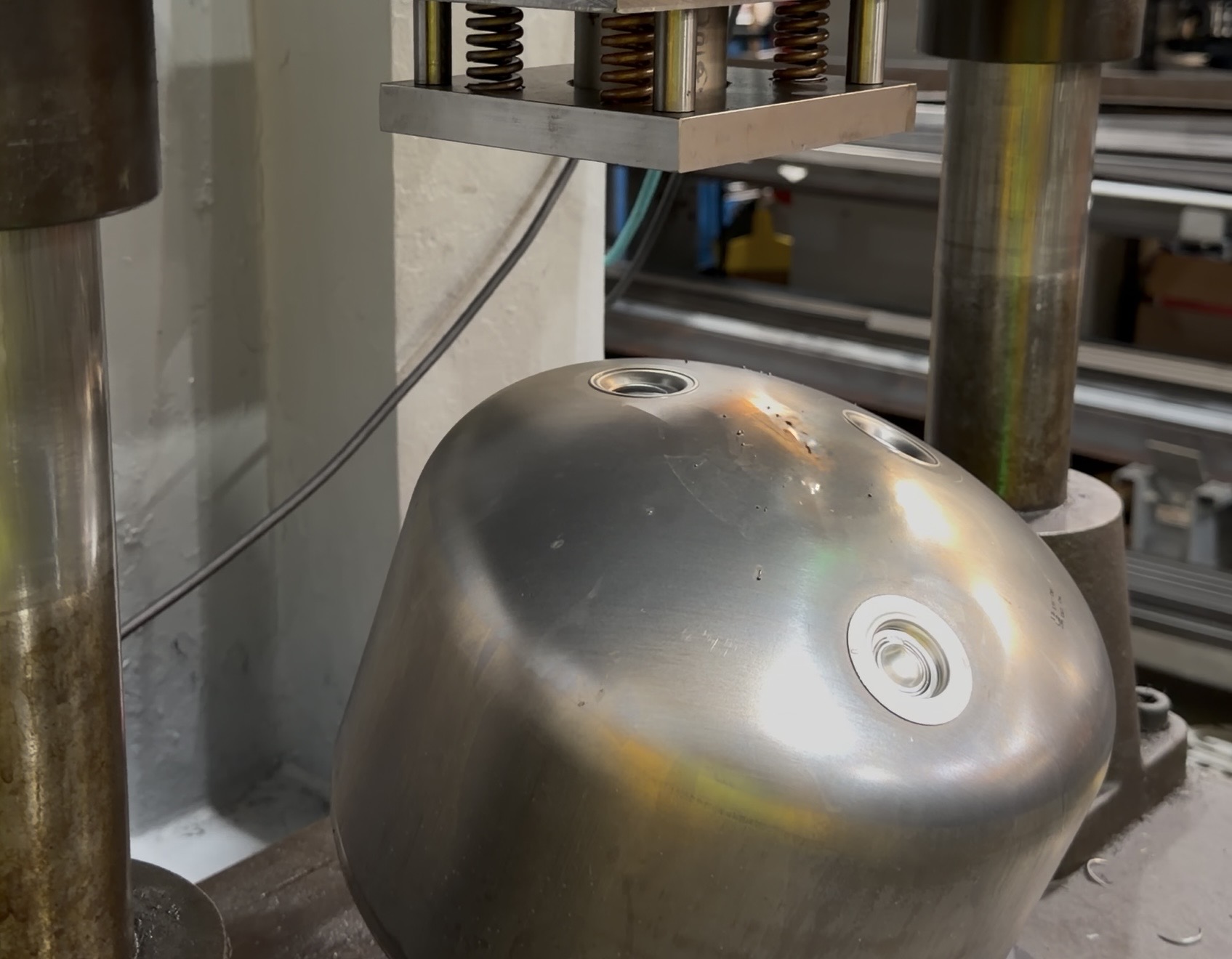

A large metal fabricator of pressure vessels was experiencing high maintenance and downtime with their existing hydraulic press system. They were seeking to eliminate traditional hydraulics and achieve more precise and repeatable control within their process. However, due to significant shock loading within the application, conventional screw-driven electro-mechanical actuators were not a viable solution.

Kyntronics Solution

Customer Benefit

  • Improved process consistency with reliable, repeatable quality checks to ensure precise dimple formation
  • Energy savings and reduced downtime through advanced hybrid actuation technology and power-on-demand operation
  • Flexible, programmable operation allowing for quick changeover across a range of punch sizes based on selected recipes
  • Low maintenance requirement by eliminating hoses, filters, and fluid leaks

Application Requirements

  • Force: 30,000 lbf.
  • Stroke: 15”
  • Speed: 2 in/sec

Industries

  • Metal Fabrication
  • Metal Bending
  • Punching / Piercing

Product Used:

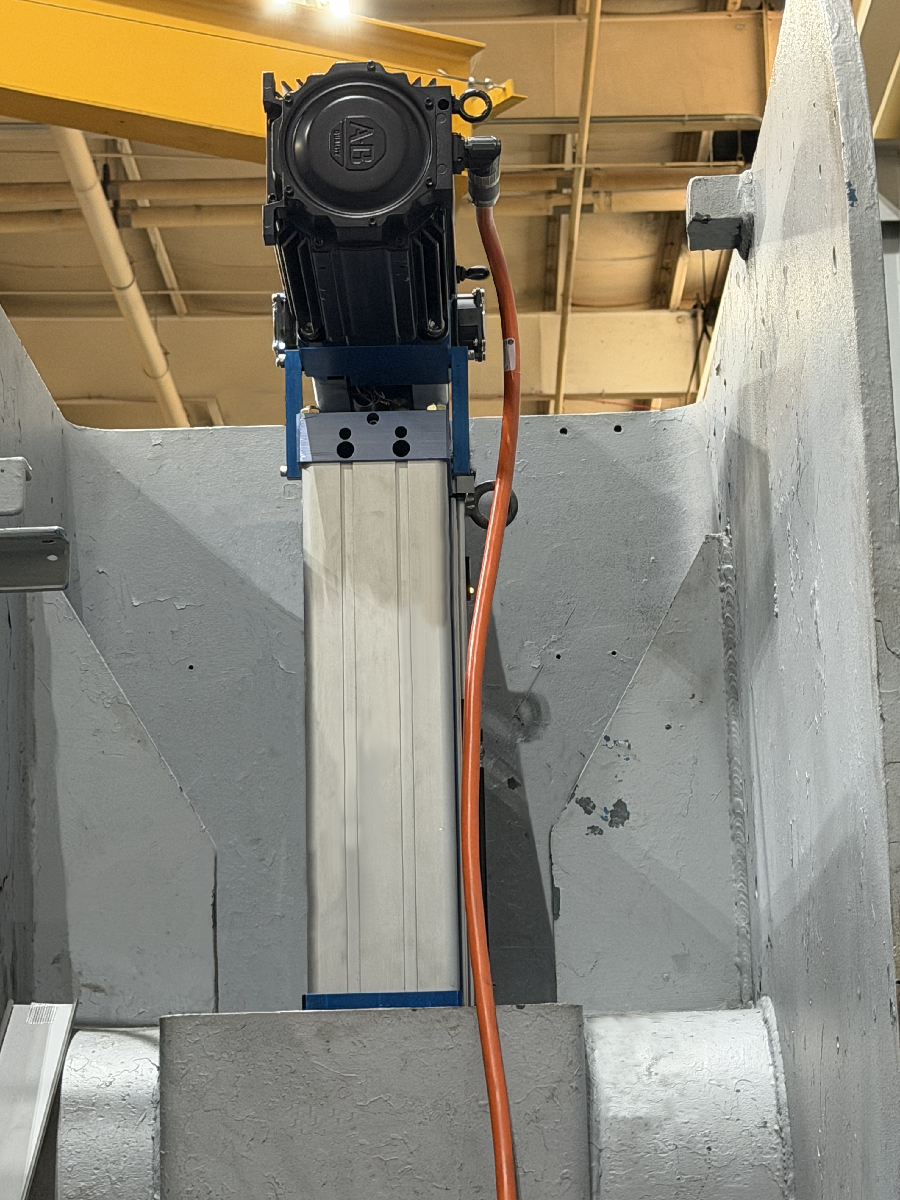

  • SHA Hybrid Linear Actuator – Actuator Only
Explore the SHA Hybrid Linear Actuator – Actuator Only
