WHY EMAS FAIL: UNDERSTANDING THE MECHANICAL LIMITS OF SCREW-DRIVEN ACTUATORS

Learn the most common electro-mechanical actuator (EMA) failure points, including gear wear, screw degradation, lubrication breakdown, and lifecycle limits.

UNDERSTANDING FAILURE POINTS IN ELECTRO-MECHANICAL ACTUATORS (EMAS)

All screw-type actuators wear out. It’s not a matter of if, it’s a matter of when. Electro-mechanical actuators rely on gears, screws, nuts, bearings, couplings, seals, and lubrication, all operating in precise alignment under load. Because of this, EMAs have a predictable life limit, often defined by L10 life.

Understanding where EMAs fail helps engineers make more informed actuation technology decisions.

WHERE DO EMAS TYPICALLY FAIL?

Screw-driven actuators use a motor to rotate a lead screw, roller screw, or ball screw. As the screw turns, it converts rotary motion into linear movement. In some designs, gearboxes or belt drives are added between the motor and screw to adjust speed and torque. This means power is transferred through multiple mechanical interfaces, from motor, to coupling, to gears or belts, to screw, to nut before linear motion is produced.

At each of these points, load is transferred, mechanical parts are meshing, alignment must be maintained, and lubrication must perform correctly. Over time, these mechanical contact points become predictable wear locations.

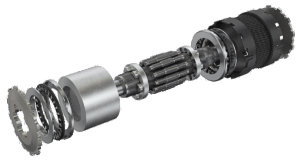

SCREW-TYPE ACTUATOR

1) Motor-to-Gear Coupling
Torque generated by the motor must transfer into the gear train. This coupling is the first mechanical interface in the system.

Potential failure contributors include:

  • Misalignment between motor and gear input
  • Fatigue under shock loading
  • Wear under high duty cycles

Any loss of alignment or repeated impact loading can accelerate degradation.

2) Gear Meshing and Alignment
EMAs depend on precision gear trains to convert motor torque to usable linear force.

Common wear and failure modes include:

  • Gear wear
  • Misalignment between stages
  • Increasing backlash over time (positional loss)

High speed, high load, and high frequency operation all accelerate gear wear.

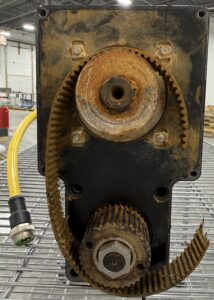

3) Gear-to-Belt Alignment (Where Applicable)
Some electro-mechanical actuator designs incorporate belt drives between the motor and screw to modify speed and torque.

Common failure contributors include:

  • Belt stretch over time
  • Misalignment between pulleys
  • Improper tension
  • Shock loading
  • High duty cycle operation
  • Environmental ingress

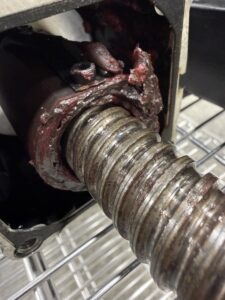

4) Screw-to-Nut Alignment and Wear
At the core of most EMAs is a screw-and-nut assembly that converts rotary motion into linear motion, introducing unavoidable metal-to-metal contact.

Key considerations include:

  • Load-dependent wear
  • Dependence on lubrication
  • Increased wear under side-loading

Actuator life in screw-driven systems is directly tied to load. Undersizing accelerates wear, while oversizing increases cost and size. Regardless of sizing strategy, screw and nut wear is inherent to the design.

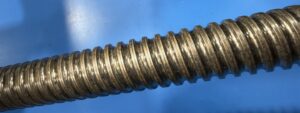

metal to metal wear on a screw type electric actuator

5) Bearings and Bushings
Bearings and bushings support rotating and translating components throughout the actuator.

Common degradation factors include:

  • Shock loads
  • Side loads
  • High duty cycles
  • Lubrication breakdown
  • Contamination

Each bearing has its own L10 life rating. Over time, fatigue accumulates and performance degrades.

6) Sealing, Lubrication, and Environmental Protection
Electro-mechanical actuators rely on both proper lubrication and effective sealing to maintain performance and service life. Gears, bearings, and screw assemblies require lubrication to reduce friction and minimize wear. Over time, however:

  • Lubrication viscosity can degrade due to heat
  • Repeat loads (at the same location) may cause premature failure
  • High duty cycles increase frictional temperature
  • Contamination can reduce lubrication effectiveness and interfere with proper mechanical power transmission

As lubrication performance declines, friction increases and wear accelerates. At the same time, many EMAs utilize shaft seals to protect internal components from contamination and to retain lubrication within the housing.

Over time:

  • Elastomer materials can harden from temperature cycling
  • Continuous motion can degrade sealing surfaces
  • Environmental exposure can reduce sealing effectiveness

It is also important to note that some EMA manufacturers publish static IP ratings, meaning the rating applies when the actuator is not moving. During motion, sealing effectiveness may differ from the published value.

7) Sensitivity to Side Loading
Side loading must be carefully controlled in electro-mechanical actuators.

Screw-driven systems rely on precise alignment between:

  • Gear stages
  • Screw and nut assemblies
  • Bearings and support structures

Off-axis forces introduce uneven wear, screw deflection, bearing overload, and accelerated failure. Even minor misalignment can significantly reduce service life.

8) Shock Loads and Hard End Stops
Because EMAs rely entirely on mechanical components to transmit force, all shock loads travel directly through the screw, nut, bearings, and motor. This can lead to:

  • Accelerated wear of the screw assembly
  • Positioning errors and repeatability issues
  • Lost motion and backlash over time
  • Sudden or catastrophic failure

One of the most destructive events for an EMA is running the actuator at speed into a hard mechanical end stop. The sudden deceleration can seize or bind internal components together, often resulting in permanent damage and requiring actuator replacement.

9) Motor Encoder Position Control
Most electro-mechanical actuators use the motor encoder for position control. In these systems, position is measured at the motor rather than at the actuator output (end of the screw/rod). Between the encoder and the end of the screw or rod are several mechanical components, including couplings, gears, belts, and the screw assembly. Backlash, belt slip, and mechanical wear within these components can introduce positional inaccuracies.

10) High Duty Cycles and High Frequency Operation
Continuous or high-frequency motion increases:

  • Frictional heat
  • Mechanical fatigue
  • Wear rate across all interfaces

Applications requiring constant cycling or rapid acceleration should carefully consider how mechanical wear accumulation impacts lifecycle cost and uptime expectations.

SELECTING THE RIGHT TECHNOLOGY FOR THE APPLICATION

Every actuation technology has strengths and limitations. In screw-driven EMAs, motion is transmitted through multiple mechanical contact points, and each introduces alignment requirements, lubrication dependency, and fatigue accumulation over time.

Applications involving shock loading, side loading, high cycle frequency, or environmental exposure may require technologies with fewer mechanical wear points. Evaluating actuator selection through the lens of lifecycle performance, not just initial specification, helps ensure long-term reliability and reduced downtime.
