HOW DOES A HYBRID LINEAR ACTUATOR WORK

In today's fast-paced industrial landscape, efficiency, precision and reliability are more critical than ever. Hybrid linear actuators are revolutionizing motion control, combining the best of electric and hydraulic technologies to deliver powerful, precise, and energy-efficient solutions. This article explores how hybrid linear actuators work, their key advantages, and why leading manufacturers are making the switch.
Category:
Education, Energy Efficiency, Hybrid Actuator – Actuator Only, Hybrid Actuator Total Solution, Insights, Robust / Low Maintenance

WHAT IS A HYBRID LINEAR ACTUATOR?





Kyntronics’ hybrid linear actuator integrates the power of hydraulics with the precision of electric control, offering a self-contained, sealed, and maintenance-friendly alternative to traditional hydraulic and electro-mechanical and pneumatic systems.

KEY FEATURES OF KYNTRONICS’ HYBRID LINEAR ACTUATORS

  • Power Source: AC or DC electrical input

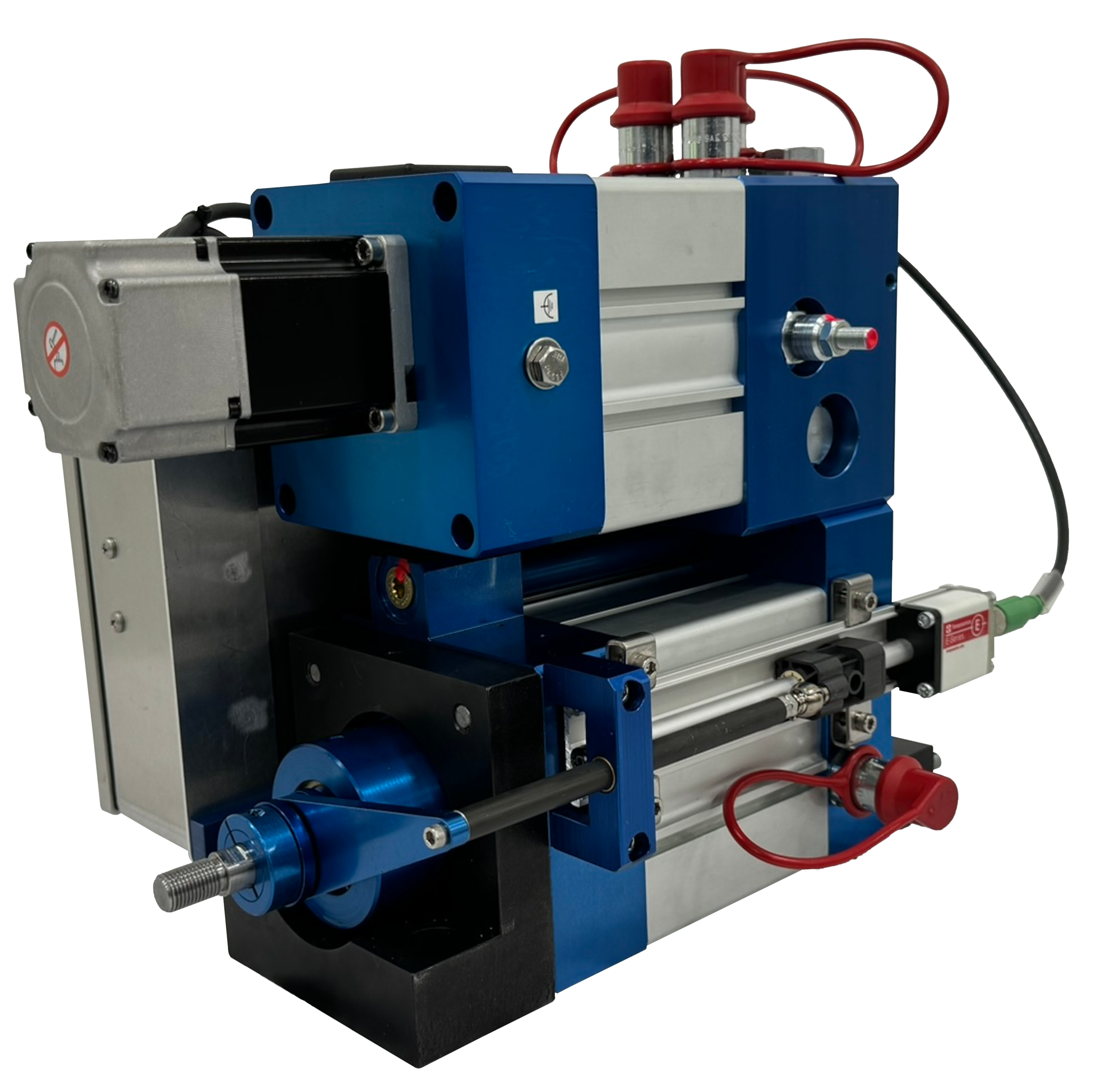

  • Key Components: Integrated cylinder, motor, pump, and control system
  • Operation: Closed design with a small volume of sealed hydraulic fluid

Unlike conventional hydraulic systems, our hybrid actuators eliminate external hoses, pumps, and reservoirs, reducing leak risks and maintenance costs.



HOW IT WORKS: PRECISION IN MOTION

Our hybrid linear actuators operate with a closed-system design ensuring smooth, controlled motion in demanding industrial applications.

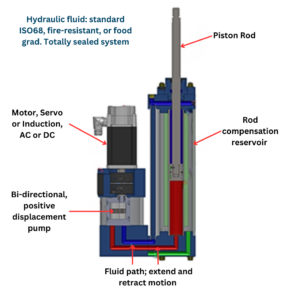

Actuator Operation

  1. Extension: Motor rotates pump in one direction to extend piston rod.
  2. Retraction: Motor reverses direction to retract piston rod.

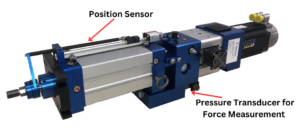

  3. Control: Integrated position sensors or limit switches provide real-time feedback, ensuring precise and repeatable movement. An optional pressure transducer is used to measure the force exerted by the piston rod.

Hybrid actuators enable programmable positioning, speed regulation, and load monitoring, making them ideal for automation and Industry 4.0 applications.



THE KYNTRONICS ADVANTAGE: SOLVING INDUSTRY CHALLENGES

At Kyntronics, our hybrid linear actuators are engineered to address the most pressing challenges in industrial automation, manufacturing, and heavy machinery.

Key Benefits

  • Energy Efficiency: Power-on-demand technology reduces energy consumption compared to traditional hydraulic systems.
  • Low Maintenance: A sealed, leak-free design eliminates the need for external reservoirs, filters, and hoses.
  • Shock & Side-Load Tolerance: Handles high-force applications with superior durability.
  • Smart Connectivity: Industry 4.0 integration enables remote diagnostics, predictive maintenance, and data monitoring.







TAILORED SOLUTIONS FOR EVERY INDUSTRY

Kyntronics offers a versatile range of hybrid linear actuators, customizable to meet the needs of manufacturing, automation, aerospace, medical, and heavy industries.

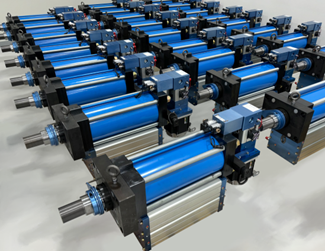

  • Force Ratings: <100 lbs to 150,000 lbs
  • Speed: Up to 34.5 in/s
  • Stroke Length: Customizable up to 120 in
  • Power Options: 24-80 VDC or 120-480 VAC
