Material Handling Bin

Challenge

An OEM had a customer ask for an all-electric solution that did not involve hydraulic lines or HPU. Our solution was a simple, cost-effective design which incorporated an induction motor and VFD. A screw type actuator couldn’t be used for this application due to shock loading and reliability concerns.

Kyntronics Solution

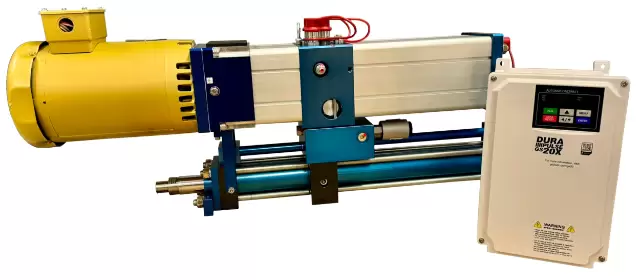

• Actuator only system using Automation Direct drives and Induction motor
• Custom mounting to ensure lift fitment when collapsed
• Custom 56C motor mounting plate
• Simple: Limit switch control with integrated holding valves

Customer Benefit

• An electric solution with no HPU/Hydraulics
• A new lift design with minimal maintenance
• Integrated locking valve for added safety on extend

Application Requirements

• Stroke: 18"
• Speed: 2.27 in/sec
• Force: 8,890 lbf

Industries

• Material Handling
• Lifting
