Lifting / Positioning: Retrofitting a Traditional Hydraulic Power Unit with Electrified Hydraulic Power and Advanced Control

Challenge

A military customer wanted to modernize a heavy-duty shipboard lifting and positioning system used to operate a large panel. The existing system relied on a large, centralized hydraulic power unit (HPU) that the customer wanted to eliminate.

The retrofit needed to retain the existing hydraulic cylinders and lifting mechanism while delivering improved power and control. Application requirements included fast extension and retraction times, synchronized operation, system redundancy, and the ability to operate manually in the event of a power outage.

The solution also needed to support maintenance and servicing without requiring the entire lifting system to be taken out of operation.

Kyntronics Solution

Kyntronics engineered a complete Hybrid Power Unit (SPU) Total Solution to modernize the existing hydraulic system—replacing the traditional HPU with a distributed, electrically powered hydraulic architecture while retaining the customer’s existing cylinders and lifting mechanism.

The system incorporated two banks of five SPUs, a control cabinet, and a remote operator HMI station with application-specific software.

The integrated solution included:

  • Ten SPUs in two banks of five: Replaced the conventional centralized HPU with a distributed hydraulic power system.
  • Complete control cabinet: All servo drives and electronics were mounted, wired, and tested as part of the system package.
  • Synchronized operation: Coordinated speed across both five-SPU banks to support controlled lifting and positioning.
  • Redundant system architecture: Enabled the system to continue operating while one or more SPUs were being serviced.

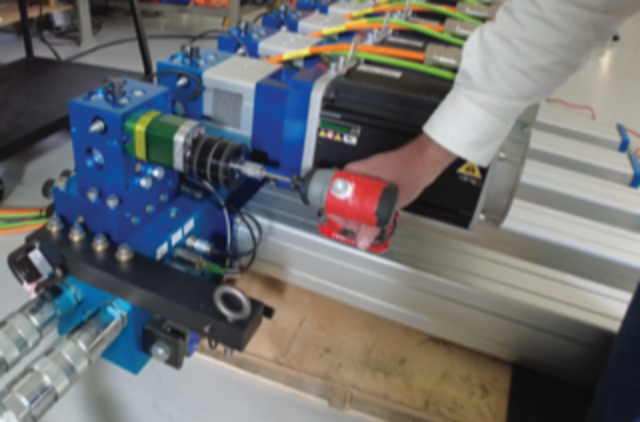

  • Manual operation capability: Provided a means to operate the system in the event of a power outage.
  • Existing equipment integration: Connected the new power and control system to the customer’s existing hydraulic cylinders and lifting mechanism.

Rather than requiring a complete redesign of the lifting equipment, Kyntronics modernized the hydraulic power and control architecture while preserving critical existing machine components.

Customer Benefits

The retrofit delivered a modernized hydraulic actuation system designed around the customer’s demanding shipboard lifting requirements.

  • Eliminated the traditional HPU: Removed the need for the large centralized hydraulic power unit, helping reduce operating costs, energy consumption, and maintenance requirements.
  • Preserved existing equipment: Integrated with the customer’s existing cylinders and lifting mechanism, avoiding the need to replace the entire actuation system.
  • Improved system availability: Ten SPUs arranged in two banks provided redundancy and the ability to service individual units while keeping the system operational.
  • Coordinated lifting performance: Synchronized operation across both SPU banks supported controlled extension and retraction.
  • Added operational flexibility: Manual operation capability provided an alternative in the event of a power outage.
  • Delivered a complete engineered solution: The customer received an integrated power and control package, including SPUs, control cabinet, drives, wiring, software, and remote HMI.

Modernizing Hydraulic Systems Without Replacing the Entire Machine

This shipboard application demonstrates how Kyntronics can modernize existing hydraulic equipment by replacing traditional centralized hydraulic power with compact, electrically powered units and advanced system control.

By retaining the customer’s existing cylinders and lifting mechanism, the retrofit addressed the limitations of the original HPU-based architecture without requiring a complete machine redesign.

Kyntronics helps manufacturers and equipment operators upgrade hydraulic power and control while making better use of the equipment they already have.

Application Requirements

GPM: 54
Speed: 7 in/sec
Force: 85,000 lbf.

Industries

  • Aerospace / Defense

Product Used:

  • Hybrid Power Unit – Total Solution

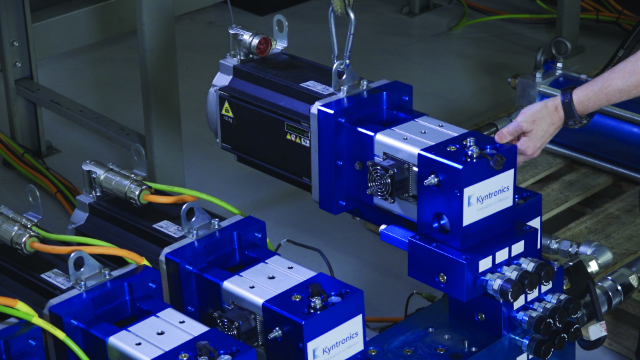

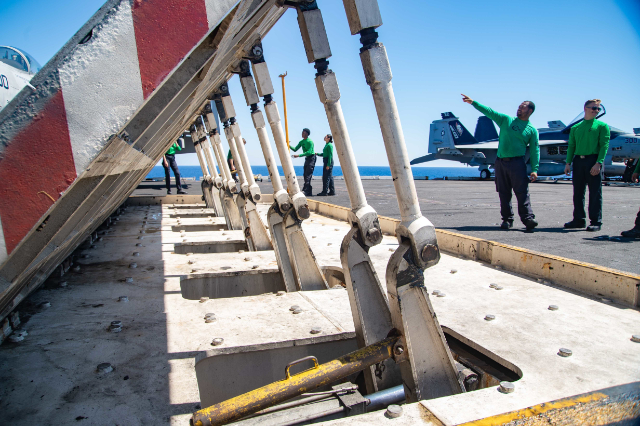

SPU for Shipboard Jet Blast Deflector Lifting Actuation System SPU and Inside of Control Cabinet for Shipboard Jet Blast Deflector Lifting Actuation System Shipboard Aircraft Carrier Jet Blast Deflector Lifting Actuation System
