Design and Optional Features for S-Series SMART Electro-Hydraulic Linear Actuators

S-Series actuators incorporate numerous design features that increase operating performance and reduce maintenance.

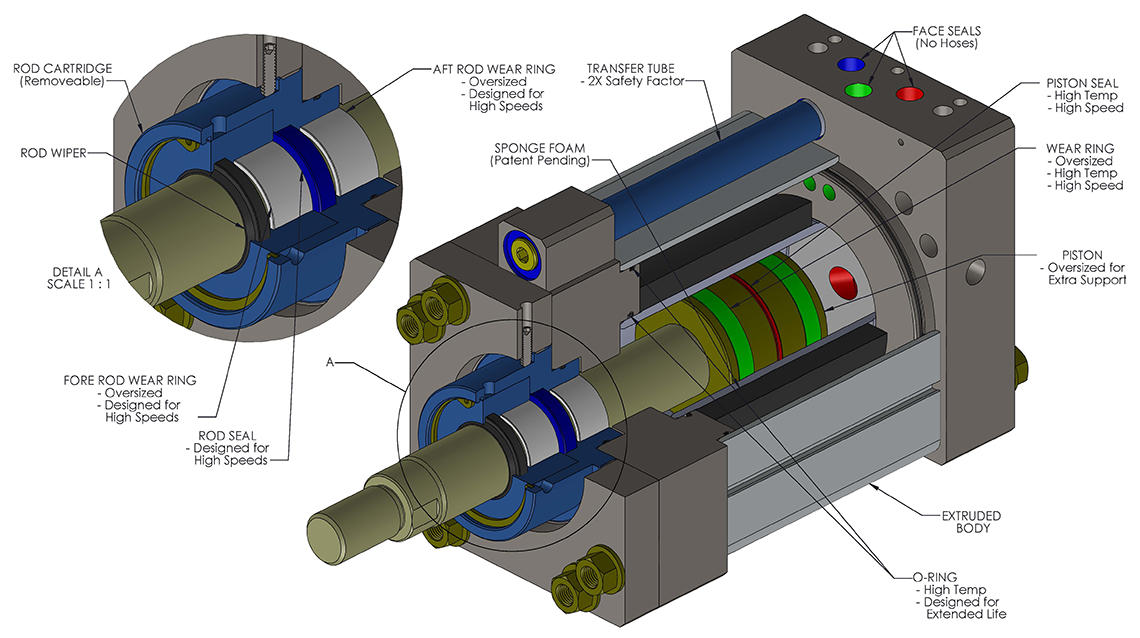

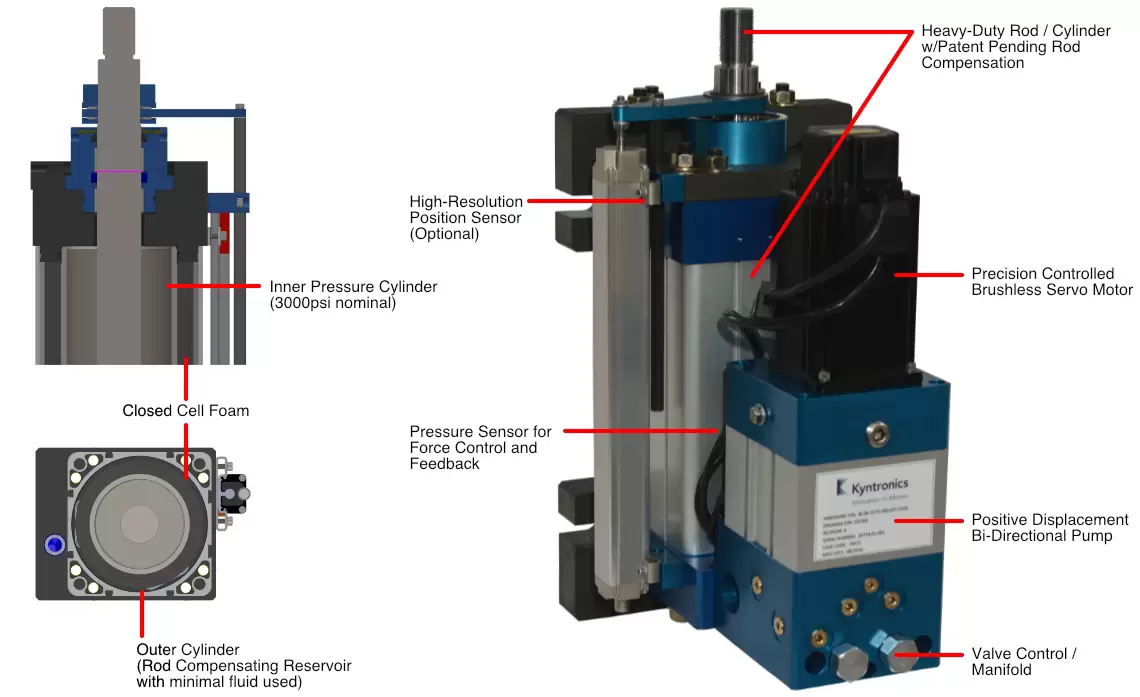

S-Series Actuator Design Features:

  • Wide range of AC and DC motor options
  • Rod seal tested to over 50 million inches of travel without failure (load independent)
  • Closed system eliminates contamination, moisture and air infiltration
  • Minimal fluid
  • Oversize wear rings and bearings provide extra support during rod-extension
  • Servo control eliminates pressure spikes
  • Relief valves eliminate over pressure
  • Temperature monitoring eliminates over-temperature conditions
EMA Benefits View Larger
EMA BenefitsView Larger

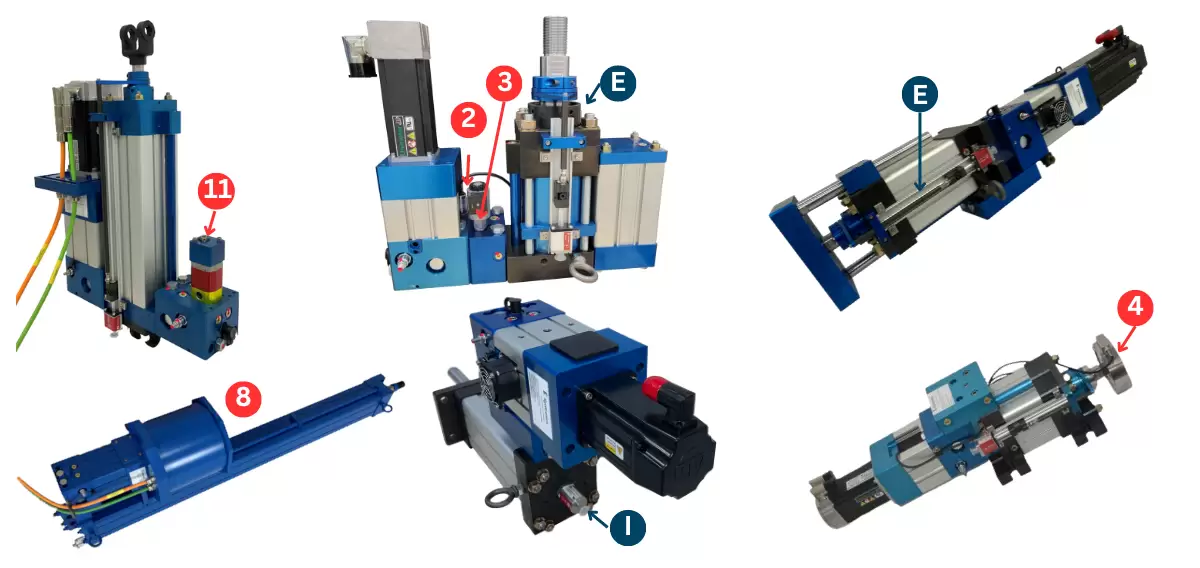

S-Series Actuator Optional Features:

  1. Standard or High-Resolution Position Sensor – External E or Internal I Mounted
  2. Pressure Sensor for Force Measurement and Control
  3. Solenoid Lock
  4. Load Cell Interface
  5. Food Grade Fluid
  6. Fire Resistant Fluid
  7. IP67, IP68, IP69k packaging
  8. Special Coatings
  9. Explosion Proof: Class 1 Div 1 / Div II
  10. Supplemental Heating or Cooling
  11. Manual Backup Operation

 S Series Actuator Only Design Optional Features
