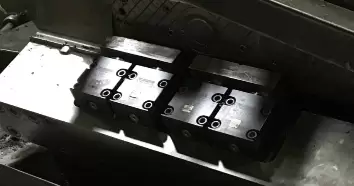

Metal Blade Grinding – Work Holding Clamp

Challenge

A customer wanted to remove all hydraulics from a machine that had an existing large HPU that controlled multiple cylinders. They had reliability issues with leaks and environmental concerns.

Kyntronics Solution

• Multi-axis for 2 total machines (1 SPU and 1 Kyntronics Actuator on each)
• 1 Servo Power Unit controls 4 total clamping cylinders
• SPU: 3500 PSI and 4 GPM

Customer Benefit

• Environmentally friendly sustainable solution
• Customer supplied motor and drive for standardization amongst their facility
• Removed hydraulics that were causing downtime and maintenance

Application Requirements

• Stroke: 1"
• Speed: 3 in/sec
• Force: 1,400 - 6,000 lbf

Industries

• Metals / Metal Fabrication
