Painting Conveyor Lift System

Challenge

A tier-one automotive supplier had issues with synchronizing a pneumatic actuator system. They required lifting actuators that could be accurately positioned within 0.010” across the four posts of the lifting platform. They couldn’t use screw-type EMAs due to shock loading and traditional hydraulics were difficult to synchronize and leaked creating maintenance headaches.

Kyntronics Solution

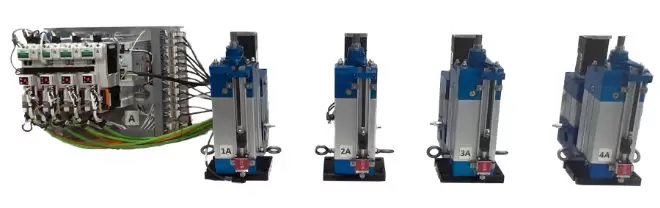

• All-electric, all-in-one lifting actuators
• Improved process control – using Position and Force control
• 4 axis synchronization

Customer Benefit

• Achieved desired synchronization specs (+/-.010”)
• No binding on lift system
• Easy integration into existing design

Application Requirements

• Stroke: 5"
• Speed: 3.5 in/sec
• Force: 1,000 lbf ea

Industries

• Automotive
