Roll Handling Lift – Plastic & Rubber Material

Challenge

A roll handling machine OEM required a pair of lifting actuators that could be synchronized to within 0.050” positional accuracy. The end user had issues with an existing hydraulic system that was having a difficult time synchronizing two units that were guiding a roll while maintaining tension on the material.

Kyntronics Solution

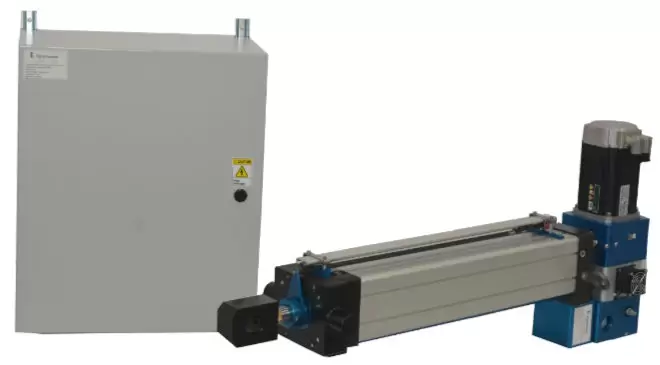

• Two all-electric, all-in-one lifting actuators (one on each side) with synchronized operation
• Precise synchronization +/-0.050in
• Fieldbus integration

Customer Benefit

• All-in-one solution
• Accurate positioning / synchronization
• Easy integration into an existing piece of machinery with minor modifications

Application Requirements

• Stroke: 22"
• Speed: 1.2 in/sec
• Force: 16,000 lbf

Industries

• Plastic & Rubber
• Converting
• Corrugated Materials
